Which Parts of a Washing Machine Use Color Coated Steel Sheets

Washing machines are indispensable household appliances. Most of their outer casings and internal components are made of steel, and color-coated steel has become an essential core material in washing machine production due to its excellent corrosion resistance, formability, and decorative properties.

Taking into account the overall structure of the washing machine, as well as its operating environment and working conditions, various exterior and protective components utilize color-coated steel sheets of different specifications and manufacturing processes. Let’s explore with the author which parts of a washing machine use color-coated steel.

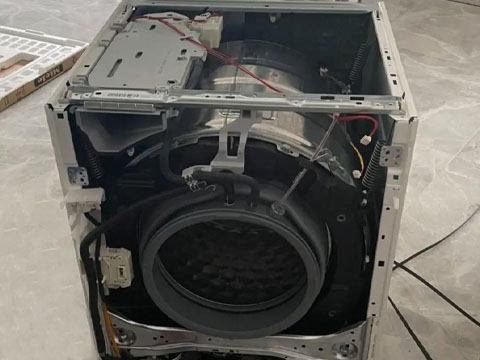

Where in a washing machine are color-coated steel sheets used?

Component Name	Core Function	Material Logic and Selection Criteria

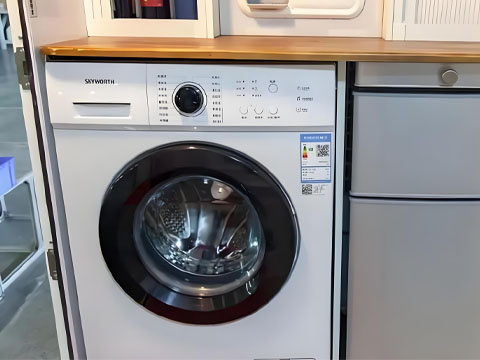

Outer Shell, Cabinet	Determines the overall visual style of the machine and is the area using the most color steel plates.	Color-coated steel sheets in colors such as white, silver, and black are commonly used; this eliminates the need for painting, allowing for direct stamping and forming, resulting in an attractive appearance immediately after forming.
Top Cover, Control Panel	This area is where users directly contact and frequently operate the machine, requiring a balance between feel and durability.	VCM steel is frequently used, and by laminating PET/PVC film, it achieves high-end textures such as brushed metal, pearlescent, and high-gloss finishes.
Back Panel, Bottom Panel	This structural load-bearing component needs excellent corrosion resistance.	Hot-dip galvanized or galvalume color-coated steel sheets with thicker base metal coatings are typically selected to withstand challenges such as humidity and corrosion from cleaning agents in washing environments.
Side Panels, Surrounding Panels	Connecting the front and rear sections, it forms the main body of the casing, demanding high-quality molding processes.	This area often features curved or complex bends, requiring color-coated steel sheets to possess excellent formability to prevent coating cracking or the formation of stretch marks during stamping.

Why the Washing Machine Industry Favors Color-Coated Steel Sheets

Suitable for the humid operating conditions of washing machines: Washing machines constantly generate moisture and leave behind detergent residue. Color-coated steel sheets feature a complete protective coating that resists moisture and rust. Compared to bare steel sheets, they are less prone to rust and blistering, and are more resistant to aging than plastic.
Higher production efficiency: The substrate has moderate toughness, making it resistant to paint peeling and cracking during bending, stamping, and cutting. This allows for rapid fabrication of machine bodies and decorative panels, making it ideal for automated, high-volume production in washing machine factories.
High Design Flexibility: Available in a variety of textures—including solid colors, brushed, pearlescent, orange peel, and wood grain—as well as RAL color codes. No secondary painting is required; it can be used directly for control panels and door trim, meeting the differentiated design needs of high-, mid-, and low-end washing machines.
Optimized Overall Cost: Lower procurement costs compared to stainless steel sheets; superior to plastic in terms of impact resistance, deformation resistance, and resistance to yellowing; extends the service life of the entire machine; reduces after-sales repair costs associated with shell damage and fading.

What products does Wanzhi Steel offer?

The front panel is the “face” of a washing machine, with the highest demands placed on surface texture, tactile feel, fingerprint resistance, and visual appeal. Using the right steel helps enhance the value of home appliances. To help you quickly find the right solution for your needs, the following table outlines the key parameters and recommended applications for each grade:

Product Tier	Substrate Material	Coating Types	Applications	Key Product Features
General-Purpose Tier	Hot-dip galvanized GI	PE Polyester	Washing machine back panels, standard side panels	Highly versatile and cost-effective, suitable for general indoor environments; thickness range: 0.3–2.0 mm. Coating thickness: 10–35 μm on the top surface, 5–14 μm on the back.
Performance-Enhancing Tier	Aluminum-zinc coated GL	HDP	Washing machine cabinet, base panels	Corrosion resistance improved by 3–6 times; higher hardness, resistant to detergent wiping.
High-End Differentiated Solutions	Cold-rolled steel SPCC/Hot-dip galvanized GI	PVC/PET Laminate	Top cover, control panel, high-end front door panels	VCM-Coated Steel: Features realistic textures such as brushed metal, wood grain, and marble, with a smooth, refined feel; excellent scratch resistance. Thickness: 0.3–1.2 mm.
Function-Specific Solutions	Hot-dip galvanized GI	Antibacterial/Self-Cleaning Coating	Washing machine interior components, high-end outer casing	Antibacterial Coated Color-Coated Steel: Achieves an antibacterial rate of over 99%, suitable for humid environments like washing machines where bacteria easily proliferate. Self-Cleaning Coated Color-Coated Steel: Combines fingerprint-resistant and stain-resistant properties. Thickness: 0.12–2.0 mm.

If you have any questions about our steel products or specific application needs, please feel free to contact us at any time.

How to Choose the Most Suitable Color-Coated Steel Sheet

Identify the Component’s Application: First, determine whether you need to manufacture a front door panel, side panel, or floor panel. Different parts have vastly different requirements for material thickness, corrosion resistance rating, and appearance.
Consider Processing Requirements: For components requiring complex stamping, deep drawing, or severe bending, be sure to discuss key processing metrics with us—such as T-bend performance and reverse impact values—to ensure the coating does not crack after forming.
Pursue Differentiated Design: If your goal is to target the high-end market, we offer VCM-coated steel, as well as a range of aesthetic solutions including brushed metal, pearlescent effects, and custom embossing. Visit our laminated coated steel sheet page.

Wanzhi Steel Color Coated Steel Production Line — Wanzhi Color Coated Steel Production Line

Wanzhi Steel Galvanized Steel Production Line

Wanzhi Steel: Professional Supplier of Steel for Home Appliances

Full-chain production with controlled quality: We operate 8 in-house production lines, including 2 galvanizing lines, 2 color-coated lines, 1 galvanized-aluminum line, and 1 ZAM coating line, covering most steel grades used in home appliances.
Comprehensive Certifications: Our products hold international certifications including ISO, CE, and SGS. Our business spans over 120 countries, and we have been reliably supplying home appliance clients in Nigeria, Chile, the UAE, Russia, Lebanon, and many other nations.
Strong Customization Capabilities: We support customization of sheet coating types, surface textures, colors, lamination processes, lengths, and widths. We provide tailored material solutions based on the operating conditions of different washing machine components, handling everything from small-batch samples (10–25 tons) to large-scale mass production.
Extensive Experience: With years of deep expertise in the home appliance steel sector, we have a thorough understanding of material challenges in appliances such as washing machines and refrigerators. We optimize sheet performance by integrating with washing machine stamping, bending, and assembly processes to reduce processing waste for our customers.

With over 15 years of production and export experience, coupled with our deep expertise in the home appliance industry, Wanzhi Steel has established itself as a stable and reliable long-term steel partner for home appliance manufacturers. For sample requests, custom specifications, or bulk pricing inquiries, please contact us for more details.
