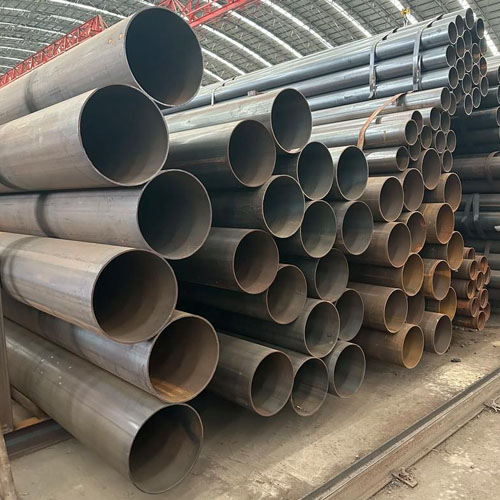

Seamless Steel Pipe
Introduction
Seamless steel pipe is a hollow steel made by perforating and rolling solid steel billet. There is no welding process in the whole process, including hot-rolled seamless steel pipe and cold-rolled seamless steel pipe. It is widely used in various fields because of its characteristics of no welds, high strength and pressure resistance, and wide applicability.
Table of Contents
- Seamless Steel Pipe Specifications
- Seamless Steel Pipe Application
- Seamless Steel Pipe Manufacturing Process
- Features of Seamless Steel Pipe
- Hot-rolled Seamless Steel Pipe vs Cold-drawn Seamless Steel Pipe
- Calculation of Seamless Steel Pipe Weight
- Why Choose Us

Seamless Steel Pipe Specifications
| Product Name | Seamless Steel Pipe |
| Outer Diameter | 6mm – 965mm |
| Wall Thickness | 1.65mm – 30mm |
| Length | 2m, 3m, 6m, 9m, 12m or cut according to customer requirements |
| Material | Carbon steel (Q345, 20#, 45#), stainless steel (304, 316), etc. |
| Standard | GB/T, ASTM, API, DIN, JIS, etc. |
| Surface State | Pickling (removing oxide scale), cold drawing (bright surface), galvanizing (anti-corrosion), etc. |

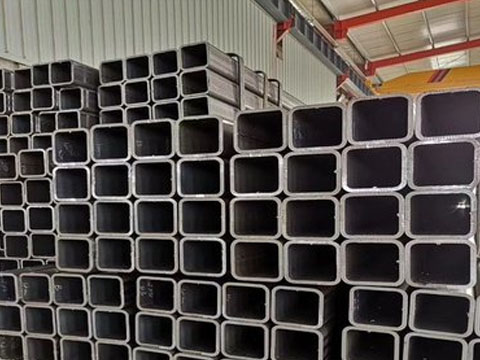

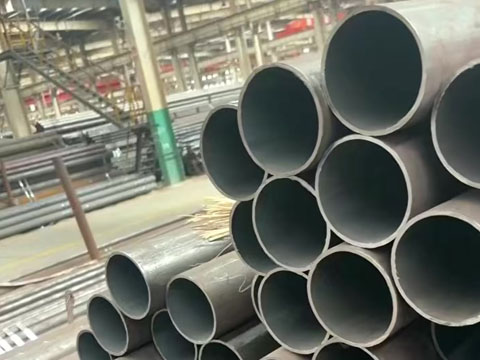

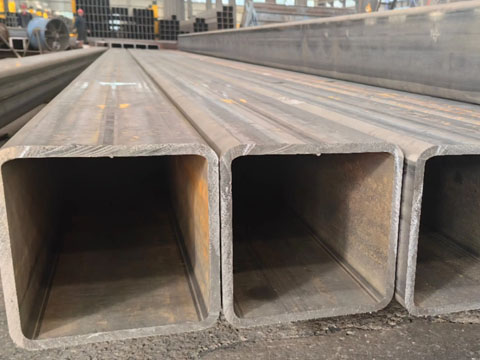

| Shape | round tube, square tube, rectangular tube, special-shaped tube |
| Technology | Hot rolling, cold drawing |
| Processing Service | Welding, punching, cutting, etc. |
| MOQ | 5 Tons |
| Packing | Standard export packing or as required |
API ASTM JIS DIN EN GB Seamless Steel Pipe Size
| Nominal Pipe Diameter | Outer Diameter | Nominal Wall Thickness | |||||||||
| Inch | DN | OD | SCH5s | SCH10s | SCH40s | STD | SCH40 | SCH80s | XS | SCH80 | XXS |
| 1/8 | 6 | 10.3 | — | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | — |
| 1/4 | 8 | 13.7 | — | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | — |
| 3/8 | 10 | 17.1 | — | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | — |
| 1/2 | 15 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 7.47 |
| 3/4 | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 7.82 |
| 1 | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 9.09 |
| 1 1/4 | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 9.7 |
| 1 1/2 | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 10.15 |
| 2 | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 11.07 |
| 2 1/2 | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 14.02 |
| 3 | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 15.24 |
| 3 1/2 | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | — |
| 4 | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 17.12 |
| 5 | 125 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 19.05 |
| 6 | 150 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 21.95 |
| 8 | 200 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 12.7 | 22.23 |
| 10 | 250 | 273.1 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 25.4 |
| 12 | 300 | 323.9 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 12.7 | 12.7 | 17.48 | 25.4 |
| 14 | 350 | 355.6 | 3.96 | 4.78 | — | 9.53 | 11.13 | — | 12.7 | 19.05 | — |
| 16 | 400 | 406.4 | 4.19 | 4.78 | — | 9.53 | 12.7 | — | 12.7 | 21.44 | — |
| 18 | 450 | 457.2 | 4.19 | 4.78 | — | 9.53 | 14.27 | — | 12.7 | 23.83 | — |
| 20 | 500 | 508 | 4.78 | 5.54 | — | 9.53 | 15.09 | — | 12.7 | 26.19 | — |
| 22 | 550 | 558.8 | 4.78 | 5.54 | — | 9.53 | — | — | 12.7 | 28.58 | — |
| 24 | 600 | 609.6 | 5.54 | 6.35 | — | 9.53 | 17.48 | — | 12.7 | 30.96 | — |
| 26 | 650 | 660.4 | — | — | — | 9.53 | — | — | 12.7 | — | — |
| 28 | 700 | 711.2 | — | — | — | 9.53 | — | — | 12.7 | — | — |
| 30 | 750 | 762 | 6.35 | 7.92 | — | 9.53 | 17.48 | — | 12.7 | — | — |
| 32 | 800 | 812.8 | — | — | — | 9.53 | 17.48 | — | 12.7 | — | — |
| 34 | 850 | 863.6 | — | — | — | 9.53 | 17.48 | — | 12.7 | — | — |
| 36 | 900 | 914.4 | — | — | — | 9.53 | — | — | 12.7 | — | — |
| 38 | 950 | 965.2 | — | — | — | — | — | — | — | — | — |
Seamless Steel Pipe Application

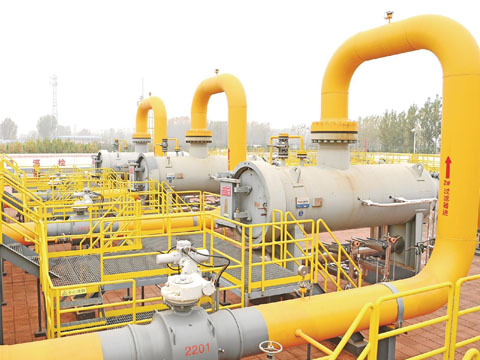

- Oil/gas: drill pipe, casing, oil pipeline, cracking furnace pipe, hydrogenation reactor pipe, etc.

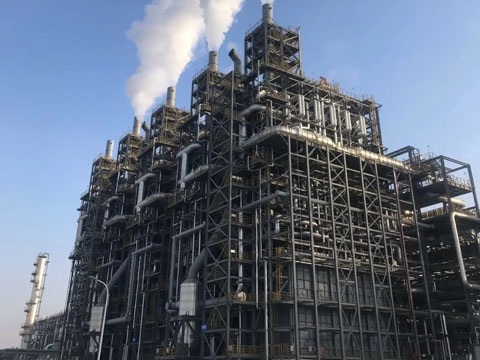

- Chemical equipment: reactor, heat exchanger pipe, corrosion-resistant pipe, etc.
- Power industry: high-pressure boiler pipe, superheater pipe, high-pressure steam pipe, power station pipe, etc.
- Machinery manufacturing: hydraulic cylinder, bearing, transmission shaft, exhaust pipe, precision instrument pipe, automobile gearbox gear shaft, etc.
- Building structure: steel structure pillar, bridge load-bearing components, curtain wall support frame (special-shaped pipe such as square pipe), medium and low pressure transmission pipeline for municipal water supply/heating.
- Metallurgical and mining industry: high-pressure oil pipes and wear-resistant conveying pipes for mining machinery, cooling water pipes and high-temperature flue gas pipes in metallurgical equipment.

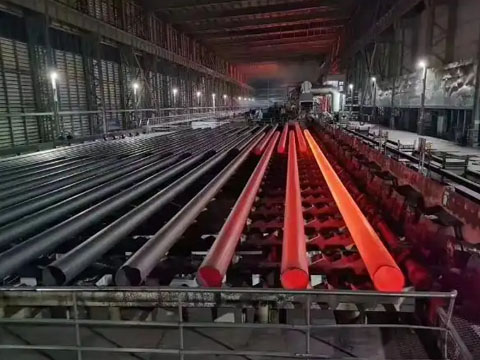

Seamless Steel Pipe Manufacturing Process
- The core process of hot-rolled seamless steel pipe: heating of tube billet → perforation → rolling → sizing → cooling → finishing
- The core process of cold-drawn seamless steel pipe: tube billet preparation → pickling → cold rolling (cold drawing) → heat treatment → finishing

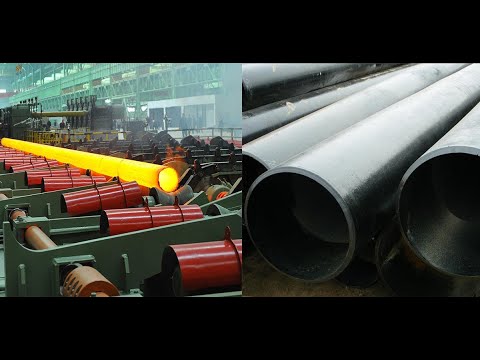

Production Video
Features of Seamless Steel Pipe
- No welds, high strength: The entire pipe is formed in one piece, without welds, so it can withstand higher pressure and impact, avoiding the risk of cracking.
- Various sizes, strong adaptability: The diameter and thickness range of seamless steel pipes are relatively wide, which can meet the needs of various scenarios.
- Controllable precision: Especially the seamless steel pipes produced by cold drawing process, the size error is very small, the surface is smooth, and it is suitable for scenes with high precision requirements.
- Resistant to heat and pressure, suitable for extreme environments: It can adapt to complex environments such as high temperature (such as boiler pipes), low temperature (such as refrigeration equipment) and corrosion (chemical pipelines).



Hot-rolled Seamless Steel Pipe vs Cold-drawn Seamless Steel Pipe
| Comparison items | Hot-rolled seamless steel pipe | Cold drawn seamless steel pipe |
| Production process | High temperature perforation + hot rolling forming | Hot rolled tube + cold drawing/cold rolling finishing |
| Temperature | 1200℃ high temperature processing | Normal temperature processing |
| Surface quality | With oxide scale (need pickling) | Smooth surface (can be used directly) |
| Dimensional accuracy | Low (±0.5mm) | High precision (±0.05mm) |
| Wall thickness uniformity | General | Extremely uniform |
| Mechanical properties | Low strength | Strength increased by more than 30% (cold work hardening) |
| Production cost | Low | High (multiple finishing) |
| Production speed | Fast (suitable for large quantities, large pipes, thick-walled pipes) | Slow (suitable for small batches, small tubes, precision tubes) |
| Typical specifications | Φ25-1200mm | Φ6-160mm |
| Main uses | Oil pipeline/building structure | Hydraulic cylinder/precision mechanical parts |
Calculation of Seamless Steel Pipe Weight
1. Calculation formula for round steel pipe weight
Weight (kg/m) = (outer diameter – wall thickness) × wall thickness × coefficient
- Carbon steel: coefficient is 0.02466 (density 7.85g/cm³)
- Stainless steel: coefficient is 0.02491 (density 7.93g/cm³)
2. Calculation formula for square steel pipe weight
Weight (kg/m) = (side length × 4 – wall thickness × 4) × wall thickness × 0.00793
3. Calculation formula for rectangular pipe weight
Weight (kg/m) = [(length + width) × 2 – wall thickness × 4] × wall thickness × 0.00793
In order to provide convenience to customers, we provide a metal pipe weight calculator, you can enter our metal pipe weight calculator page for calculation.


Why Choose Us
- Excellent quality: Select high-quality steel billets, use advanced hot rolling/cold drawing technology, and conduct quality inspection throughout the entire process to ensure no defects and stable mechanical properties.
- Complete specifications: Covering 6mm-1200mm outer diameter, wall thickness 0.5mm-100mm, carbon steel, stainless steel and other materials are complete, and special-shaped pipes are supported.

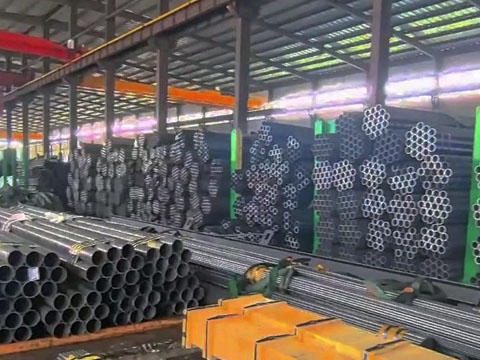

- Efficient delivery: With high-capacity production lines, regular specifications are in sufficient stock, and value-added services such as cutting, straightening, and surface treatment can be provided to shorten the delivery cycle.
- Complete qualifications: Passed ISO 9001 and ISO 14001 certifications, with a mature supply chain system, services cover global customers, and worry-free from order to after-sales.
Wanzhi Steel is a leading steel pipe supplier in China. In addition to seamless steel pipes, it also supplies spiral welded pipes, straight seam welded pipes, and stainless steel pipes. With 17+ years of production experience and 14+ years of export experience, we can provide you with the best solution.
