Galvanized Pipe

Galvanized Pipe specifications

Product Name	Galvanized Pipes
Material	Q195, Q215, Q235, etc
Shape	Round, Square, Rectangular.
Surface	Hot-dip galvanizing
Size	1/2–12 inch
Wall Thickness	0.5–10 mm
Length	6m / 12m or as required
Zinc Coating	30 – 275g/㎡
Processing Service	Welding, punching, cutting, bending, etc.

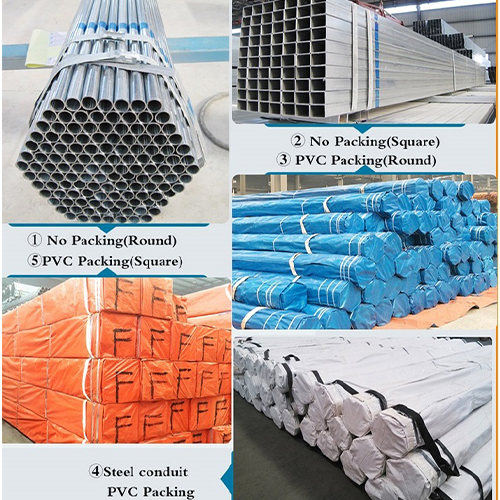

Packing	Standard export packing or as required

Application of Galvanized Pipe

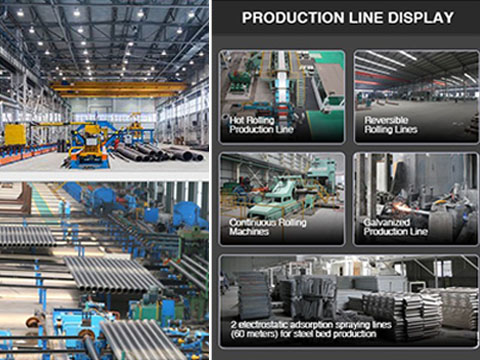

Galvanized Pipe Manufacturing Process

Preparation Before Galvanizing

• Raw material preparation: Use black pipe steel as raw material, and the material meets the production requirements of galvanized steel pipes (Q215, Q235, etc ).
• Steel pipe forming: Hot-roll the round steel and perforate it, and then cold-roll the hot-rolled perforated thick rough pipe.
• Surface pre-cleaning: The cold-rolled thick steel pipe is subjected to alkali washing, pickling, water washing, immersion in additives, drying and other operations.

Hot-dip Galvanizing

• Preheating: In order to ensure the galvanizing effect, the pre-treated steel pipe is sent to the preheating furnace for preheating.
• Galvanizing: The preheated steel pipe is immersed in molten zinc liquid for galvanizing.

Post-galvanizing Treatment

• External blowing: Through external blowing, the excess zinc liquid on the surface is blown away to obtain a smooth appearance.
• Internal blowing: Internal blowing can remove the excess zinc liquid on the inner surface of the steel pipe.
• Water cooling: Move the steel pipe into the water cooling tank for cooling to ensure that the zinc layer on the surface of the steel pipe can solidify and solidify.
• Passivation: The finished galvanized steel is passivated to improve the corrosion resistance of the steel pipe.

Advantages of Galvanized Pipe

1. Excellent corrosion resistance: The galvanized layer on the surface of the galvanized steel pipe can isolate the steel pipe from the external corrosive medium and effectively prevent the corrosion of the steel pipe.
2. Long service life: Due to the excellent corrosion resistance of the galvanized pipe, its service life is greatly improved, and it can maintain a long service life even in harsh environments such as humidity and corrosion.
3. Good processing performance: Galvanized steel pipes are easy to cut, bend, weld and other processing operations, and can be made into various shapes and sizes according to the use requirements of different projects.
4. Good mechanical properties: Galvanized steel pipes have good mechanical properties such as strength, rigidity, and toughness, and can withstand greater pressure and tension. Not easy to deform or break.
5. Beautiful appearance: The surface galvanized layer of the galvanized steel pipe is uniform, smooth and flat, beautiful in appearance, and has a certain decorative effect.

Stock Products

Below are the products that are always in stock. Click on the product link in the table to view the specific specifications of galvanized steel pipes. If you can’t find the product you need in the table, please send an email or leave a message to tell us your project requirements.

Product Name	Nominal Diameter	Outer Diameter(mm)	Wall Thickness(mm)	Length(mm)
1/2 inch galvanized steel pipe	DN15	21.3	2.45 – 2.8	6m / 12m
3/4 inch galvanized steel pipe	DN20	26.9	2.45 – 2.8	6m / 12m
1 inch galvanized steel pipe	DN25	33.7	2.8 – 3.2	6m / 12m
1.25 inch galvanized steel pipe	DN32	42.4	3.06 – 3.5	6m / 12m
1.5 inch galvanized steel pipe	DN40	48.3	3.06 – 3.5	6m / 12m
2 inch galvanized steel pipe	DN50	60.3	3.325 – 4	6m / 12m
2.5 inch galvanized steel pipe	DN65	76.1	3.5 – 4	6m / 12m
3 inch galvanized steel pipe	DN80	88.9	4	6m / 12m
4 inch galvanized steel pipe	DN100	114.3	4	6m / 12m
5 inch galvanized steel pipe	DN125	140	4.5	6m / 12m
6 inch galvanized steel pipe	DN150	168.3	4.5	6m / 12m
8 inch galvanized steel pipe	DN200	219.1	6	6m / 12m

Galvanized Pipe Weight Calculation Formula

W=0.0246615*(D－S)×S×L

• W represents the weight of the galvanized pipe in kilograms (kg);
• D represents the outer diameter of the galvanized pipe in millimeters (mm);
• S represents the wall thickness of the galvanized pipe in millimeters (mm);
• L represents the length of the galvanized pipe in meters (m).

For example, the weight of a galvanized steel pipe with an outer diameter of 48.3mm, a wall thickness of 3.5mm, and a length of 6m = 0.0246615×(48.3－3.5)×3.5×6=23.2015392kg

Why Choose Us

• Experienced: With more than 13 years of export experience, serving more than 120 countries, the company has passed ISO 9001:2015 certification.
• Complete Specifications: We can provide you with galvanized pipes of various specifications, and can provide cutting, bending, welding and other processing services.
• Quality Assurance: We will conduct appearance, galvanizing, corrosion resistance, mechanical properties and other tests to ensure the quality of galvanized pipe products.
• On-time Delivery: We have common specifications in stock, sufficient inventory, sufficient production capacity, and can complete delivery on time.
• Perfect Service: The service team is perfect, with English, Russian, and Spanish customer service, perfectly solving pre-sales and after-sales problems.

Wanzhi Steel has a complete supply chain for galvanized steel products. The galvanized pipe factory is located in Hebei, China. It can provide you with galvanized steel pipes of various specifications and provide you with free samples. If you have purchasing needs, you are welcome to contact us at any time.
