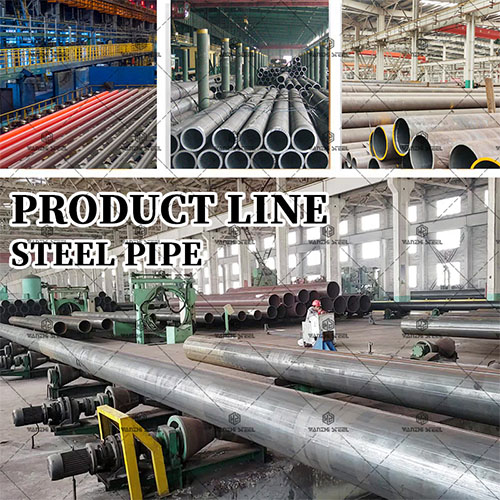

Spiral welded pipe

Specifications of Spiral Welded Pipe

Product Name	Spiral Welded Pipe
Wall Thickness	5.2mm – 30mm
Length	5.5m, 5.8m, 6m, 11.8m, 12m or as required
Outer Diameter	219mm – 3800mm (DN200-DN3800mm)
Tolerance	Wall thickness:±0.05mm; Length:±6mm; Diameter:±0.3mm
Technique	Hot Rolled
Surface Treatment	1.Galvanized, 2.PVC, black and color spray paint 3.Transparent oil, anti-rust oil 4.According to customer requirements
Material	Carbon steel: Q235B, Q345B, etc.
	Pipeline steel: API 5L Gr.B, X42, X52, X60, X65, X70, X80, etc.
	Stainless steel: 304, 316, etc.
Standard	GB,ASTM,EN
MOQ	10 tons
Packing	Standard export packing or as required

Spiral Welded Pipe Application

Spiral welded pipes are widely used in the following fields due to their high strength, stable welding performance, large diameter, and economy:

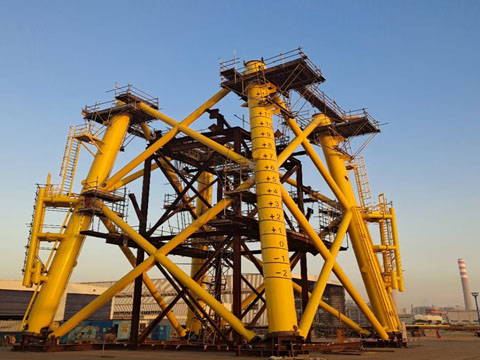

• Oil and natural gas transportation: as long-distance oil/gas pipelines, internal gathering and transportation pipelines in oil/gas fields, submarine pipelines, etc.
• Water supply and drainage engineering: used for water diversion pipelines, drainage pipes, irrigation pipelines, sewage treatment pipelines, etc.
• Construction engineering: as piling pipes, structural pipes, support pipes for tunnels/bridges, etc.

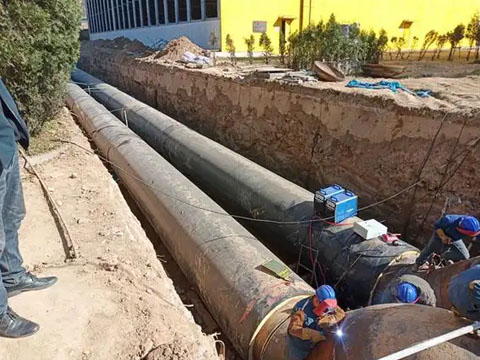

• Heating engineering: used for centralized heating pipeline systems.
• Chemical and power industries: as chemical fluid transportation pipelines, power plant pipelines, mining pipelines, etc.

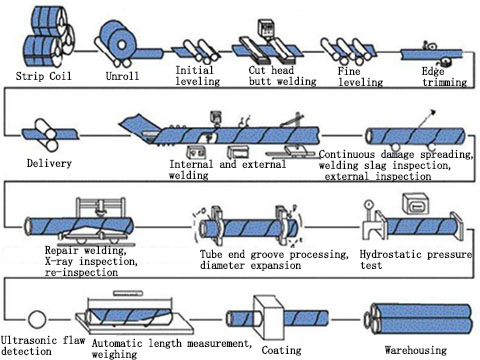

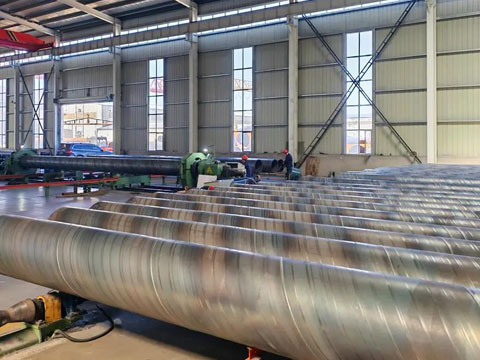

Spiral Welded Pipe Production Process

1. Raw material preparation: Prepare the three raw materials of strip steel coil, welding wire and flux that have been inspected.
2. Pretreatment: Clean the surface of the strip steel coil, and perform pretreatment such as uncoiling, leveling, shearing and butting.
3. Forming: Feed the strip steel coil into the forming machine, and roll it into a tube blank at a certain spiral angle through the action of multiple sets of rollers.
4. Welding: Submerged arc welding is commonly used for welding, and high-frequency welding is used for some small-diameter or thin-walled pipes. After welding, remove the surface welding slag and check the appearance.
5. Dimension and quality inspection: including pipe diameter and roundness inspection, weld non-destructive inspection, and pressure test.
6. Cutting: Cut to size according to the required length, and grind the incision flat.
7. Anti-corrosion treatment: including 3PE anti-corrosion, epoxy coal tar anti-corrosion, galvanized coating anti-corrosion, etc.

Weight of Spiral Welded Pipe

RoundCalculation Formula

W=0.02466×(D−S)×S

W=theoretical weight (kg/m), D=outer diameter of steel pipe (mm), S=wall thickness of steel pipe (mm), 0.02466=constant (derived from the density of steel 7.85g/cm³).

Weight of Spiral Welded Pipe Per Meter

Nominal outer diameter(mm)	Noninal Wall Thickmess(mm)
	5	5.5	6	7	8	9	10	11	12	13	14	15	16	18	20
	Weight per meter (kg)
273	33.04	36.28	39.51	45.92
324	39.32	43.18	47.04	54.7	62.32	69.89
325	39.46	43.33	47.26	54.9	62.54	70.13
356	43.23	47.48	51.73	60.18	68.57	76.92
377	45.88	50.39	54.89	63.87	72.8	81.67
406	49.44	54.32	59.24	68.94	78.6	88.2	97.75
426	51.91	57.03	62.14	72.33	82.46	92.55	102.59
457	55.73	61.24	66.73	77.69	88.58	99.43	110.23	120.98	131.6	142.34
508			74.28	86.48	98.64	110.75	122.81	134.82	146.78	158.69
529			77.38	90.11	102.78	115.41	127.99	140.51	152.99	165.42
559			81.82	95.29	108.7	122.07	135.38	148.65	161.87	175.04
610			89.37	104.09	118.76	133.39	147.96	162.48	176.96	191.39
630			92.33	107.54	122.71	137.82	152.89	167.91	182.88	197.8
660			96.77	112.72	128.63	144.48	160.29	176.05	191.76	207.42
711			104.31	121.52	138.69	155.8	172.87	189.88	206.85	223.76
720			105.64	123.08	140.46	157.8	175.09	192.32	209.51	226.65
762				130.33	148.75	167.12	185.44	203.72	221.94	240.11	258.24
813				139.13	158.81	178.44	198.02	217.55	237.03	256.46	278.88
820				140.34	160.19	179.99	199.75	219.45	239.1	258.71	276.26	297.77	317.23	355.99	394.58
914					178.74	200.06	222.93	244.95	266.92	288.84	310.72	332.54	354.31	397.74	440.95
920					179.92	202.19	224.41	246.58	268.7	290.77	312.79	334.76	356.68	400.4	443.91
1016					198.86	223.49	248.08	272.62	297.1	321.54	345.93	370.27	394.56	443.02	491.26
1020					199.65	224.38	249.07	273.7	298.39	322.82	347.31	371.75	396.14	455.66	493.23
1220							296.39	327.95	357.47	386.94	416.36	445.73	475.58	533.58	591.88
1420							347.71	362.21	416.66	451.06	485.41	519.71	553.96	622.36	690.52
1620							397.03	436.46	475.84	515.17	554.46	593.6	632.87	711.14	789.17
1820							446.35	490.71	535.02	579.29	623.5	667.67	711.79	799.92	887.81
2020							495.67	544.96	594.21	643.4	692.55	741.65	796.7	888.7	986.46
2220							544.99	599.21	653.39	707.52	761.6	815.63	869.61	977.48	1085.11
2420							594.34	635.5	712.62	771.62	830.2	889.66	948.6	1066.26	1183.75

Spiral Welded Pipe Price

The price of spiral welded pipe is affected by factors such as material, specification, anti-corrosion requirements, raw material price, order quantity, tax rate, etc., and there will be certain differences in price. The price of 1 ton of spiral welded pipe is between US$500-1000.

This price is just a reference price. If you want accurate price information, you can tell us the material, specification, quantity and other information of the spiral welded pipe, and we will reply with the most competitive price as soon as possible.

Why Choose Us

• Quality assurance: strictly select high-quality raw materials, use double-wire submerged arc welding technology, full-item testing (UT/RT flaw detection, water pressure test, etc.), and high weld qualification rate.
• Full specifications: wide range of diameters and wall thicknesses, wide material coverage, and support customization according to customer needs.
• Fast delivery: direct supply of steel raw materials, high production capacity, sufficient inventory, and fast delivery. Provide welding, punching, cutting and other services.
• Experienced: With more than 17 years of production experience and 14 years of export experience, we can provide the best solution for your project.

Wanzhi Steel is a professional steel pipe supplier in China, certified by ISO 9001, ISO 14001, etc., serving industries including construction, home appliances, solar energy, highway engineering, agricultural greenhouses, etc., with a complete and mature supply chain. If you have steel needs in these industries, please contact us.
