RAL 7001 Color Steel Coil
RAL 7001 (Silver Gray) is a neutral, medium-tone gray with a subtle cool metallic finish. The final appearance on steel depends on the coating system, gloss level, and the surface texture of the substrate. We supply RAL 7001 PPGI steel and RAL 7001 PPGL steel in a variety of forms, including coils, strips, flat sheets, and corrugated sheets.
Ensure product quality and transportation
Product Specifications
| Parameter | Available Range |
| Available products | RAL 7001 PPGI Coil / RAL 7001 PPGL Coil |
| Thickness | 0.12 – 1.2 mm, tolerance per standard |
| Width | 600 – 1250 mm, slitting available |
| Coating | Z: 30-275g/m²; AZ: 30-150g/m² |
| Length | Custom cut to length |
| Base metal | Cold-rolled (CR), hot-dip galvanized (GI), galvalume (GL) |
| Substrate grade | DX51D, DX52D, DX53D, S250, S350GD, S550GD, SGCC, A653, etc. |
| Paint Coating system | PE, HDP, PVDF |
| Coating structure | 2/1 (two coatings, one baking), 2/2 (two coatings, two baking) |
| Gloss | Matte to high gloss, per your spec |
| Standards | GB, ASTM A755, EN, JIS, DIN |
| Coil weight | 3 – 8 tons, inner diameter 508/610 mm |
| MOQ | 10 tons |
| Certification | ISO 9001, ISO 14001, CE, SGS |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |

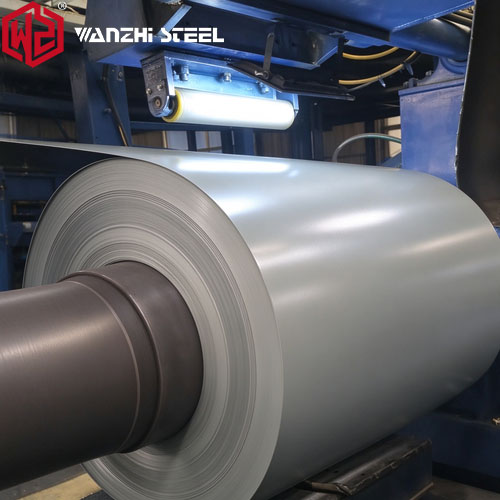

The following is of RAL7001 ppgi steel coils that we recently produced for our customers
Key Features of RAL 7001 Color-Coated Coils
- Heat-Resistant Gray Tone: Reflects more solar radiation than darker colors, reducing heat buildup on roofs and exterior walls.
- Neutral and Low-Maintenance: The shade resists showing dirt, maintaining a clean, professional appearance on large surfaces.
- Consistent Color Across Batches: We coat and monitor production on our in-house production lines to ensure consistent color across coils.
- Coatings Matched to Operating Conditions: PE is economical; HDP offers enhanced weather resistance; PVDF is suitable for harsh or coastal environments.
Common Applications of RAL 7001 Pre-painted Steel Coils
- Construction and Steel Structures: Metal roofing, exterior wall panels, steel-frame industrial buildings, and warehouse structures.
- Home Appliances and Industrial Applications: Side panels, door panels, and outer casings for white goods; equipment cabinets and HVAC components.
- Furniture and Other Applications: Doors for tall cabinets, shelving units, lamp reflectors, and decorative trim for vehicles or equipment.
Why Choose Us?
We are a manufacturer, not a trading company. With over 15 years of experience in production and export, we operate our own color coating line and testing center. Every batch undergoes rigorous testing for color stability, coating adhesion, and film thickness.
In addition to supplying pre-coated steel coils, we also have slitting lines, cutting lines, and forming equipment, so if you need color-coated steel strips or sheets, we can supply those as well.
FAQ About RAL 7001 Pre painted Steel
Can you match the gloss and film thickness I specify?
Yes. Gloss and film thickness are specified in the technical agreement prior to production and verified for each batch of pre-painted steel coils.
How do you ensure color consistency between batches?
We have our own production lines. Colors are matched against RAL standards and verified against approved reference samples on our in-house production lines.
Do you provide SGS test reports?
We can provide them for orders that meet a certain quantity threshold (e.g., over 500 metric tons). We can provide third-party SGS test reports prior to large orders. View our previously approved SGS reports.
What is the lead time?
It depends on the coating system and quantity. Once the specifications are confirmed, we will provide a confirmed lead time along with the quote.
Contact Us for a Quote on RAL 7001 Color Steel Coils
Please provide your substrate, thickness, width, coating system, and quantity, and our export team will confirm the price and delivery time—typically within one business day. Simply email us at info02@wanzhisteel.com or contact us via WhatsApp.
