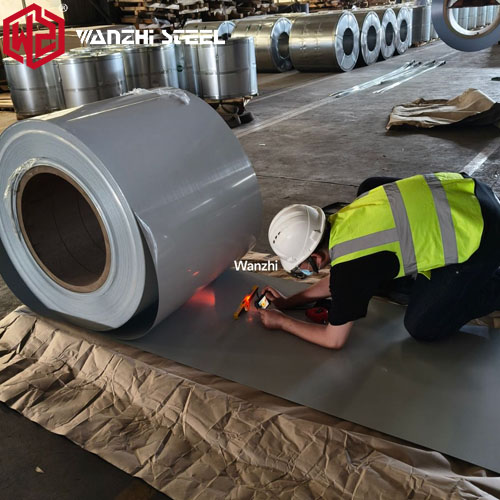

RAL 7030 PPGI

Specification

Parameter	Specification	Notes
Color	RAL 7030 (Stone Grey)	Custom gloss: matte, semi-gloss, full gloss
Base metal	Hot-dip galvanized steel (GI)	Galvalume (GL) available on request
Substrate grade	DX51D, DX52D, SGCC, S250GD, S350GD, S550GD, CS type A/B, etc	Higher grades for deep drawing on request
Topcoat	Polyester (PE), SMP, HDP, PVDF	PE standard; HDP/PVDF for exterior use
Thickness	0.12 – 1.2 mm	Tolerance ±0.02 mm typical
Width	≤ 1250 mm	Slitting to 50 mm min. on request
Zinc coating	30 – 275 g/m²	Sum of Both Sides
Paint thickness	Topcoat 20–25 µm, primer 5–10 µm	Total film builds as specified
Coil inner diameter	508 mm / 610 mm	Other sizes by arrangement
Coil weight	3 – 8 tons	Confirmed at order
Coating method	Reverse roll coating, two-coat-two-bake	Or per project requirement
Standard	GB, EN, JIS, ASTM	Manufactured according to customer standard
MOQ	10 tons	Larger quantities qualify for better pricing
Packaging	Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet)	Packaging can be customized to meet customer needs (available in stand-up pouches and vertical pouches)

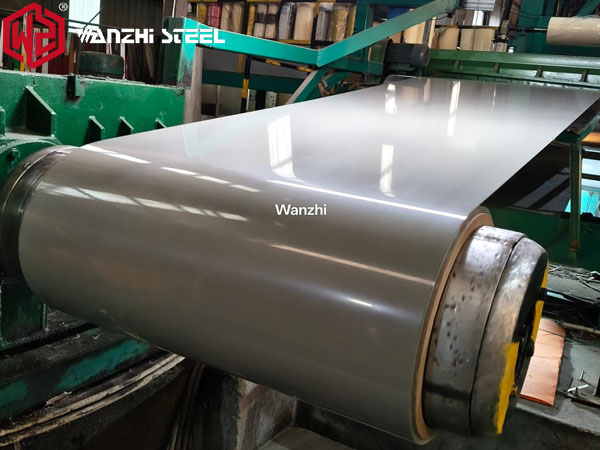

Orange peel texture RAL 7030 color steel coil production

Applications

This gray PPGI coating is highly durable. It is most commonly used on home appliances and also covers many building and electrical panels.

1. Home Appliance Industry: Washing machines, dryers, dishwashers, refrigerators/freezers, water heaters, and small kitchen appliances.
2. Electrical Equipment: Electric meter boxes, distribution panels, control cabinets, etc.
3. Construction Industry: Roofing panels, wall panels, shelving, partitions, etc.

RAL 7030 Advantages

• Dual Protection and Corrosion Resistance: The zinc coating protects the base material, while the surface paint film provides an additional barrier; this dual-layer protection ensures excellent corrosion resistance.
• Good Formability: By selecting base materials of different grades (DX52D, SGCC), the formability of PPGI can be enhanced, ensuring that paint does not peel off on curved corners of home appliances or embossed door panels.
• Fingerprint-Resistant and Anti-Glare: The “stone gray” finish is more stain-resistant than white or glossy black, and its controlled gloss reduces glare under workshop and kitchen lighting.

Our recent collaboration case

Why Choose Us?

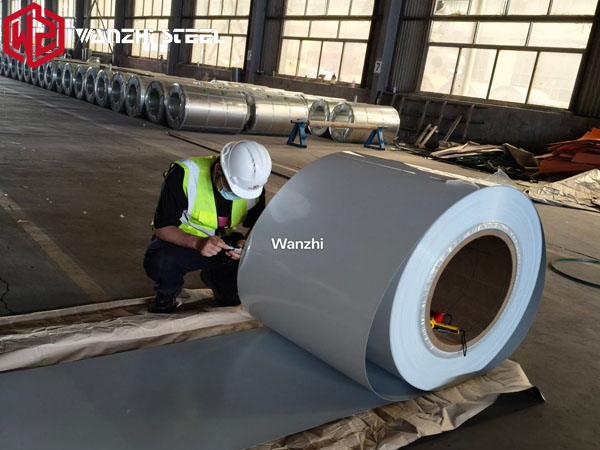

• We have a rigorous inspection process, and the entire process is documented. If you have any concerns, you are welcome to have a third party conduct inspections at our factory.
• We cut, slit, and package products according to customer specifications, and our product quality fully meets customer requirements.
• Standard export packaging protects the edges and paint coating, ensuring the products arrive in perfect condition after long-distance sea transport.
• A dedicated account manager (with over 5 years of experience in the steel industry) will coordinate product specifications, quotations, production schedules, and after-sales service.
• For over 15 years, we have been exporting pre-painted steel coils to home appliance manufacturers, cabinet makers, roofing panel manufacturers, and traders in Central Asia, the Middle East, Africa, South America, and other regions.

We are a leading manufacturer of color-coated steel coils in China. In particular, our PPGI steel products rank among the top 8 companies in the global PPGI market, as recognized by a third-party research firm. We consistently operate with integrity rather than relying on low prices to attract customers, which is why our clients are eager to establish long-term partnerships with us. If you have any needs for color-coated steel coils, please feel free to contact us at any time.
