PE Color Coated Steel
PE color-coated steel refers to steel sheets that are first coated with a base layer and then roll-coated with a polyester (PE) topcoat. The substrate can be cold-rolled steel, hot-dip galvanized steel (PPGI), or aluminum-zinc-coated steel (PPGL). The standard process involves two coats and two bakes, and the film thickness and gloss can be adjusted according to customer requirements.
Ensure product quality and transportation
The PE coating is the most established and economical coating option for color-coated steel sheets. The general structure, from the inside out, is: substrate → surface chemical treatment → primer → polyester topcoat → backcoat. If your application environment involves high humidity, high temperatures, or coastal areas, we recommend using HDP or PVDF color-coated steel.
The PE Color-Coated Steel We Supply
Product Types

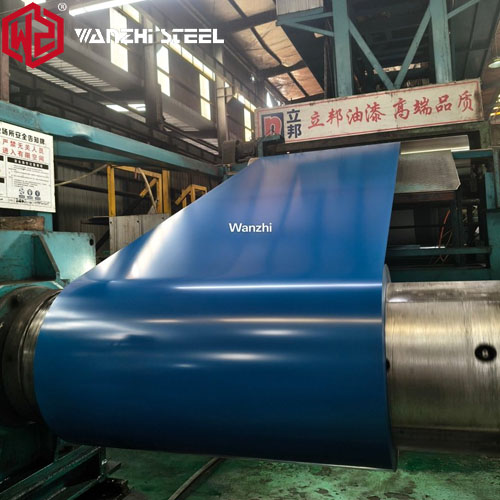

- PE Color-Coated Steel Coils: Shipped in full coils, suitable for high-volume processing; coils can be fed into stamping lines or uncoiled on-site for cutting;
- PE Color-Coated Flat Sheets: Flat sheets cut to fixed lengths, ready for immediate use on construction sites and in workshops;
- PE Color-Coated Corrugated Sheets: Corrugated sheets formed by roll-forming from color-coated coils or flat sheets, primarily used for roofing, wall cladding, and fencing;
- PE Color-Coated Steel Strips: Narrow strips, commonly used in applications requiring continuous feeding, such as door frames, roller shutters, profiles, and edging.
We can provide all of the above types of color-coated steel. Since we have processing equipment for both sheets and strips, your choice depends primarily on your intended use. Once the specifications are finalized, we can schedule production accordingly.
Specifications and Parameters
| Item | Specifications Range |
| Product Type | Color-coated steel coils / flat sheets / corrugated sheets / strips |
| Substrate Type | Cold-rolled substrate (CR), hot-dip galvanized (GI/Z), aluminized zinc (GL/AZ), zinc-aluminum-magnesium (ZAM) |
| Steel Grade | DX51D+Z, DX52D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DX51D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, etc. |
| Nominal Thickness | 0.12~1.2mm (commonly 0.30, 0.35, 0.40, 0.45, 0.50, 0.60) |
| Nominal Width | 600~1250mm (standard 914, 1000, 1200, 1219, 1250, can be slit up to 30mm) |
| Steel Plate Length | ≤12m (sheets) |
| Steel Coil Inner Diameter | 508 / 610mm |
| Coating Weight | Z30~Z275g/m² (GI); AZ30-150g/m² (GL) |
| Paint Coating | PE Polyester Topcoat (Regular) |
| Paint Film Thickness | Film thickness: generally 20-25μm on the front, 5-8μm on the back |
| Color | RAL Color Chart or custom-made according to samples |
| Surface Condition | Glossy / Matte / Embossed / Perforated |
| Processing Performance | Bending, punching, molding, roll forming |
| Usage Environment | Building envelopes, appliance housings, light industrial structures, etc. |
| Standard | GB, EN, JIS, ASTM |
| MOQ | 10 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |
Main Applications of PE-Coated Color-Coated Steel
- The most common application is in construction: roof panels, wall panels, enclosure structures for factories and workshops, and the facings used to manufacture color-coated steel sandwich panels.
- The next most common applications are in home appliances and light industry: outer casings for air conditioners, refrigerators, and washing machines, as well as cabinet bodies, roll-up doors, shelving, ventilation ducts, and office furniture.
Why Choose Us?
- Strict Quality Control: We retain samples from every batch and conduct routine tests, including adhesion (cross-cut/cup impact), pencil hardness, bending, reverse impact, and salt spray resistance.
- High Product Quality: During slitting and leveling, we pay close attention to preventing burrs on cut edges and scratches on the sheet surface; coil ends are kept neat to prevent coils from unrolling during transport.
- Fast Turnaround: We operate two production lines, with delivery times typically ranging from 7 to 15 days, depending primarily on order volume and production scheduling; small-batch orders are fulfilled even faster.
- Trustworthy Company: We are certified under ISO 9001, ISO 45001, CE, and SGS (view our SGS reports).
We are a professional manufacturer of color-coated steel in China with over 15 years of experience. We have partnered with companies in more than 120 countries (you can view our recent project case studies). If you have procurement needs, please send us the specific specifications directly, and we will provide you with a transparent quote based on your requirements.
