1000mm PPGI Coil

Product Specifications

Product Name	Pre-painted galvanized steel coils (PPGI), 1000 mm wide
Substrate	Galvanized steel coils
Substrate Grade	DX51D, DX52D, DX53D, S280GD, S350GD, S550GD, SGCC, A653, etc.
Thickness	0.12–1.2 mm
Width	1000 mm (available in widths ranging from 600 to 1250 mm)
Zinc Plating	30–275 g/m²
Paint Type	PE, SMP, HDP, PVDF
Film Thickness	Front: 11–35 μm, Back: 5–14 μm
Inner Diameter	Φ508 mm / Φ610 mm
Single Coil Weight	3–8 metric tons per roll (typically 3–5 metric tons, or split into rolls per customer request)
Color	RAL color codes, or custom-made according to customer samples
Surface Treatment	Plain, matte, glossy, embossed, textured, etc.
Standards	Supplied in accordance with GB/T, EN, ASTM, and DIN standards, as specified by the customer
MOQ	10 tons (single specification)
Packaging	Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet)

Advantages of 1000mm-Wide PPGI Steel Coils

In addition to excellent corrosion resistance, a wide variety of colors and surface treatments, and flexible processing options (with substrate grades ranging from DX51D to DX54D, as well as structural grades such as S280GD, S350GD, and S550GD), 1000mm-wide PPGI coils also offer the following unique advantages:

• The Most Convenient Selection: For projects such as temporary fencing, factory partitions, and ceiling substrates—where appearance and weather resistance are not critical, but urgent delivery and cost control are essential—the 1000mm width is a ready-to-use specification that eliminates the need to worry about width compatibility.
• Excellent compatibility with overseas equipment: The 914, 1000, and 1200 mm widths are widely compatible with roll-forming equipment and prefabricated housing and fencing projects in Southeast Asia, the Middle East, and other regions.
• One coil serves the purpose of several: When narrow strips are needed for edge finishing or corner wrapping, they can be directly slit from a 1000 mm master coil on a slitting line, eliminating the need to stock multiple master coils of different widths.

Application Scenarios

• Construction: Used in the manufacture of roof panels, wall panels, partitions, ceilings, door and window frames, etc.
• Home Appliances: Casing for refrigerators, washing machines, air conditioners, etc. (Home appliance coils have relatively high requirements for surface quality and performance; the product is known as PCM steel, which is also a type of pre-painted steel)
• Furniture: PPGI steel is also used for steel wardrobes, storage cabinets, shelving, lampshades, bookshelves, and similar items.
• Other: Used in the manufacture of roll-up doors, billboards, traffic signs, and steel writing sheets.

Packaging and Shipping

1. Steel coils have an inner diameter of Φ508 / Φ610 mm, with a typical weight of 3–5 metric tons per coil; coil weight can be customized according to customer requirements.

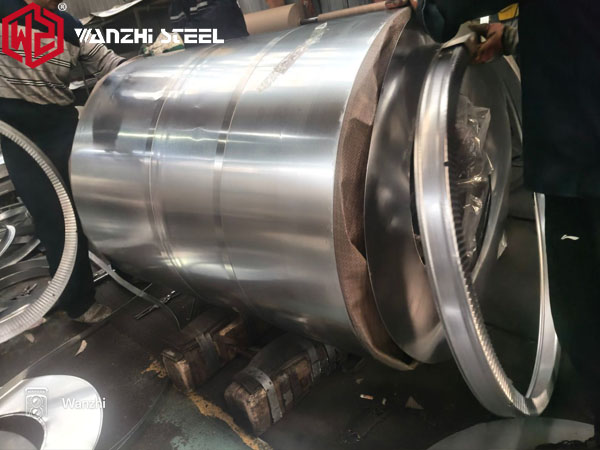

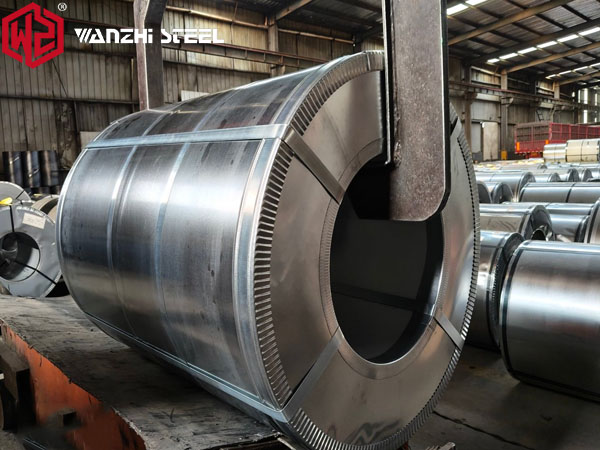

2. Standard export packaging: Core with moisture protection, outer layer of rust-proof film, and steel band strapping; coils are securely fastened and protected against impact during container loading for ocean freight.
3. Shipments can be made as full container loads (FCL) or less-than-container loads (LCL).
4. We support mailing samples for custom colors and patterns; color swatches and small samples will be provided for confirmation prior to production.

Why Choose Us?

Wanzhi Steel is a leading manufacturer of PPGI steel coils in China with over 15 years of experience. The company’s founder is a devout Christian who has always adhered to ethical business practices and is committed to supplying high-quality products to our customers.

In addition to 1,000 mm PPGI steel coils, we also have shearing lines, slitting lines, and profiling equipment, enabling us to supply PPGI flat sheets, PPGI steel strips, and PPGI corrugated sheets. This saves you the time required for secondary processing. We welcome you to contact us for a quote at any time.

FAQ

Q1: How do I choose between 1000mm and 1250mm PPGI coils?

A: It depends on the feed width of your roofing or wall panel forming machine. If the machine’s feed width is around 1000mm, or if the corrugated steel sheet itself is designed for 1000mm, use the 1000mm coil; if the forming machine supports a wider width and offers higher sheet utilization, then consider the 1250mm coil. Feel free to send us your equipment and profile specifications, and we’ll help you calculate which option is more material-efficient.

Q2: Can the colors be exactly the same?

A: Within the same supplier and the same batch, color variations can be kept to a minimum. There may be slight differences between batches, which is normal in the color-coated steel industry. Therefore, for large-scale projects, we recommend ordering the full quantity in a single order.

Q3: How is the quality inspected?

A: We can provide a quality inspection report prior to shipment, covering key items such as thickness, zinc coating weight, paint film thickness, gloss, and color difference. We fully support third-party testing, but the testing fees will be your responsibility. If your order volume is large (≥500 Tons), we can arrange for SGS testing at our expense.
