Orange Peel Aluminum Coil
Wanzhi Steel offers not only orange-peel-textured aluminum coils but also orange-peel-textured aluminum sheets. The factory has a pre-painted steel production line, so we can also supply color-coated orange-peel-textured aluminum coils. Widths are customized to customer requirements, and lengths can be slit into smaller coils upon request for convenient direct use on production lines.
Ensure product quality and transportation

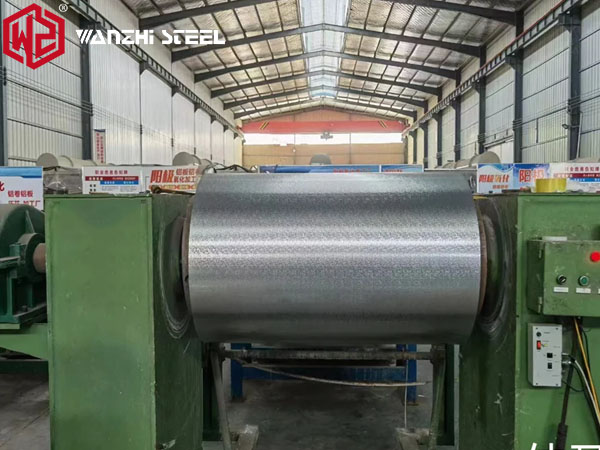

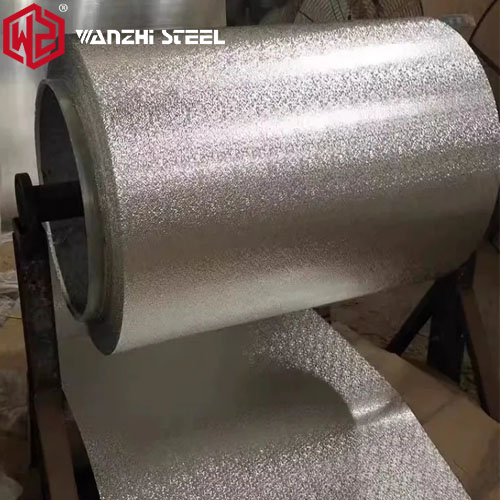

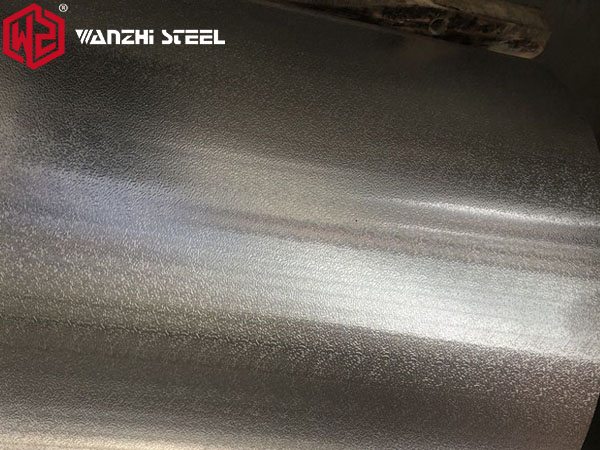

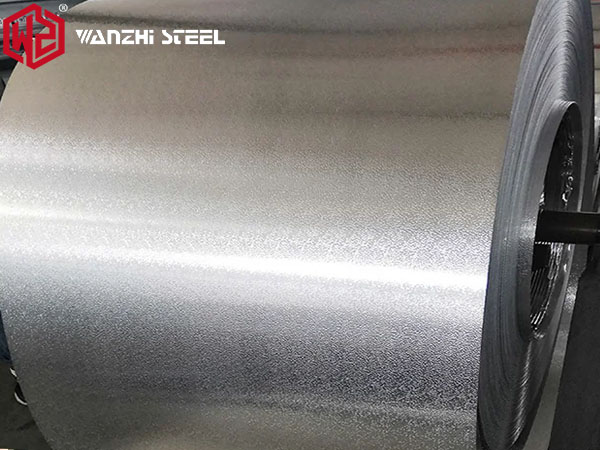

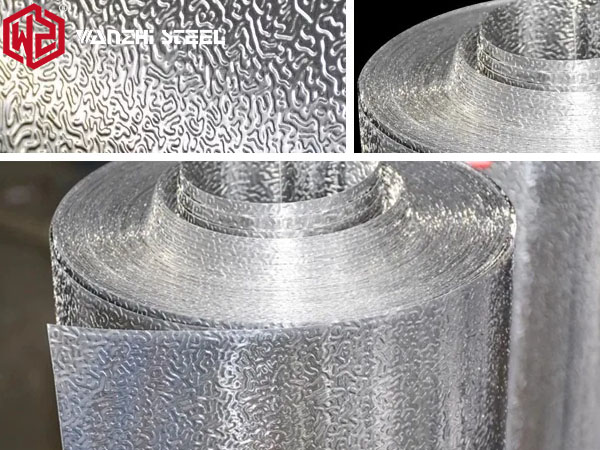

Orange-peel aluminum coils are produced by rolling the aluminum substrate to create a textured pattern resembling the skin of an orange. This is a functional aluminum material; the texture is not simply printed on the surface but is a permanent structure formed by plastic deformation of the aluminum sheet. The pattern is fine and evenly distributed, with a slightly grainy texture to the touch.
Orange-peel textured aluminum coils are primarily used for refrigerator and air conditioner liners, pipe insulation casings, architectural decoration, and anti-slip base plates. Common grades include 1060 and 3003, with thicknesses typically ranging from 0.2 to 1.5 mm.
Specifications
| Products | Thickness | Width | Material | Supply Description |
| Orange peel textured aluminum coil | 0.2—1.5mm | ≤1500mm（750/840/900/1000/1250mm） | 1060/3003/3004 | Embossed orange peel texture, delivered in rolls, can be cut into smaller rolls according to customer’s length. |

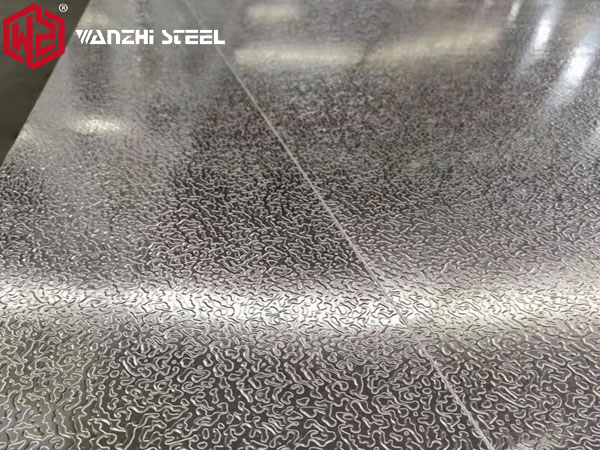

| Orange peel textured aluminum sheet | 0.2—1.5mm | 1060/3003/3004 | Embossed orange peel texture, delivered in sheets/flattened to standard length. | |
| Color-coated orange peel textured aluminum coil | 0.2—1.0mm | 1060/3003/3004, etc. | Pre-coated lacquered thread included, color as required. | |
| Other aluminum coils | According to purchase order | 1050, 1060, 1070, 1100, 3003, 5052, 6061, 7075, 8011, etc. | Specific grade, condition, and thickness to be confirmed upon order. |
We Supply Aluminum Coils in the Following Grades
Common orange peel finishes: 1060, 3003, and 3004. You may be wondering why there are only these three grades of orange peel aluminum coils. Here is the explanation:
Different grades vary in strength, corrosion resistance, and formability, so material selection depends on the specific application. Grade 1060 is relatively soft and low-cost, making it suitable for inner liners, general decoration, and thermal insulation casings; 3003 offers a better balance of rust resistance and strength, making it suitable for pipe insulation, architectural decoration, and parts that require bending; 3004 has higher strength and good corrosion resistance, making it suitable for applications requiring higher hardness.
Other available aluminum coil grades include: 1050, 1060, 1070, 1100, 3003, 5052, 6061, 7075, 8011, etc.
Processing and Supply Options

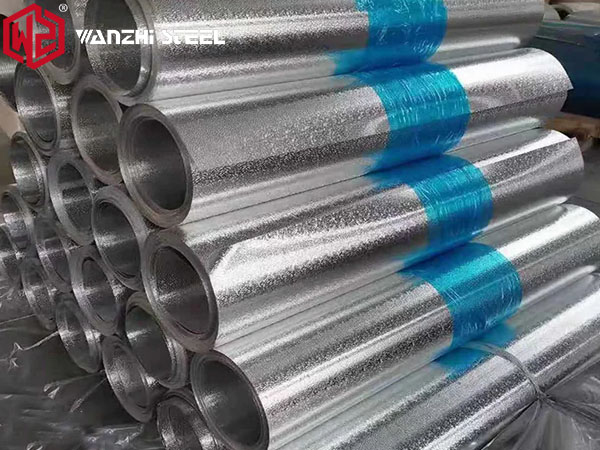

We offer embossed orange-peel texture, color-coated finishes, leveling, and cut-to-length services, as well as slitting into smaller coils according to customer-specified lengths. Widths are customizable, and coil weight and length are negotiable based on customer requirements. Color-coated orange-peel aluminum coils can be supplied to integrate with pre-painting production lines, with colors available upon request.
Advantages of Orange-Peel Textured Aluminum Coils
In addition to aluminum coils’ excellent corrosion resistance and high-temperature resistance, the orange-peel textured surface treatment further enhances their mechanical properties:
- The embossing process not only imparts a textured appearance but also provides tangible improvements in mechanical performance. Because the embossed structure alters the stress distribution within the aluminum sheet, the tensile strength of orange-peel textured aluminum coils of the same specifications can be increased by approximately 10% to 20% compared to flat aluminum coils.
- Elongation remains above 25%, allowing for smooth 90-degree cold bending; cracks do not occur when the bending radius is controlled within 1.5 mm, making it suitable for processing applications requiring bending, edge rolling, and stamping.
In addition, the orange peel-embossed surface is resistant to noticeable scratches from minor impacts and reduces glare.
Application
- Home Appliance Manufacturing: The home appliance industry is one of the largest consumers of orange-peel aluminum coils. These coils are extensively used for the inner liners and back panels of refrigerators and freezers; they are also commonly used in air conditioner casings and washing machine panels, where aluminum’s thermal conductivity aids in heat dissipation. We also offer other steel products for home appliances.
- Pipe Insulation: Pipes and tanks in power plants and chemical plants are wrapped with orange-peel aluminum coils, most commonly in thicknesses ranging from 0.5 mm to 0.8 mm. The orange-peel texture increases surface friction, preventing slippage during installation, while the embossed structure also provides some protection for the insulation layer.
- Transportation: Applications such as vehicle interior panels, ship cabin walls, and refrigerated truck bodies have specific requirements for lightweight construction and corrosion resistance, and often require friction properties; therefore, orange-peel textured aluminum coils are selected for these applications.
Summary
Wanzhi Steel is a professional supplier of orange-peel-textured aluminum coils and sheets in China. We maintain full control over the entire production process—from the procurement of raw aluminum materials to embossing and pre-coating. We offer custom sizing, material selection, and slitting of small coils. With over 15 years of production and export experience, we have exported our products to more than 120 countries.
We have strict monitoring and inspection procedures in place, and once a partnership is established, we will provide you with real-time updates on production progress. If you entrust us with ocean freight arrangements, we will also promptly update you on shipping logistics. Please feel free to contact us for a quote if you have any needs.
