Galvanized Steel For Appliance

Specifications

Item	Technical Parameters
Zinc plating process	Hot-dip galvanized (GI), electro-galvanized (EG)
Substrate type	Cold-rolled low-carbon steel
Thickness	0.30–2.00 mm (Our GI steel has a maximum thickness of 6mm, used in construction and other industries)
Common thickness for household appliances	0.40, 0.45, 0.50, 0.60, 0.70, 0.80, 1.00, 1.20 mm
Width	≤1,500 mm
Common width	914, 1,000, 1,219, 1,250 mm
Coil inner diameter	508 mm / 610 mm
Single coil weight	3–10 tons (can be supplied according to customer requirements)
Length	Short-length leveling or shearing according to customer requirements
Zinc layer weight	Z100, Z120, Z140, Z180, Z200, Z275 (g/㎡, double-sided)
Surface condition	Spangle-free (for home appliances), small spangle, regular spangle, large spangle
Surface treatment	Passivation, fingerprint resistance, oil coating, chromium-free environmentally friendly treatment
Processing method	Leveling, slitting, and cutting to length

Applications of Galvanized Steel in the Home Appliance Industry

Galvanized steel used in home appliances is typically “flower-free” galvanized steel sheet. It is commonly used in the following home appliance components:

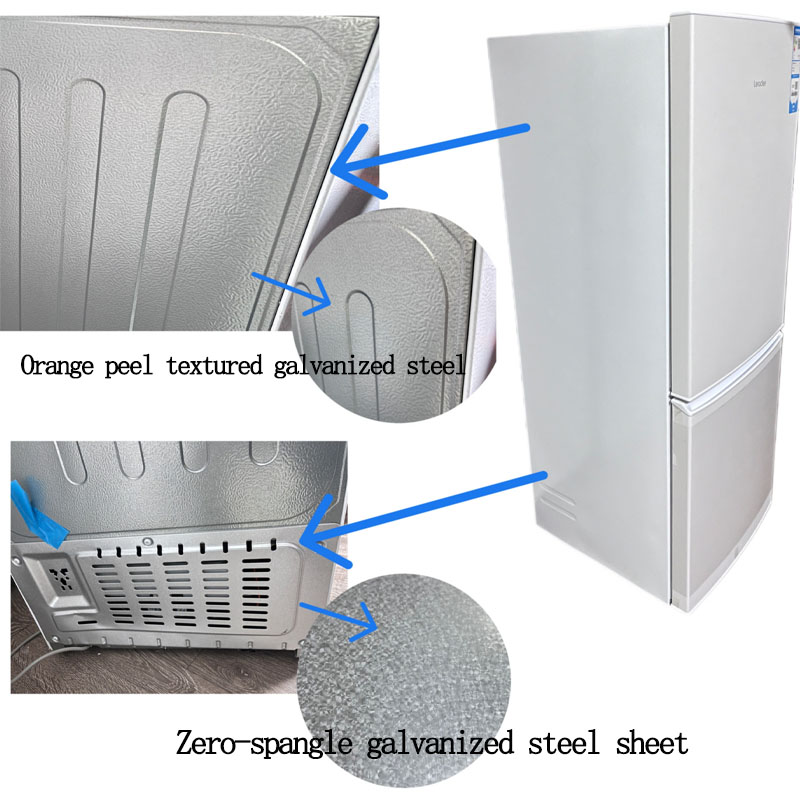

• Refrigerator side panels (left and right), back panels, and internal structural components (brackets, bases).
• Washing machine outer casings, rear cover panels, bases, and inner drum support structures.
• Front and back panels of indoor air conditioner units, as well as outdoor unit bases and compressor bases.

Additionally, galvanized steel coils serve as the substrate for PCM coils, offering high decorative value and used for exterior panels on various home appliances.

Advantages of Galvanized Steel for Home Appliances

The zinc coating on galvanized steel used in home appliances is generally no less than 120 g/m² (Z30–Z275 g/m²). This zinc coating provides the following advantages:

1. Higher rust resistance: Corrosion resistance primarily comes from the zinc coating on the surface; the thicker the coating, the stronger the corrosion resistance.
2. Longer product lifespan: A thicker, more uniform, and denser zinc coating provides stronger resistance to corrosive environments, resulting in a longer lifespan.
3. Superior formability: Since the substrate for galvanized steel used in home appliances must possess deep-drawing capabilities, this steel offers superior formability.

We supply GI Seel grades to the home appliance

Since the home appliance industry requires substrates with excellent stamping performance, material grades with deep-drawing capabilities are generally selected.

We Supply Types of Galvanized Steel for Home Appliances

Galvanized steel comes in different types, and different supply forms are suitable for different manufacturing processes, effectively improving material utilization and production efficiency.

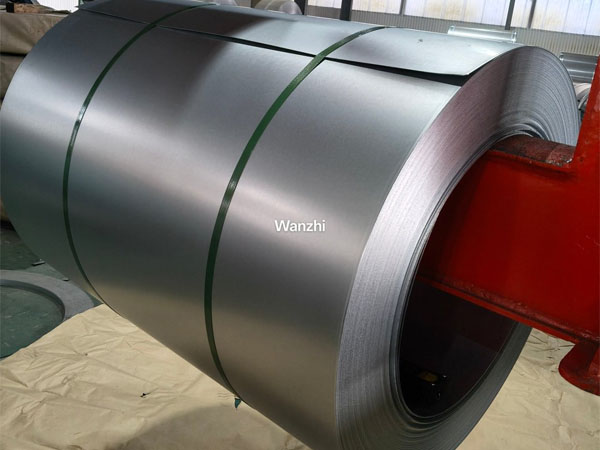

1. Coils: Galvanized steel coils are the most widely used supply form in home appliance manufacturing.
2. Sheets: Galvanized steel sheets are typically produced by uncoiling and shearing steel coils and can be cut to dimensions specified by the customer.
3. Strips: Galvanized steel strips are widely used in the manufacture of small structural components and fasteners for home appliances.

We operate galvanized steel coil production lines, fixed-length cutting lines, and precision slitting lines, enabling us to supply all of the above product types.

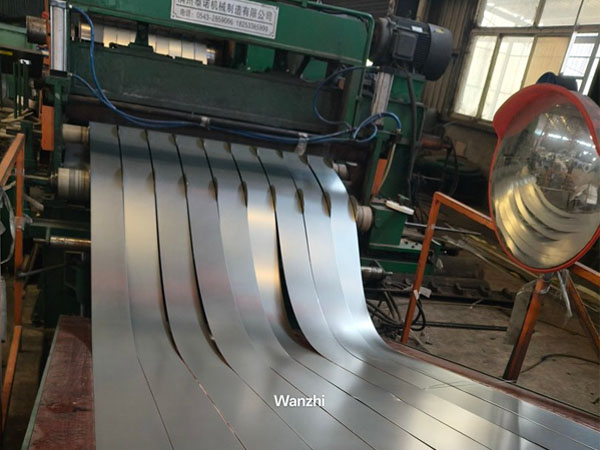

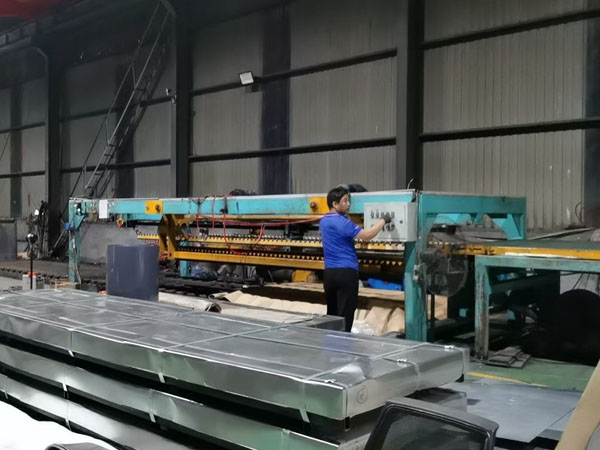

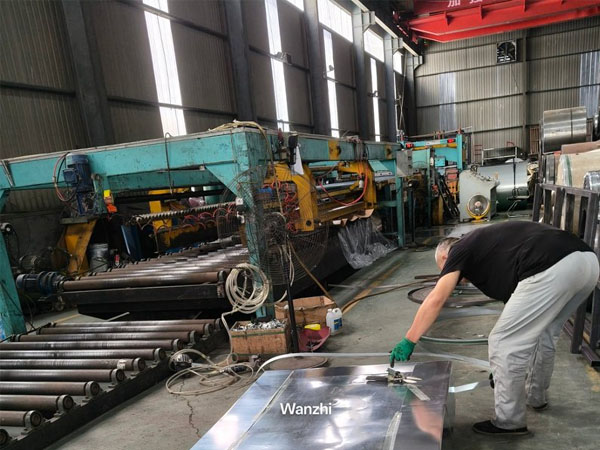

Production Line and Processing Line Diagrams

We are a professional supplier of home appliance materials, offering products such as PCM steel, VCM steel, GL steel, and stainless steel. With over 15 years of experience, we have established long-term partnerships with numerous home appliance manufacturers, who have recently purchased galvanized steel sheets and PCM steel from us.

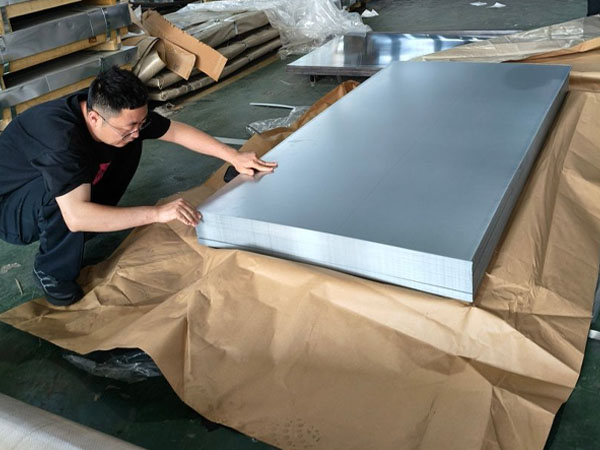

We have our own rigorous inspection procedures and are confident in the quality of our products; therefore, we fully support third-party testing (such as SGS—you can view my SGS reports).
