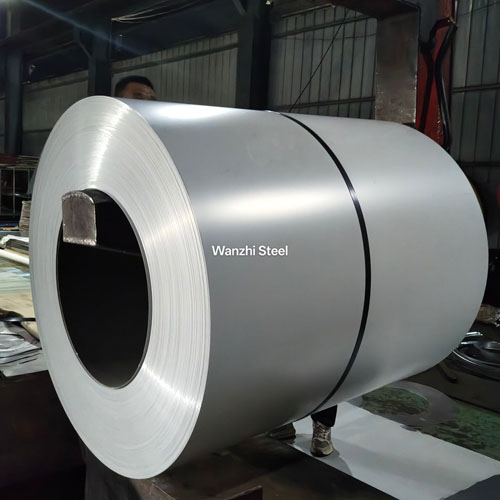

Prepainted AZ90 AZ120 Galvalume Steel Coil

Prepainted AZ90 and AZ120 Galvalume steel coils offer excellent corrosion resistance, attractive surface finishes, and good heat resistance. We supply four types of PPGL steel coils: coils, flat sheets, corrugated sheets, and strips. Please feel free to contact us if you have any inquiries.

Specifications

Product Name	AZ90/AZ120 Prepainted Galvalume Steel Coil
Thickness Range	0.12mm – 1.5mm (Customization available)
Width Range	600mm – 1250mm (Standard), Slitting
Coating Type	Al-Zn alloy (55%Al, 43.5%Zn, 1.5%Si)
Coating Structure	Topcoat + Primer + Aluminized Zinc Substrate + Protective Coating on Back
Paint Type	Polyester (PE), High Weather-Resistant Polyester (HDP), PVDF Fluorocarbon
Aluminum-Zinc Coating Weight	AZ90 (90g/㎡), AZ120 (120g/㎡) Double-sided Coating
Substrate Grade	DX51D, DX52D, DX53D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD, SGCC, SGHC, SGCH, etc.
Temperature Resistance	Maximum withstand temperature 340℃, stable for long-term high-temperature use
Coil Inner Diameter	508mm / 610mm
Color	RAL full range or customized to customer requirements
Surface Gloss	High gloss, matte, fine texture, etc.
Product Type	Coils, flat sheets, corrugated sheets, strips (slits)
Certifications	ISO9001、CE、SGS
MOQ	25 tons

Applications

Prepainted AZ90 and AZ120 Galvalume steel coils are often formed into corrugated steel sheets, steel strips, and flat sheets. After processing, they are used for the following applications:

• PPGL corrugated steel sheets: Building roofs, exterior wall cladding, temporary fencing, etc.
• PPGL strips: Ventilation ducts, cable trays, solar panel mounting brackets, light-gauge steel studs, etc.
• PPGL flat sheets: Housing for home appliances such as refrigerators, air conditioners, ovens, and toasters.

FAQ

Q1: What are AZ90 and AZ120? What are the main differences between them?

AZ refers to the weight of the aluminum-zinc alloy coating (average of three measurement points on both sides), measured in g/m². AZ90 indicates a total coating weight of 90 g/m² on both sides, while AZ120 indicates 120 g/m².

The thicker the coating, the greater the corrosion resistance. The AZ120 coating is thicker and offers a longer corrosion resistance lifespan, making it suitable for highly corrosive environments (such as coastal areas and industrial zones).

Q2: Can the dimensions and colors be customized?

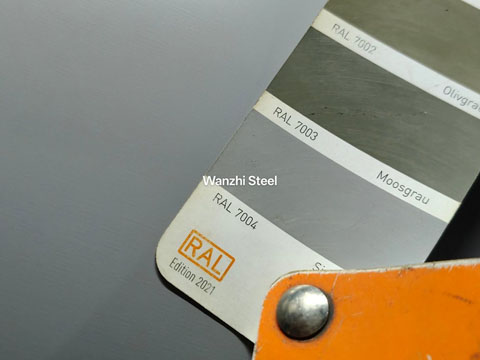

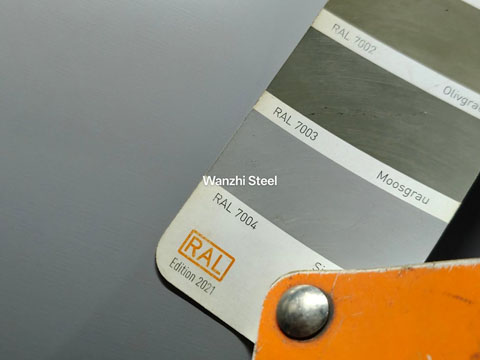

The specifications that can be customized include width (any width under 1250 mm), roll weight (can be split into multiple rolls), and length (cut to your specifications). For colors, we primarily use the RAL color chart; we can produce any color listed in the RAL chart. If you require a special color, please mail us a sample, and we can produce it based on your sample.

Q3: How are the products processed? Do you offer slitting, shearing, and corrugating services?

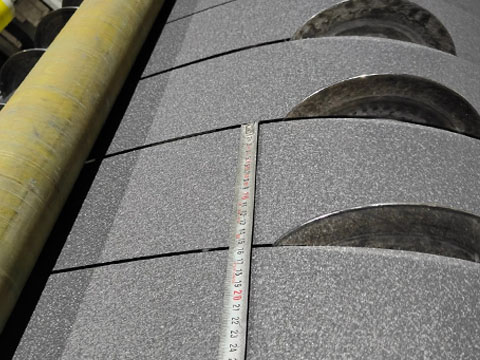

We have our own processing equipment and can directly provide value-added services such as shearing flat sheets, slitting narrow strips, and corrugating (corrugated sheets). You can purchase the products you need directly, saving you time on procurement.

Q4: What are the minimum order quantity (MOQ) and lead time?

The standard MOQ for standard colors is 10 tons. For special colors, specifications, or high-coating products, the MOQ is 25 tons (one 20-foot container). Production lead time varies depending on order quantity and specifications, typically ranging from 7 to 30 business days.

Why Choose Us?

Our Client Procurement Cases

Our Packaging

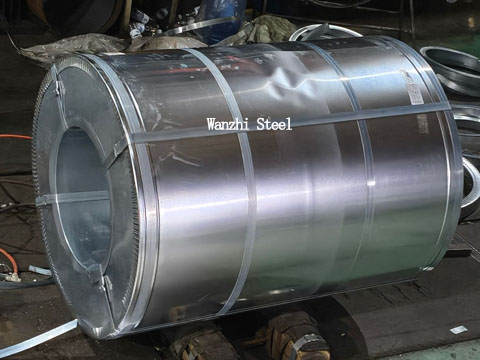

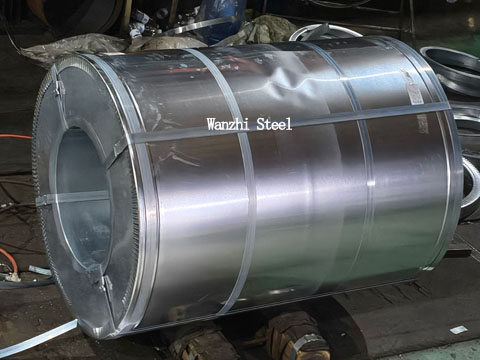

We offer multiple packaging solutions for coil materials, including vertical and horizontal stacking, precision flat-pack packaging, and corrugated board with steel strapping. Specific packaging details are as follows:

1. Inner Layer: Moisture and Rust Protection: Wrapped in high-strength waterproof kraft paper and rust-preventive oil paper to completely block out air and moisture, preventing oxidation and rusting of the substrate at the source.
2. Middle Layer: Scratch Protection: Fully covered with thickened plastic protective film to prevent the surface paint film from being scratched by friction or contaminated by dust, preserving the aesthetic integrity of the surface.
3. Outer Reinforcement and Impact Protection: The outer layer features fully enclosed galvanized steel sheet edging, paired with specialized steel corner guards, to prevent damage from crushing or collisions during loading, unloading, and transportation.
4. Overall Securing and Reinforcement: Steel strapping is used for secure fastening, ensuring a stable structure that resists loosening or deformation; custom wooden crates are available for niche or irregularly shaped products.

Our Certifications

We are certified to ISO 9001, ISO 14001, ISO 45001, and CE, and have also obtained any third-party certifications required by our customers. To view the SGS reports for our products, please click here → https://wanzhi-steel.com/sgs-test-report-showcase/

Wanzhi Steel has been in business for over 15 years and has always operated with integrity. Our factory is located in Boxing County, Binzhou City, Shandong Province (featuring production lines for color-coated steel coils, galvanized steel (GL), galvanized iron (GI), and office steel sheets). If you have any procurement needs for steel products, please feel free to contact us at any time.
