Corrugated Metal Wall Panels
Corrugated metal wall panels for exterior and interior wall cladding, We can provide include galvanized steel, galvalume steel, color-coated steel, and aluminum, with rich colors and complete specifications.
Galvanized, galvalume and pre-painted steel, custom profiles, sizes and finishes for building projects.
GI/GL/Color coated steel corrugated sheet thickness: 0.12mm – 0.8mm
Aluminum corrugated sheet thickness: 0.4mm – 1.5mm
Width: 600mm – 1200mm
Length: 1m – 12m or Cutting as per requirement
Ensure product quality and transportation

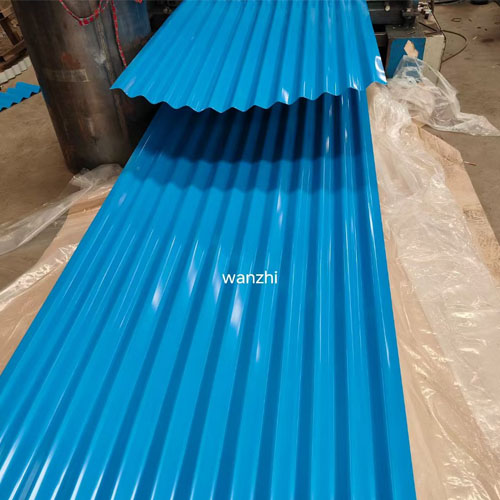

Wanzhi Steel manufactures corrugated metal wall panels for exterior and interior wall cladding applications. The panels are roll-formed or pressed from galvanized steel, galvalume steel, pre-painted steel, or aluminum and can be supplied in different profiles, thicknesses, widths, lengths, and finishes.
Our corrugated metal wall panels
Corrugated metal wall panels with different base materials can be selected based on the required corrosion resistance, strength, appearance and project budget.
Galvanized Corrugated Steel Sheets
Galvanized corrugated steel sheets are coated with a layer of zinc, which protects the steel substrate from corrosion. They are a practical choice for industrial buildings, warehouses, agricultural structures, partitions, and general wall cladding. They offer the lowest cost. The substrate consists of commercial-grade and structural-grade steel that meets the required standards and forming specifications.
Aluminum-Zinc-Coated Corrugated Steel Sheets
Aluminum-zinc-coated corrugated steel sheets offer superior corrosion resistance compared to galvanized steel sheets, along with high heat reflectivity and high-temperature resistance. They are particularly suitable for use in hot and humid climates.

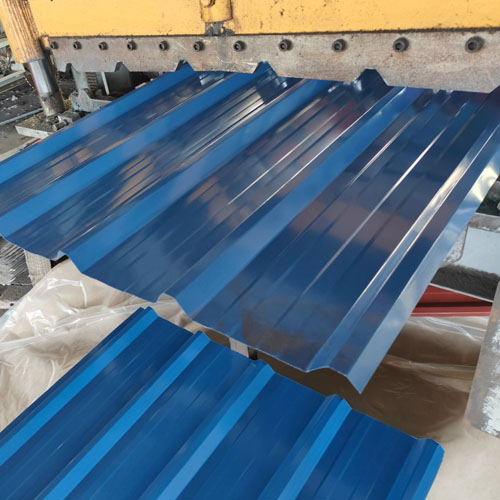

Pre-painted Corrugated Steel Sheets
Pre-painted corrugated steel sheets include pre-painted galvanized corrugated steel sheets and pre-painted galvalume corrugated steel sheets. They not only provide corrosion protection but also feature an attractive appearance (available in various colors such as red, blue, and gray).
Available paint coating systems include PE, SMP, HDP, and PVDF. Color options can be selected from the standard RAL color chart or customized according to project requirements.
Aluminum Corrugated Sheets
Aluminum corrugated sheets offer a lightweight option for wall cladding and architectural applications, making them particularly suitable for situations where low weight and high corrosion resistance are required.
Specification
| Product Name | Corrugated Metal Wall Panels |
| Application | Exterior & Interior Wall Cladding |
| Steel Thickness | 0.12–0.8 mm |
| Aluminum Thickness | 0.4–1.5 mm |
| Sheet Width | 600–1200 mm |
| Sheet Length | 1m – 12m or Cutting as per requirement |
| Steel Substrate | Galvanized Steel, Galvalume Steel, Pre-Painted Steel |
| Aluminum | Aluminum Alloy |
| Coating | PE, SMP, HDP, PVDF |
| Surface | Smooth, textured, perforated, or custom (wood grain, grass pattern, etc.) |
| Color | RAL colors or customized |
| Standards | ASTM, EN, GB, JIS |
| Panel Profile | Corrugated, wave, ribbed or customized |
| Production | Roll forming / profile forming |
| Packaging | Standard export packaging or project-specific packaging |
Advantages of Corrugated Metal Cladding
- Durable: corrugated metal cladding is weather-resistant, corrosion-resistant, impact-resistant and has a long service life.
- Decorative: rich colors and corrugated types, suitable for a variety of architectural styles.
- Lightweight: Compared with traditional building materials, metal sheets are light in weight and easy to transport and install.
- High optionality: Corrugated sheets of various materials, colors and types are available.
- Quick installation: The installation method is simple, the sheet covers a large area and the construction efficiency is high.
- High economic efficiency: Metal materials can be 100% recycled and are cheaper than traditional building materials.
Common Applications

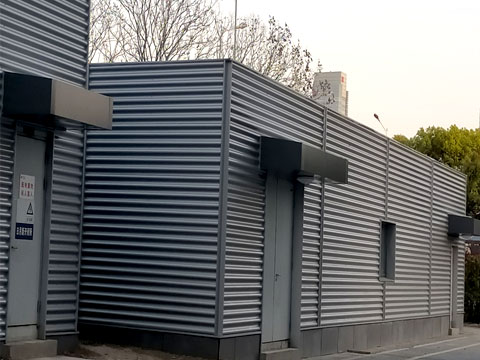

Commonly used in building fences, partitions, background walls, interior wall decoration, exterior wall cladding, curtain wall decoration, etc.
- Industrial Buildings: Suitable for factories, workshops, manufacturing plants, and other industrial buildings that require durable metal wall cladding.
- Warehouses and Storage Buildings: Corrugated steel wall panels provide a cost-effective exterior cladding option for warehouses, logistics buildings, storage facilities, and distribution centers.
- Agricultural Buildings: Galvanized, pre-painted corrugated panels are commonly used in agricultural buildings, farm structures, equipment sheds, and livestock-related buildings.
- Commercial Buildings: Colored corrugated wall panels can be used for commercial building facades, retail buildings, service facilities, and other light-duty commercial structures.
- Architectural Wall Cladding: Different corrugation types, colors, and finishes can be combined to create linear facade appearances for modern architectural projects.

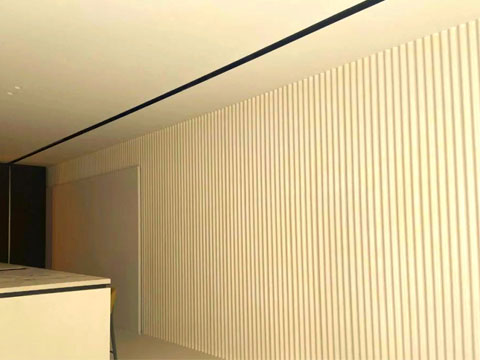

- Interior Walls and Partitions: Corrugated metal panels can also be used for interior feature walls, partitions, equipment rooms, workshops, and other areas requiring durable metal surfaces.

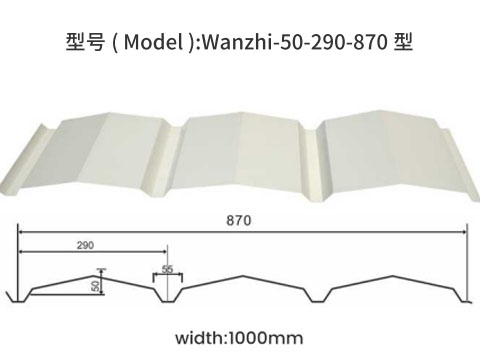

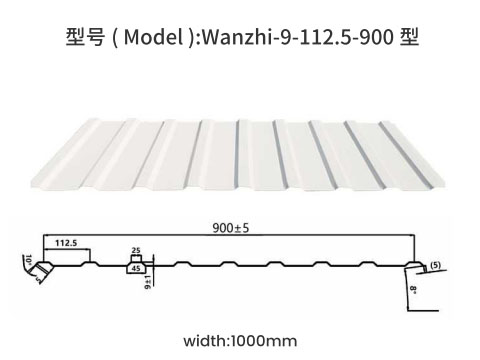

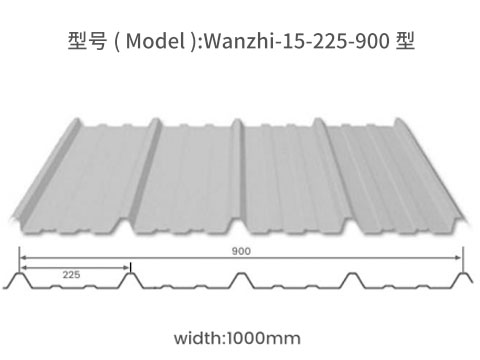

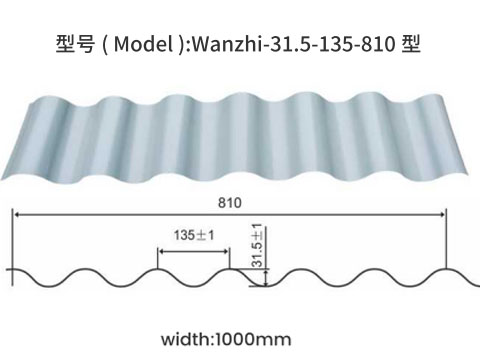

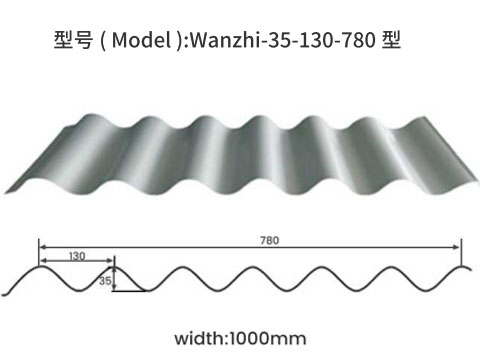

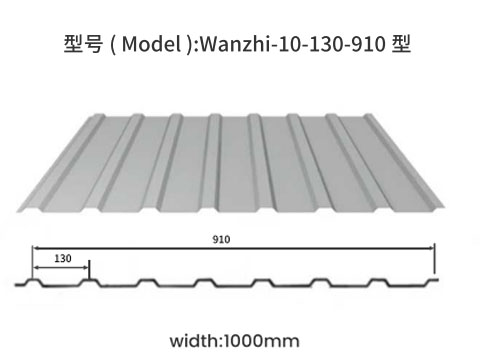

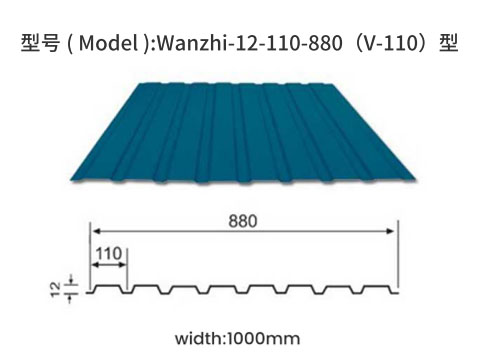

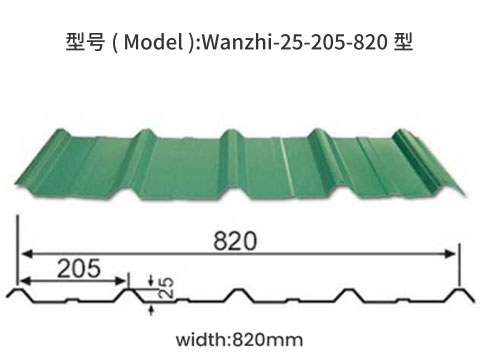

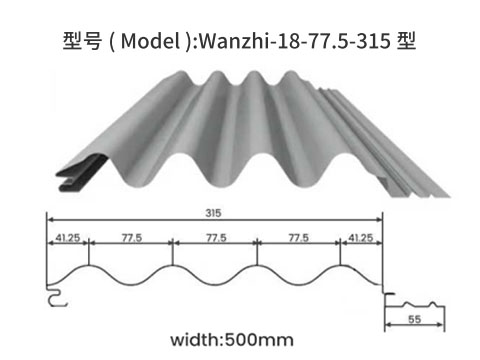

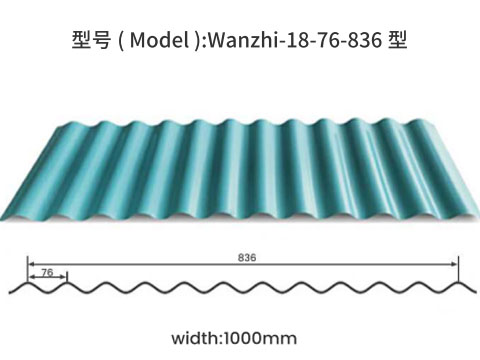

Wanzhi Steel’s corrugated metal sheet types
Here are some of Wanzhi Steel’s corrugated wall cladding panels. If you need other types of corrugated metal wall panels, please contact us and provide pictures. If we don’t have the press equipment to press, we can customize it if the quantity is sufficient. For more information, please download the product brochure.
How to Choose the Right Corrugated Wall Panels
For engineering and procurement teams, we recommend providing the following information when requesting a quote:
- Panel Application—Exterior walls, interior walls, partitions, curtain walls, etc.
- Panel Profile—Drawings, profile codes, or reference samples.
- Steel Grade—Based on structural and forming requirements.
- Panel Thickness—e.g., 0.5 mm, 0.6 mm, 0.8 mm, or as required by the project.
- Metal Coating—e.g., Z-coating or AZ-coating.
- Coating System—PE, SMP, HDP, PVDF, or a coating specified by the project.
- Color—RAL color chart or other specified color standards.
- Panel Width – Effective width and total width (if required).
- Panel Length – Fixed length or cutting plan.
- Quantity – Total square meters, linear meters, metric tons, or number of panels.
- Applicable Standards – ASTM, EN, GB, JIS, or project specifications.
- Delivery Requirements – Port of destination, delivery schedule, and packaging requirements.
Providing these details helps us evaluate the panel profiles, base materials, coating systems, and production methods before preparing a quote.
Request a Corrugated Metal Wall Panel Quote
To request a project quote, please provide the required panel specifications, material grades, thicknesses, coatings, colors, dimensions, quantities, and destination. We can provide suitable corrugated metal wall panel solutions based on your project specifications.
It should be noted that we also sell press equipment. You can buy our galvanized steel coils, color-coated steel coils, color-coated aluminum coils and other products and press equipment to produce corrugated metal sheets yourself.
Why Choose Us?
- Many types: Hundreds of press equipment are required to produce many types of corrugated metal sheets.
- Multiple production lines: With galvanized steel, galvalume steel, color-coated steel and other production lines, we can ensure the quality of raw materials.
- Strict testing: Professional inspection equipment and technicians strictly inspect the performance, appearance, composition, etc. of the products.
- Honest enterprise: The company has passed ISO 9001, ISO14001, CE, SGS and other certifications, and has successfully exported to more than 120 countries.
Wanzhi Steel is a manufacturer with more than 17 years of production experience and 14 years of export experience. With advanced production equipment and industry experience, it has successfully served more than 1,200 projects and is widely praised. If you have a project that requires corrugated metal wall cladding, please contact us!
FAQ
Q1: Are these panels single-layer wall panels?
Yes, they are individual metal panels. We only supply corrugated metal sheets; we do not provide materials such as insulation, siding, weatherproofing layers, or other wall components.
Q2: Do you offer pre-painted corrugated wall panels?
Yes. Both pre-painted galvanized steel sheets and pre-painted galvanized-aluminum steel sheets can be fabricated into corrugated wall panels. We offer PE, SMP, HDP, and PVDF coating systems.
Q3: Can the panel lengths be customized?
Yes. Panel lengths can generally be cut to suit project schedules, with a maximum available length of approximately 12 meters, depending on production and shipping conditions.
Q4: Do you supply steel coils and finished panels?
Yes. We supply the following steel coil products:
Customers can purchase either finished wall panels or steel coils for their own processing.
