Steel for Home Appliances · Direct OEM Supply
Steel for Refrigerator Panels
VCM Laminated Steel · PCM Pre-painted Color-Coated Steel · GI/GL — Custom colors, surface treatments, slitting, and sample support; one-stop service for refrigerator manufacturers
Product Introduction: Comprehensive Steel Solutions for Refrigerator Panels
Different components of refrigerators have distinct performance requirements for steel—door panels require high aesthetic appeal and resistance to deformation, side panels prioritize strength and scratch resistance, while back panels must balance heat dissipation and corrosion resistance. Wanzhi Steel provides precisely matched steel grade solutions for each component, ensuring high production yield and long-term reliability for the entire appliance.
With production bases in Shandong and Tianjin, Wanzhi Steel specializes in customized OEM solutions for home appliances. We offer on-demand customization of RAL color codes, orange peel/matte textures, coating thickness, and substrate thickness, and support sheet leveling, slitting, and cut-to-length services.
Recommended Steel Grades for Different Panels of Refrigerators
| Refrigerator Component Locations | Recommended Steel Materials | Common Processes & Surface Finishes | Product Details |
| Refrigerator door panel | Pre-painted color-coated steel (PCM), VCM laminated PVC/PET film steel, 304 stainless steel sheet | RAL color, high gloss/matte; metal sheet + brushed film, pearlescent film, etc. | View VCM |
| Refrigerator left and right side panels | Pre-painted color-coated steel (PCM), textured embossed color-coated steel | Orange peel texture, matte pre-coated finish | View PCM |
| Refrigerator back panel | GI hot-dip galvanized steel, GL aluminized zinc steel | Metal surfaces, simple rust-preventive oil treatment | View GI/GL |

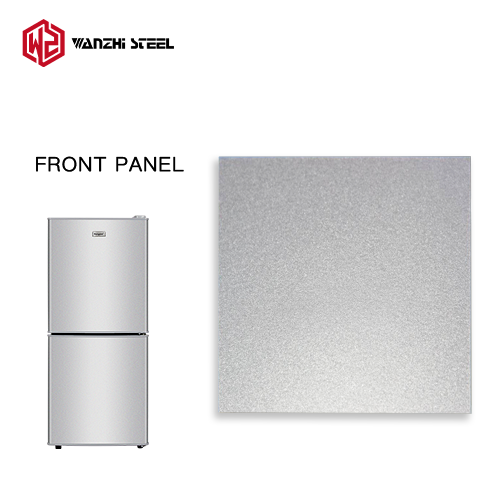

VCM Laminated Steel
The front door panel of a refrigerator is the most visible and frequently touched part of the appliance, so it must be visually appealing and functional (e.g., scratch-resistant, fingerprint-resistant). VCM laminated steel meets these requirements. If your budget is limited, you can also consider PCM steel.
Popular Products
High-Gloss Mirror VCM
A high-gloss PET/PVC film is applied to the surface of the metal sheet, exuding luxury; Used for high-end refrigerator panels and luxury appliance display surfaces.
Textured Effects

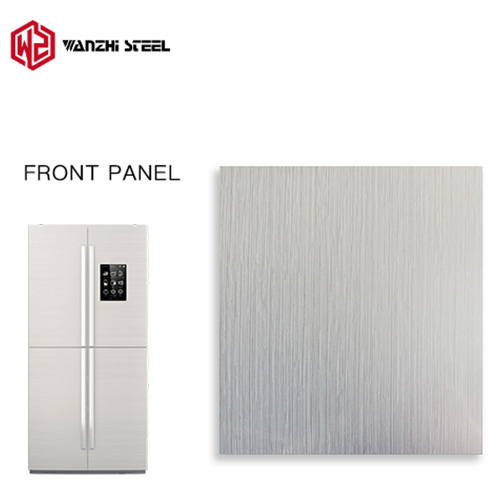

A variety of textured films, including brushed, pearlescent, wood grain, leather grain, and ice-patterned finishes, to support differentiated refrigerator designs.
Functional Features
Anti-fingerprint and anti-static functional films. Designed for kitchen environments with grease and dust, VCM steel surfaces are easy to clean and leave no fingerprint marks even after long-term use.
Specifications
| Substrate Material | Cold-rolled steel sheet / Hot-dip galvanized (GI) / Electro-galvanized (EGI) / Stainless steel / Aluminum sheet |
| Substrate Thickness | 0.3 – 1.5 mm (steel sheet) | Aluminum sheet 0.3~2.3 mm |
| Clad Film Thickness | 0.05 – 0.18 mm (PVC/PET composite film) |
| Width/Length | Width ≤1500 mm; Length ≤5000 mm; Coil Sheet available. |
| Supply Form | Coil/fixed length cutting/slitting; Inner diameter 508/610 mm optional |
| MOQ | 25 TONS |
PCM Pre-painted Color-Coated Steel
Refrigerator side panels consist of two panels—left and right—and are areas where a significant amount of steel is used. For cost-effectiveness, PCM color-coated steel is typically chosen, with common colors including white and gray. Among these, orange peel textured color-coated steel can conceal minor defects in the base material and enhance scratch resistance.
Popular Products

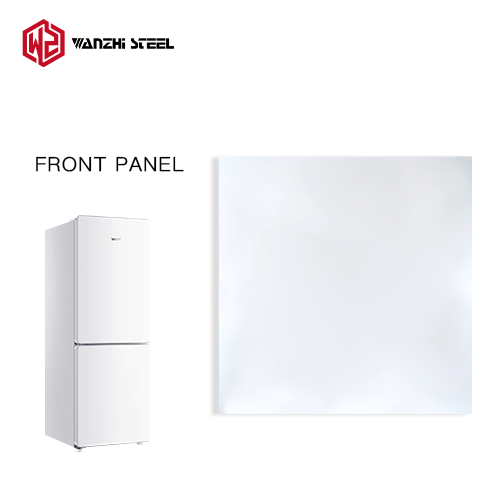

RAL9003 Signal White Coated Steel
A pure, high-gloss white that is the mainstream standard color in the home appliance industry. Suitable for refrigerator front doors and side panels; gray is also commonly used.

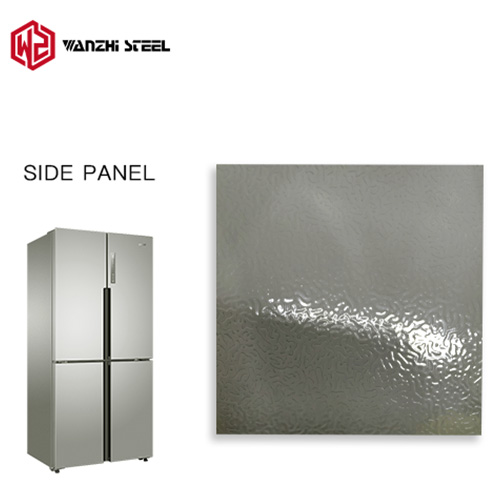

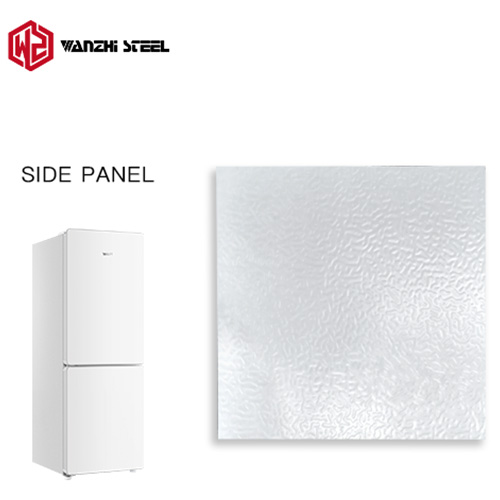

Orange Peel Texture Coated Stee
Features a uniform, fine embossed pattern that directly enhances the steel sheet’s surface strength and minimizes the visibility of scratches, making it the top choice for refrigerator side panels.
Functional Color-Coated Steel
Available with antimicrobial, oil-resistant, self-cleaning, and anti-static coatings to meet the needs of specialized kitchen, medical, and high-end refrigerator applications.
Specifications
| Substrate Material | Cold-rolled steel (CR), galvanized steel (GI), and aluminized zinc steel (GL) |
| Thickness | 0.3mm – 1.2mm |
| Paint Type | PE/SMP/HDP/PVDF |
| Coating Thickness | Topcoat 15-25μm, backcoat 5μm, total composite coating 20-30μm |
| Surface Type | Embossed orange peel texture, gloss/matte finish, wrinkle texture, etc. available |
| Color System | RAL color chart or custom orders based on samples |
| Supply Form | Roll/length cutting/slitting; inner diameter 508/610mm available |
| MOQ | 10 TONS |
GI/GL Steel
Refrigerator Back Panels: Refrigerator back panels do not require high decorative appeal; they simply need to ensure good corrosion resistance and heat dissipation. Generally, galvanized aluminum-zinc steel (GL) or hot-dip galvanized steel (GI) is selected for this application.
Product Introduction
Specifications
| Thickness | 0.2mm – 0.6mm |
| Width | ≤1250mm, commonly used are 914mm/1000mm/1250mm |
| Coating | Z30 – Z275 g/m², AZ30 – AZ150 g/m² |
| Substrate Material | DX51D, DX52D, DX53D, S250GD, S350GD, S550GD, SPCC, SGCC, A653, etc |
| Supply Form | Roll/length cutting/slitting; inner diameter 508/610mm available |
| MOQ | 10 TONS |
Our Advantages
We specialize in supplying high-quality steel for refrigerator OEM production, offering a complete range of specifications and consistent quality. We support custom colors, surface treatments, slitting services, and sample requests.
Focused on OEM Production for Home Appliances
With 15 years of experience in manufacturing appliance-grade steel, we are well-versed in the entire production process for refrigerators, including stamping, bending, and lamination.
Ample Stock at Two Major Production Bases
Our Shandong production facility features multiple production lines for PCM color-coated steel, VCM laminated steel, and GI/GL steel. With high production efficiency, we offer short lead times of 7 days.
Custom Colors & Surfaces
We provide custom colors across the full RAL and GSB color ranges, as well as special finishes such as orange peel, fine sand, and mirror finishes, to meet the demands of export markets and the rapid iteration of new refrigerator models.
Slitting and Processing
Equipped with precision slitting, leveling, and shearing machinery, we supply not only coiled materials but also flat sheets and strips. With fast turnaround times, delivery ranges from 7 to 30 business days depending on order cycles.
Our Clients and Team
Authoritative Certifications
Our products are certified to ISO 9001, CE, and SGS standards, meeting both domestic and export standards for refrigerator materials.
SGS Certification
SGS Test Report
PPGI COIL
- Color: RAL 9003 & RAL 7030
- Total: 145 Coils
- Report Number: ITI-2026-EGO-0011
- Test Date: November January 13, 2026
Has Passed all SGS Tests and Meets The Standards
SGS Test Report
VCM Sheet
- Test Category: Laminated Film Metal Sheet
- Specifications: 0.45*946
- Report Number: TJIN2511002414PL01
- Test Date: Nov 17.2025-Nov 24,2025
Has Passed all SGS Tests and Meets The Standards
SGS Test Report
Pet Laminated Steel
- Test Category: Laminated Film Metal Coil
- Product Specifications: 0.45 × 1083
- Report Number: TJIN2511002414PL02
- Test Date: Nov 17.2025-Nov 24,2025
Has Passed all SGS Tests and Meets The Standards
