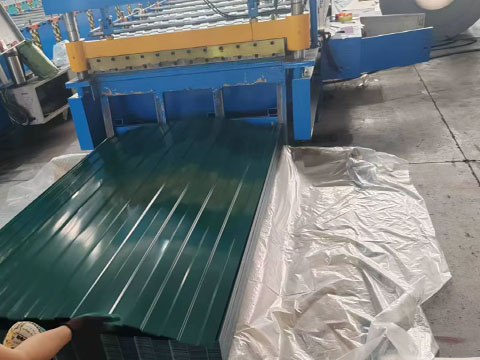

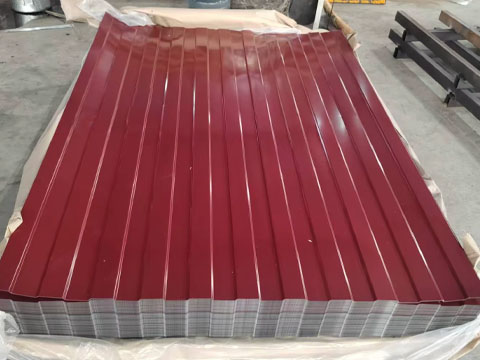

C8 Corrugated Metal Sheet
C8 corrugated metal sheets are low-profile corrugated profiles formed using a cold-rolling process. They are named for their 8mm corrugation height and are the wall panel products with the lowest corrugation height and the widest effective coverage width in the corrugated sheet series.
Our C8 corrugated metal sheets are available in three main coating types: C8 Galvanized Corrugated Sheet, C8 PPGI Prepainted Galvanized Iron Corrugated Sheet, and C8 PPGL Prepainted Galvalume Corrugated Sheet.
Ensure product quality and transportation
The C8 corrugated steel sheet is a building envelope material that combines practicality, durability, and cost-effectiveness. Thanks to its special design, it can effectively withstand extreme weather conditions such as strong winds and heavy snow, and is widely used in countries including Russia, Kazakhstan, and Belarus.

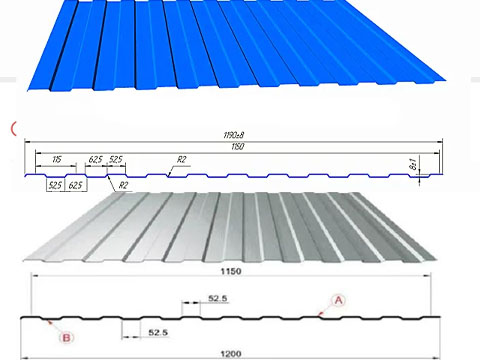

C8 Corrugated Sheet Technical Specifications
| Product Name | C8 Corrugated/Profiled Metal Sheet |
| Thickness | 0.15–0.60mm (common 0.30mm, 0.35mm, 0.40mm, 0.45mm, etc.) |
| Expanded Width | 1250mm |
| Effective Coverage Width | 1150mm |
| Length | 0.5-12m (can be cut to size as needed) |
| Product Type | C8 Galvanized Steel/PPGI/PPGL Corrugated Sheet |
| Corrugation Type | C8 (corrugation height approx. 8 mm) |
| Number of Corrugations | 11 |
| Wave Pitch | 62.5mm |
| Coating | Z30-Z275g/m², AZ30-AZ150g/m² |
| Material | DX51D, SGCC, CGCC, Q195, Q235, etc. |
| Standard | ASTM A653/A653M, JIS G3302, EN 10143, GB/T 2518-2008 |
| Color | According to RAL color chart (e.g., RAL 8017, RAL 7024) |
| MOQ | 10 Tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |

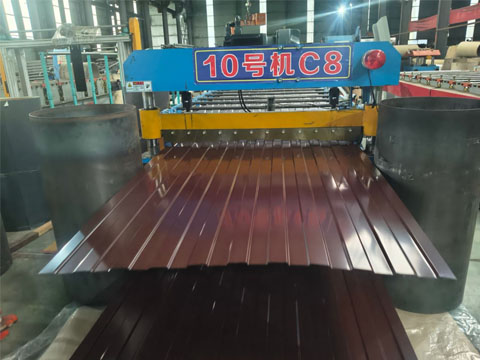

Production Video
Our Core Products
C8 Galvanized Steel Corrugated Sheets
- C8 galvanized steel corrugated sheets are C8-type corrugated sheet products made from hot-dip galvanized steel as the base material, which are cold-rolled into a corrugated profile for direct use.
- The zinc coating thickness can be customized as needed (typically 30–275 g/m²), offering excellent corrosion resistance and structural strength. It is suitable for cladding and temporary construction projects in general atmospheric environments.

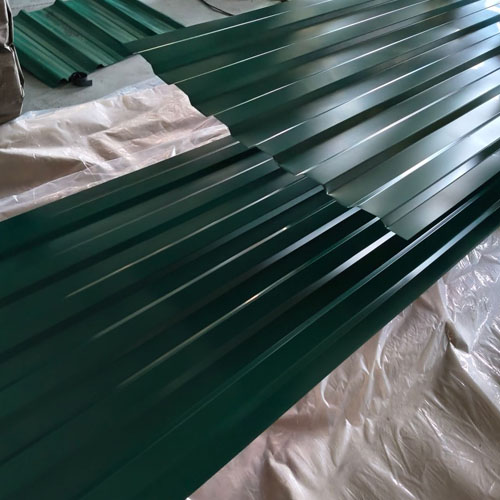

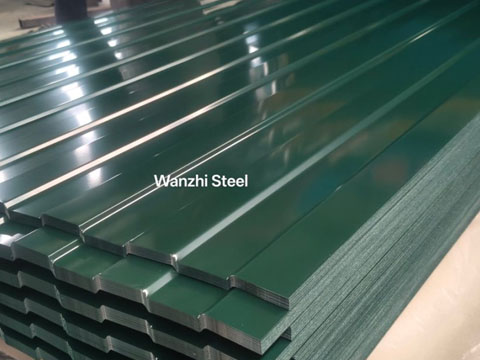

C8 PPGI Corrugated Sheets
- C8 PPGI corrugated sheets are colored corrugated sheets produced by applying an organic coating to the surface of hot-dip galvanized steel (GI), baking and curing the coating, and then cold-rolling the material into a corrugated profile.
- The paint coatings include PE, SMP, HDP, and PVDF, with a wide range of colors available. These sheets offer strong decorative appeal and dual corrosion protection. They are the mainstream choice for most residential and commercial projects.

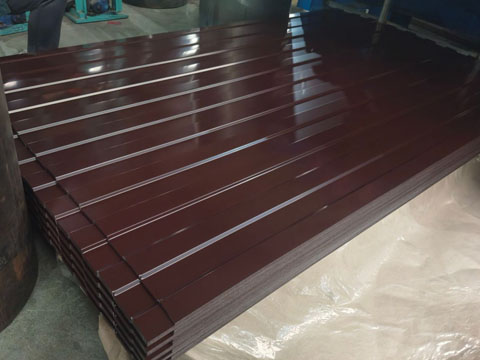

C8 PPGL Corrugated Sheet
- C8 PPGL corrugated sheet is a high-end colored corrugated sheet produced by applying an organic coating to the surface of an aluminum-zinc-coated steel (Galvalume, GL) substrate, followed by cold-rolled corrugation.
- The coating composition is approximately 55% Al + 43.5% Zn + 1.5% Si, providing excellent corrosion resistance, heat resistance, and heat reflectivity, resulting in a longer service life. It is suitable for highly corrosive environments and high-standard projects.
Applications
C8 corrugated metal sheets are classified as wall/lightweight roofing profiles (Wall-Classification Profile) and are widely used in the following scenarios:

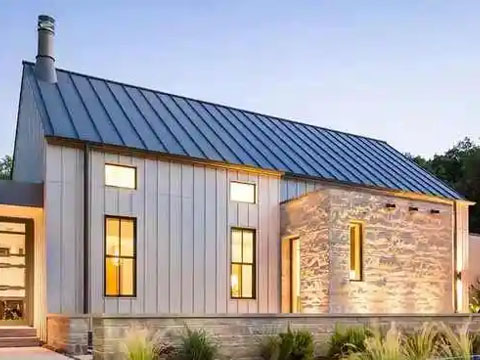

- Residential Buildings: Sloped roofs of villas, sunroom roofs, garage canopies, balcony awnings, etc.
- Commercial and Public Buildings: Store facades, bus stop shelters, exterior walls of event venues, school gymnasium enclosures, etc.

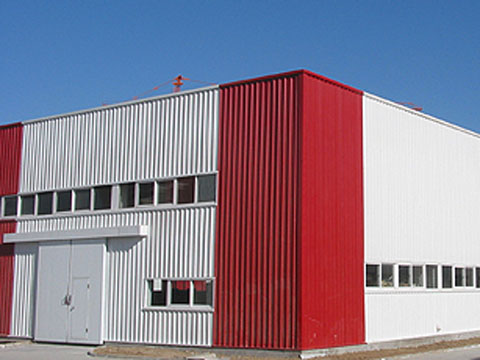

- Industrial Buildings: Exterior walls and roofs of steel-structured factories, enclosure systems for logistics warehouses, and partitions in processing workshops.
- Agricultural Buildings: Greenhouses, livestock barn roofs, agricultural machinery warehouses, and the exteriors of granaries and grain stacks.
- Temporary and Movable Structures: Temporary offices and dormitories at construction sites, container house expansion modules, and standardized modular buildings.
- Municipal and Public Facilities: Street-side barriers, side panels for highway noise barriers, and exterior walls of multi-story parking garages.
C8 corrugated sheets are also commonly used as the metal facing for metal sandwich panels. When combined with polyurethane or rock wool core materials, they provide both thermal insulation and decorative properties.
Our Packaging
- Inner and outer layers are covered with waterproof paper and plastic film to prevent moisture damage during transport and storage;
- Corner guards and edge protectors are installed on both sides to prevent coating damage from impacts;
- Secured with steel strapping; fumigated pallets or custom inkjet printing/labeling are available;
- We support various export shipping methods, including LCL, FCL, and breakbulk.
Our Certifications
Conclusion
We are a professional manufacturer of pre-painted steel coils in China, with our own production lines and roll forming equipment. As a leading supplier of C8 corrugated metal sheets, we are committed to providing our customers with high-quality, consistent products. If you have any needs for C8 corrugated metal sheets or other types of corrugated metal sheets products, please feel free to contact us at any time.
