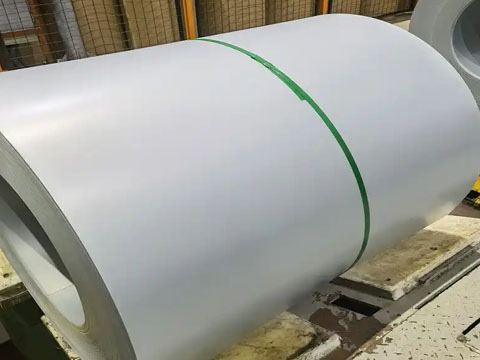

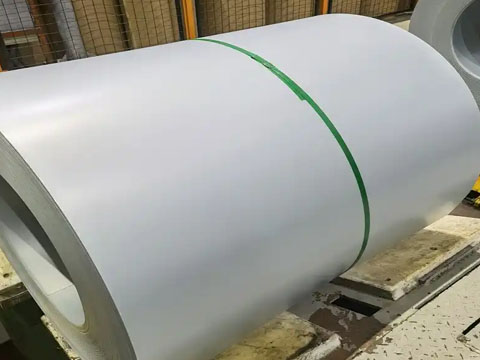

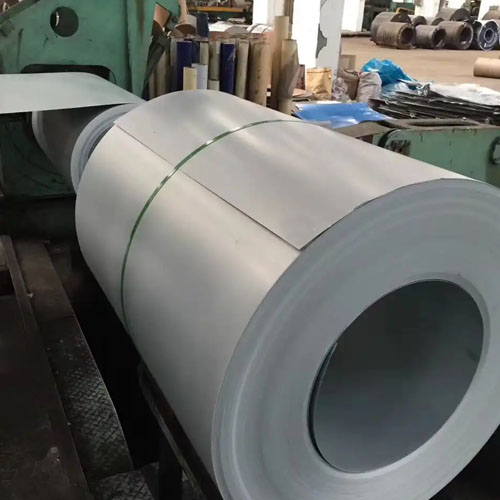

SECC Electro-Galvanized Steel Coil
SECC stands for Electrolytically Galvanized Cold-Rolled Steel Coil. Through an electrolytic deposition process, a uniform and dense zinc layer is formed on the surface of cold-rolled steel sheets. This coating process is more precise and controllable, resulting in a thinner and more uniform coating.
Wanzhi Steel supplies SECC electrolytically galvanized steel coils in a full range of sizes, featuring advanced manufacturing processes and consistent performance.
Ensure product quality and transportation
SECC is an electrogalvanized steel coil classified as a general commercial-grade material under the Japanese JIS G3313 standard and typically features an anti-fingerprint treatment. While retaining the excellent formability of cold-rolled steel, it provides superior corrosion resistance and surface consistency, making it one of the foundational materials in modern industrial manufacturing that offers both performance and cost advantages.
Specifications
| Product Name | SECC Electro-Galvanized Steel Coil |
| Thickness(mm) | 0.4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.2 / 1.5 / 2.0 |
| Width(mm) | 914 / 1000 / 1219 / 1250 (can be slit) |
| Coating Weight | 10-30g/㎡ |
| Surface Treatment | Fingerprint resistant (AF), chromium-free passivation, oil-coated |
| Roll Weight | 3 – 8 tons (customizable) |
| Standard Applied | JIS G3313 |
| Yield strength | 140 – 300 MPa |
| MOQ | 10 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |
SECC Characteristics
- Excellent Workability: SECC has nearly the same ductility as the base metal, making it well-suited for complex forming processes such as stamping, bending, stretching, and flanging.
- High Corrosion Resistance: The zinc coating on the surface of SECC protects the base metal; compared to ordinary cold-rolled steel, SECC offers 3 to 5 times better corrosion resistance in indoor environments.
- Superior Surface Quality: After fingerprint-resistant treatment, the SECC surface exhibits a uniform, fine, light gray matte finish, free of zinc bloom or bright spots, offering a modern and clean visual appearance.
- Versatile Surface: This surface can be used directly for exterior components and is compatible with secondary finishing processes such as spray painting, powder coating, lamination, or printing.
SECC Application Scenarios
- Electronics and Electrical Equipment: Computer cases, server enclosures, power supply enclosures, control panels, and inverter housings.
- Automotive Industry: Fuel tank mounting brackets, interior trim strips, instrument panel frames, filter housings.
- Construction and Hardware: Indoor drainage system components (e.g., rainwater pipe elbows), low-voltage distribution boxes, ventilation duct fittings, toolbox covers.
- Office and Residential Furniture: Steel filing cabinets, metal partitions for office desks, display racks, LED lighting housings.
Application Guidelines
For applications involving long-term exposure to high humidity, acidic or alkaline chemical environments, or those requiring high structural load-bearing capacity (e.g., heavy-duty outdoor brackets), we recommend prioritizing galvalume steel coils, hot-dip galvanized steel coils (SGCC), or pre-painted galvanized steel coils (PPGI).
SECC vs SGCC
| Item | SECC electro-galvanized steel coil | SGCC Hot-Dip Galvanized Steel Coil |
| Production Process | The zinc layer is deposited onto the substrate surface via electrolytic deposition. | High-temperature galvanizing, with molten zinc adhering to the substrate surface. |
| Coating Characteristics | Thin and uniform. | Thick zinc coating, Z30-Z275g/㎡ |
| Surface Appearance | Uniform light gray (fingerprint resistant treatment), no zinc speckles, extremely high flatness. | Bright silvery-white, with visible typical zinc crystal patterns. |
| Corrosion Resistance | General (suitable for dry indoor environments) | Excellent (suitable for humid, outdoor, or semi-outdoor environments) |
| Processing Performance | Higher elongation, more suitable for deep drawing and complex bending. | The coating is relatively hard; micro-cracks may occur during deep drawing. Suitable for general bending and rolling. |
| Typical Applications | Applications include computer cases, control panels, office furniture, electronic components, etc. | Applications include roofing panels, outdoor cabinets, and automotive chassis parts. |
Why Choose Us?
- We are a professional manufacturer of galvanized steel coils with over 15 years of production experience. We have obtained multiple certifications, including ISO 9001, ISO 14001, ISO 45001, and CE.

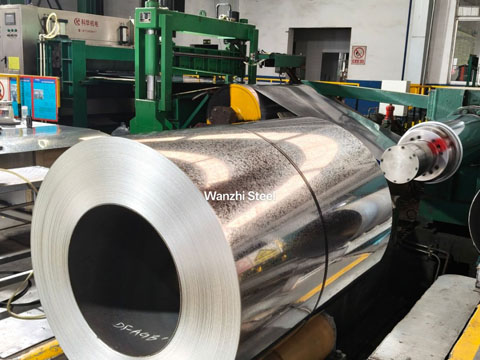

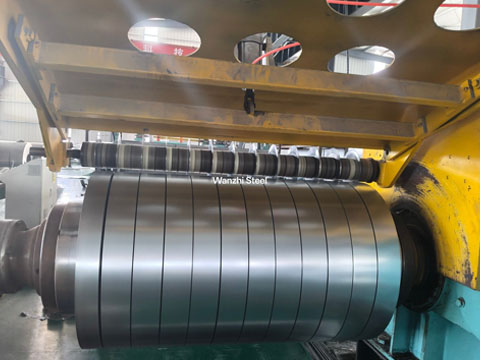

- Equipped with two hot-dip galvanizing production lines and one electrogalvanizing production line, along with a variety of processing equipment, we can supply various types of steel products, including coils, flat sheets, and corrugated sheets.
- Our factory is located in Boxin County, Binzhou City, Shandong Province. We can produce hot-dip galvanized steel coils up to 6 mm thick and have our own testing center to ensure our products meet customer requirements.
Wanzhi Steel is committed to providing customers with high-quality galvanized steel products. We offer four types of zinc bloom patterns, and our diverse product range can meet your various needs. Please feel free to contact us with any inquiries.
