PrePainted Galvalume Sheet

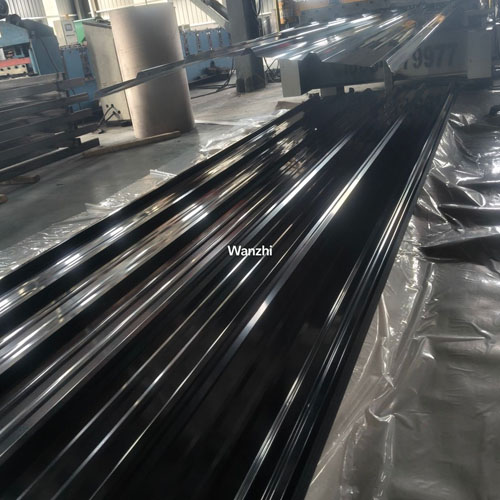

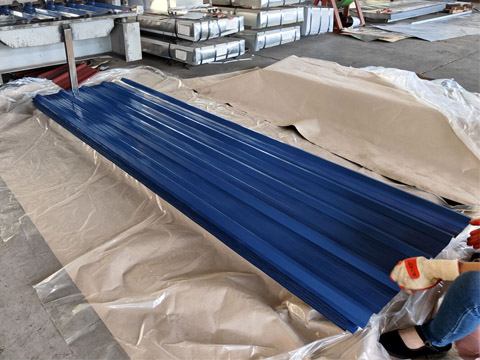

Pre-painted galvanized steel sheets are manufactured from pre-painted galvanized steel coils (PPGL). These sheets are primarily available in two forms: pre-painted galvanized flat sheets and pre-painted galvanized corrugated sheets.
Ensure product quality and transportation

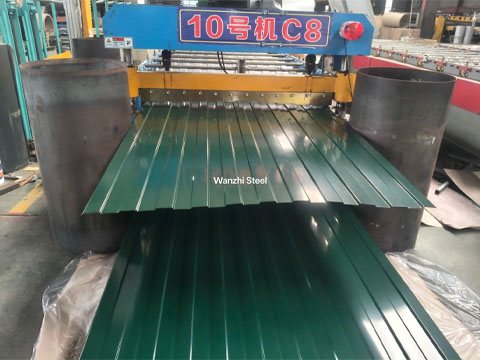

Wanzhi Steel can supply both types of pre-painted galvalume steel sheets(plain sheets and corrugated sheets), as we not only have cutting equipment but are also equipped with multiple roll forming machines. If you have a need for pre-painted galvalume steel sheets, please feel free to contact us at any time.
Advantages of Pre-Painted Galvalume Sheets
- Ready for immediate use: Galvalume steel sheets can be shipped directly to the customer’s country and used as-is, eliminating the need for the customer to seek further processing from manufacturers.
- Excellent corrosion resistance: Prepainted galvalume sheets offer superior corrosion resistance compared to pre-painted galvanized steel sheets; for example, the service life of AZ100+PE is comparable to that of galvanized steel substrates with HDP coating.

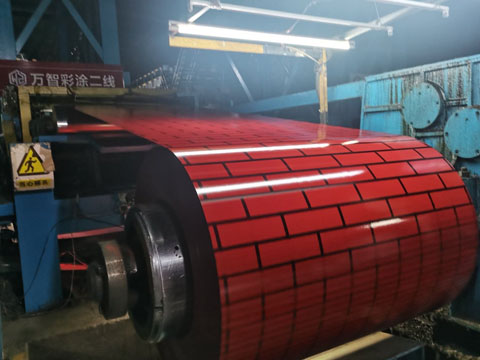

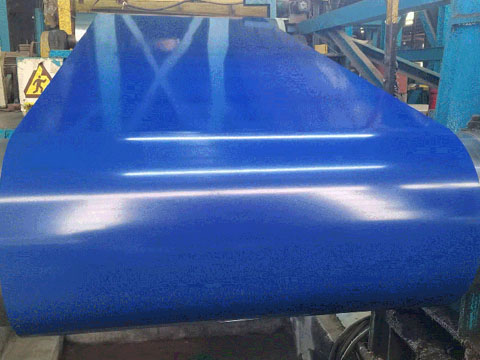

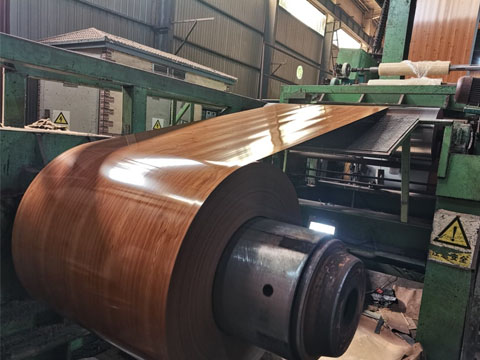

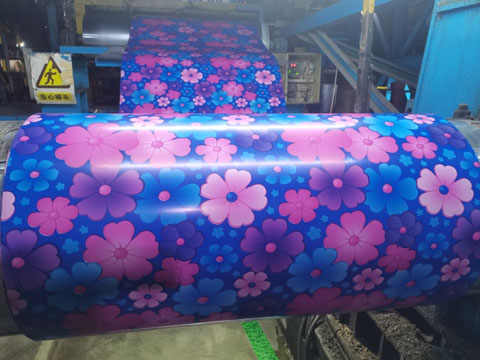

- Highly decorative: The surface paint coating is available in a wide range of colors and can be printed with various patterns, such as grass, floral, brick, stone, and wood textures, and custom patterns can also be created.
Available Specifications
| Product Name | Pre Painted Galvalume Sheet |
| Thickness | 0.15mm – 2.0mm |
| Width | ≤1250mm |
| Length | ≤6m or cut according to customer requirements |
| Type | Plain Sheets and Corrugated Sheets |
| Coating | AZ30-AZ150g/m² |
| Material | DC01+AZ,DC03+AZ,DC04+AZ,DX51D+AZ,DX52D+AZ,DX53D+AZ,S220GD+AZ,S350GD+AZ,S550GD+AZ, etc. |
| Standard | ASTM, EN, GB, JIS ,DIN |
| Color | According to the RAL color chart or custom colors |
| Paint Type | PE, SMP, HDP, PVDF |
| MOQ | 10 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |
Typical Applications
Prepainted Galvalume sheet can be directly used in the following industries:

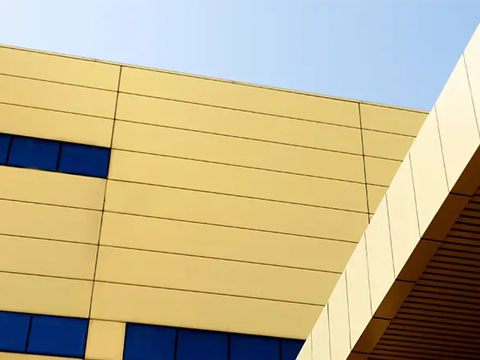

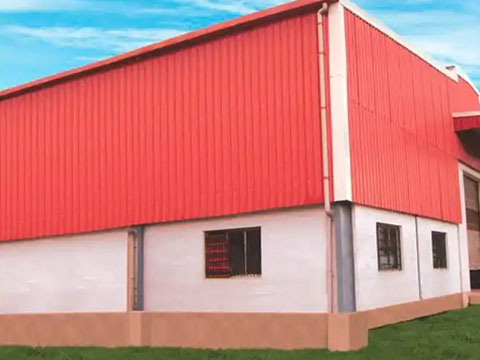

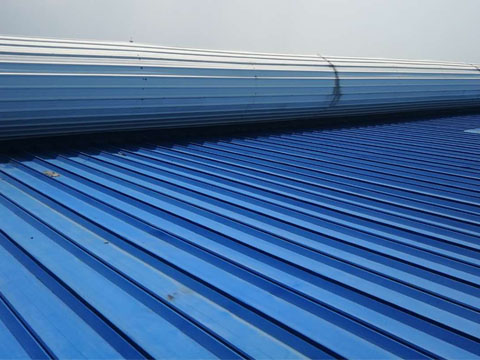

- Construction: For roofing and exterior wall panels in industrial plants, logistics centers, sports venues, and commercial complexes.
- Home Appliance Manufacturing: Suitable for refrigerator side panels, washing machine housings, microwave oven enclosures, air conditioner outdoor unit casings, and electrical distribution cabinet bodies.
- Transportation: Container side and top panels, van body cladding, prefabricated housing panels, and automotive repair shop interior panels.
- Interior Decoration: Used for partition walls in commercial spaces, metal ceilings, signboard backing panels, lightbox enclosures, subway platform edging, and guardrail panels.
Considerations When Selecting Prepainted Galvalume Sheets
Usage Environment
- Different climatic conditions impose varying requirements on coatings. For standard indoor environments (such as home appliances and interior decoration), a polyester (PE) coating is recommended for its cost-effectiveness.
- Humid or mildly corrosive environments (such as livestock farms and coastal industrial facilities): High-durability polyester (HDP) is recommended for superior resistance to moisture and salt spray.
- Highly Corrosive or High UV Environments (e.g., chemical plants, high-altitude regions): Fluorocarbon (PVDF) coatings are recommended for their superior color retention and gloss retention.
Determine Substrate Thickness and Strength Appropriately
- Roofing and wall load-bearing structures: Substrate thickness of ≥0.5 mm and yield strength of ≥350 MPa are recommended.
- Appliance casings and decorative components: Thin sheets of 0.3–0.5 mm can be selected to balance formability and cost.
- Note: Excessively thin sheets are prone to deformation during processing or installation, while excessively thick sheets increase self-weight and cost.
Evaluating Manufacturer Credentials
When purchasing, select manufacturers with legitimate production credentials and a good reputation. Give priority to products certified under ISO 9001 and CE quality management systems to ensure compliance with relevant national standards.
Why Choose Us?
Wanzhi Steel is a company with 15 years of history, having obtained multiple certifications including ISO 9001, ISO 14001, and CE. We consistently supply high-quality products to our customers with integrity.
We operate three pre-painted steel coil production lines, offering both PPGL and PPGI steel coils. Additionally, we have a range of processing equipment, enabling us to provide customers with one-stop procurement solutions and save them time. Our factory is located in Boxin County, Binzhou City, Shandong Province. If you are interested in our products, please feel free to contact us at any time.
