Brushed VCM Sheet

Specifications and Parameters

Item	Specifications
Product Name	Brushed VCM Sheet
Product Thickness	0.3mm – 1.5mm (Commonly used in home appliances: 0.4mm-0.6mm)
Common Width	900mm, 1000mm, 1200mm, 1219mm, 1250mm
Substrate Type	Hot-dip galvanized substrate (GI), Electro-galvanized substrate (EG), Cold-rolled substrate (CR)
Galvanized Coating Weight	30–275g/m² (Commonly used in home appliances: Z60, Z80, Z100, Z120)
Film Type	PVC film, PET film
Film Thickness	80μm – 200μm (Commonly used: 100μm, 120μm, 150μm)
Surface Finish	Straight wire brushed, random wire brushed, snowflake sand brushed, cross brushed, custom
Brushed Color	Silver gray brushed, champagne gold brushed, rose gold brushed, black titanium brushed, bronze brushed, custom colors
Structure	Substrate → Chemical treatment layer → Adhesive layer → PVC/PET functional film → Surface protective layer
Supply Form	Steel coil / Sheet / Slit strip
Coil Weight	3–8 tons, coils (as per customer requirements)
Inner Diameter	508mm (20 inches) / 610mm (24 inches)
Sheet Size	1000×2000mm, 1219×2438mm, customized as per customer requirements
Adhesion	Grade 0 (Cross-cut test, GB/T 9286)
Scratch Resistance	≥2H (Pencil hardness)
Salt Spray Test	≥500 hours (Zipper plated substrate + passivation treatment)
MOQ	25 tons

Features of Brushed VCM Steel

1. Brushed Metal Texture: The brushed texture transforms the rather plain surface appearance of ordinary metal sheets, giving them a more pronounced metallic look. It is the ideal solution for high-end home appliances that aim to “reduce costs without compromising quality.”

2. Customizable Textures: There are various brushed surface effects available. We can adjust the brushing direction, texture density, texture coarseness, color, gloss level, and more, offering a wide range of appearances to meet the diverse needs of home appliance products.

3. Scratch-Resistant, Wear-Resistant, and Durable: The surface film of VCM panels has high hardness, making them resistant to scratches from daily cleaning, wiping, and friction with hardware. Their scratch resistance is 2–3 times higher than that of PCM color-coated sheets.

4. Chemical Resistance: PVC/PET films exhibit excellent resistance to common chemicals such as acids, alkalis, detergents, and alcohol. Unlike ordinary coatings, they will not corrode, discolor, or peel off. It performs reliably in both greasy kitchen environments and humid bathroom conditions.

5. Excellent Processability: Brushed VCM utilizes highly flexible film and specialized adhesives, combined with deep-drawing-grade substrate, enabling it to withstand deep-processing operations such as bending, stamping, rolling, and stretching.

Brushed VCM Sheet Applications

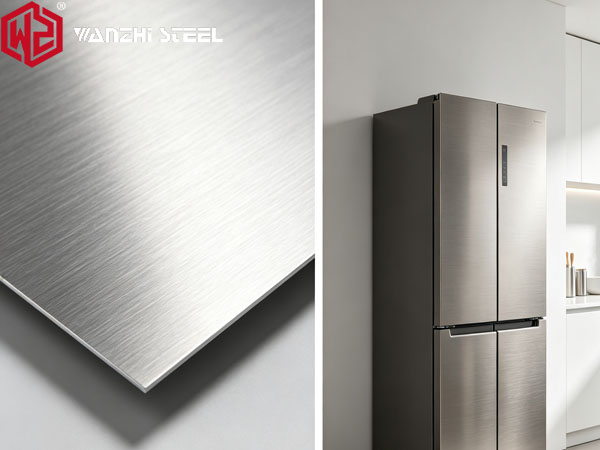

• High-end Home Appliances: Front panels and side panels for French-door refrigerators; front panels for front-loading washing machines; front panels for built-in air conditioners; doors for wine coolers; front panels for dish sanitizers; front panels for microwaves.
• Kitchen Appliances: Front panels for range hoods; oven doors; front panels for dishwashers; front panels for built-in steamers; outer casings for rice cookers.
• Bathroom Appliances: Water heater casings, bathroom heater panels, bathroom cabinet doors.
• Commercial Refrigeration: Supermarket freezer panels, refrigerated display cases, convenience store beverage coolers, ice cream freezers.
• Elevators and Interiors: Elevator car wall panels, floor indicator panels, escalator side panels.
• High-End Furniture: Cabinet doors, sliding wardrobe doors, office filing cabinets, display cabinets.

Brushed VCM Steel vs. Brushed Stainless Steel

Although both can achieve a brushed metal appearance, their product structures are completely different, and they are essentially distinct products.

Comparison	Brushed VCM Sheet	Brushed Stainless Steel
Material	Cold-rolled steel coil/galvanized steel coil + PVC/PET film	Pure metal (stainless steel)
Brushed Finish	Formed via surface decorative film	Stainless steel surface machined to form
Appearance Options	More flexible colors and textures	Natural color of stainless steel or with a slight metallic sheen
Weight	Depending on substrate specifications	Typically higher price
Cost	High cost-performance ratio	Higher cost
Home Appliance Applications	Very common	Commonly used in high-end and specific products
Surface Design	Colors and textures can be customized	Relatively limited texture options

For home appliance manufacturers, if the goal is to achieve the visual effect of brushed stainless steel while also requiring a wider range of colors and decorative designs, Brushed VCM is the better choice.

Why Choose Us?

• We have specialized in steel for home appliances for 15 years and have a well-established supply chain system that enables us to quickly produce VCM steel according to customer specifications. We have been supplying products to home appliance manufacturers in the Middle East, South America, and other regions for many years.
• We possess a complete industrial chain for galvanizing and film coating, with in-house production and quality control of the substrate to ensure material consistency from the source. Every batch of products undergoes rigorous factory testing (including thickness, adhesion, hardness, scratch resistance, salt spray resistance, and color difference).
• Backed by a team of experienced technical engineers, we can recommend the most suitable base material grades and film types based on customers’ processing requirements (such as bending radius, punching depth, and stretch ratio), and provide recommendations for processing parameters.
• We have obtained multiple certifications, including ISO 9001, ISO 45001, ISO 14001, CE, and SGS, and we consistently uphold integrity in our business operations.
