Wood Grain PPGI/PPGL Steel Strip
Our 3D wood-grain finished steel strip products include wood-grain PPGI steel strips, wood-grain PPGL steel strips, and wood-grain aluminum-steel strips. They feature a wide variety of wood-grain patterns, which can also be customized. These products offer not only excellent corrosion resistance but also strong decorative appeal. They meet the decorative and structural needs of various industries and applications, combining practicality with aesthetic value.
Ensure product quality and transportation
Our 3D wood-grain PPGI and PPGL steel strips use high-quality hot-dip galvanized steel coil or galvalume steel coils as the base material. Through multiple precision printing processes, realistic natural wood grain textures are reproduced on the surface, resulting in decorative steel strip coils that combine the strength of metal with the aesthetic appeal of wood.
Product Specifications
| Product Name | Wood Grain PPGI/PPGL Steel Strip |
| Substrate type | PPGI (Hot-dip galvanized steel), PPGL (Aluminum-zinc coated steel) |
| Thickness | 0.12mm – 1.2mm |
| Width | 20mm – 600mm |
| Roll weight | 1 ton – 5 tons |
| Paint coating type | PE, SMP, HDP, PVDF |
| Wood grain pattern | 150+ wood grain patterns including oak, walnut, cherry, teak, maple, and pine |
| Gloss level | 10° – 70° (60° gloss meter) |
| MOQ | 10 TONS |
Wood Grain Patterns

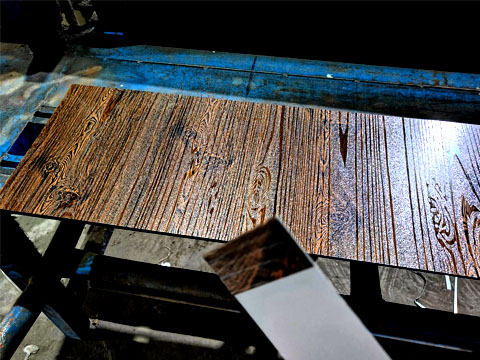

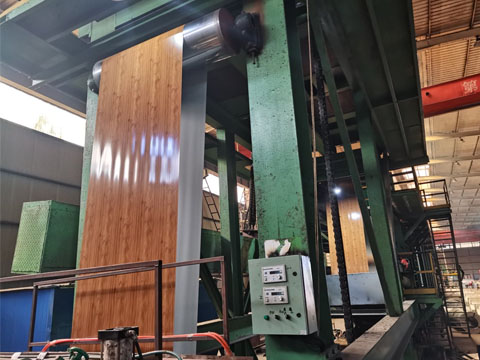

Production Process
- Substrate Preparation: High-quality PPGI or PPGL steel coils are selected and undergo chemical passivation and phosphating treatments to enhance coating adhesion and rust prevention capabilities.
- Multiple Precision Printing: Using a roller-coating printing process, custom wood-grain ink is evenly applied to the substrate surface through multiple printing stages.
- Protective Layer and Surface Treatment: A transparent, wear-resistant clear coat (polyester or fluorocarbon) is roller-coated onto the surface, with options for matte or high-gloss curing.
- Final Curing: The steel strip passes through a 40–60-meter-long hot-air curing oven (up to 240°C) to fully cross-link the coating.
- Slitting: The wood-grain steel coil is cut into narrow steel strips of specified widths using a high-speed slitting machine, according to customer requirements.
Production Video
Note
Our wood-grain steel strip coils can be produced with a single-sided wood grain or a double-sided wood grain; naturally, the double-sided option is more expensive, so you can choose based on your needs.
Additionally, you can achieve a wood grain effect on steel coils by applying a laminated wood grain film. These metal coils with laminated wood grain film offer excellent corrosion resistance, are wear- and scratch-resistant, and have a longer service life.
Wood-Grain Steel Strip vs. Wood-Grain Steel Coil vs. Wood-Grain Steel Sheet
| Comparison Dimensions | Wood grain steel strip | Wood Grain Steel Coil | Wood Grain Steel Sheet |
| Definition and Form | Narrow-width coils, typically ≤600mm wide, slited and delivered in rolls. | Wide Master Coil (width > 600mm, commonly 1000-1250mm). | Straightened and cut to fixed length (e.g., 2m x 1m). |
| Typical Thickness/Width | 0.2-0.8mm × 20-600mm | 0.3-1.2mm × 1000-1250mm | 0.4-1.3mm, dimensions can be cut to size as needed. |
| Processing Advantages | Suitable for continuous stamping, roll forming, pipe making, edge banding, and other processes requiring long or narrow materials, offering high material utilization. | Suitable for large-scale uncoiling and blanking production lines, used for mass production of automotive interiors, home appliance panels, door panels, etc. | No uncoiling equipment required, suitable for small batches, on-site construction, or single-sheet applications. |
| Storage and Transportation | Compact roll shape, facilitating stacking and handling, with minimal space occupied per unit area. | Single coil weight is large (5-20 tons), requiring specialized lifting equipment and indoor upright placement to prevent collapse. | Laying flat and stacking can easily cause scratches; padding is required during transportation. Single sheet handling is convenient. |
| Cost Structure | Including slitting costs, the unit price is higher than steel coils of the same specification; however, it reduces end-use waste. | Master coil has the lowest cost per unit area, suitable for secondary processing in large-scale factories. | Includes cutting, packaging, and storage costs; unit price is higher for small batches. |
Applications of Wood-Grain Steel Strip

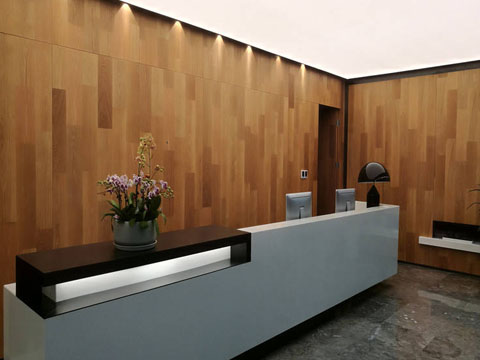

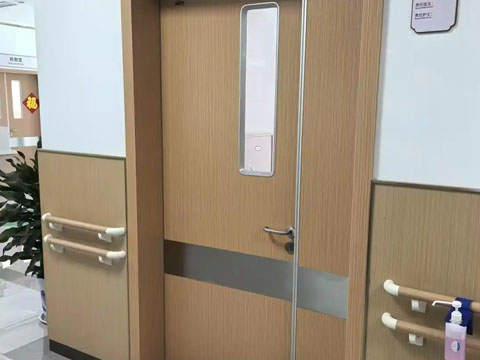

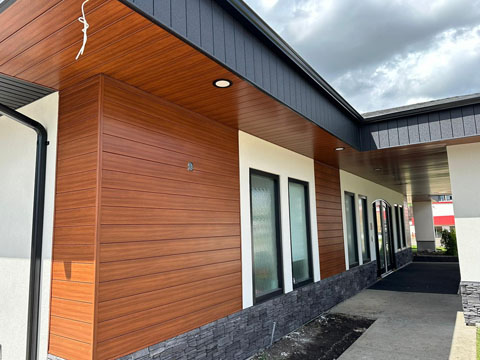

- Interior and Exterior Building Decoration: Curtain walls and integrated exterior wall insulation and cladding panels (as a substitute for aluminum panels or wood), interior ceilings and partitions, door and window trim and baseboards, roller shutters, and blinds.
- Furniture and Home Furnishings: Cabinet doors, sliding wardrobe doors, metal furniture frames and cabinet trim, bed frames, and sofa leg trim.
- Transportation: Interior panels for buses and RVs, cabin wall panels for ships, protective panels for high-speed train luggage racks, etc.
- Industrial Applications: Advertising display stands, promotional booths, equipment enclosures, workshop partitions, warehouse shelving, packaging containers, etc.
Our Packaging
We use waterproof and moisture-resistant kraft paper for the inner packaging, tightly wrapping the steel coil to prevent moisture absorption. The outer layer is made of thickened galvanized steel plates, secured with custom side guards and high-strength steel straps. Packaging can be either horizontal or vertical. If you have specific requirements (such as single-coil weight or coil diameter), please let us know, and we will accommodate your needs.
Why Choose Us?
- Extensive Experience: With over 15 years of experience, we are certified under ISO 9001, ISO 14001, and CE.
- Highly Customizable: In addition to wood-grain steel, we also supply printed steel coils featuring a variety of patterns, including stone, brick, grass, and floral designs.
- Strict Quality Control: Before shipment, our products undergo rigorous testing, including salt spray, T-bend, impact, and color difference (ΔE < 1.0) tests.
- Excellent Customer Reputation: Our products have been exported to over 120 countries, including Russia, Turkmenistan, Iran, Lebanon, Libya, Saudi Arabia, Sweden, Georgia, and Guatemala. We receive positive feedback and have established repeat business with many customers.
If you are looking to purchase wood-grain steel—whether in coil, sheet, or strip form—we can provide it. Contact us immediately for more details.
