q235 steel plate
q235 steel hot rolled steel plate

Q235 steel

Q235 steel is a low-carbon steel. The Q in Q235 stands for yield limit, and 235 stands for 235MPa. The yield value of Q235 steel decreases as the thickness of the material increases.

Thickness: 1.5mm-100mm
Width: 1000mm-2500mm
Length: 2000mm-12000mm
Grade: Q235A,Q235B,Q235C,Q235D

Ensure product quality and transportation

    Q235 steel is a widely used carbon structural steel in China. Q235 steel has the characteristics of high strength, good plasticity, good welding performance, etc. And the price cost is lower than other steels.

    Q235 steel can be rolled into wire rods, square steel, flat steel, angle steel, I-beam, channel steel, etc. It can meet the needs of different projects.

    Specifications of Q235 steel

    Product name Q235 Steel
    Thickness 1.5mm-100mm
    Width 1000mm-2500mm
    Length 2000mm-12000mm
    Grade Q235A,Q235B,Q235C,Q235D
    Yield strength ≥235MPa
    Tensile strength 375-460MPa
    Elongation 26%
    Impact energy 27J
    Density 7.85g/cm³
    Hardness 155HB
    Surface treatment Rust removal, spraying and galvanizing, etc.
    Package Standard Export Package
    Transportation Container、Bulk Ship、Train Or as your request

    Chemical composition of Q235 steel

    Type C Mn Si S P Impact test
    Q235A ≤0.22% ≤1.4% ≤0.35% ≤0.050% ≤0.045% No impact test
    Q235B ≤0.20% ≤1.4% ≤0.35% ≤0.045% ≤0.045% Impact test above 20 degrees
    Q235C ≤0.17% ≤1.4% ≤0.35% ≤0.040% ≤0.040% Impact test above 0 degrees
    Q235D ≤0.17% ≤1.4% ≤0.35% ≤0.035% ≤0.035% Impact test above -20 degrees

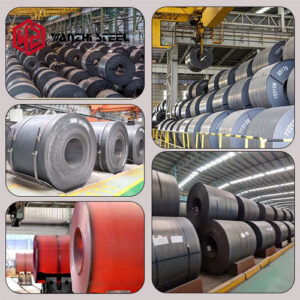

    Wanzhi q235 steel plate stock

    Characteristics of Q235 steel

    1. High strength

    Q235 steel has high yield strength and strong bearing capacity, which can meet the needs of general steel structures.

    2. Excellent plasticity

    Q235 steel has good ductility and toughness, and can maintain the integrity and stability of the structure under different engineering conditions.

    3. Good processing performance

    Q235 steel is easy to process, and cutting, bending, welding, etc. are all convenient.Various processing can be carried out during the manufacturing process to improve production efficiency and reduce production costs.

    4. Excellent welding performance

    Q235 steel has excellent welding performance. Q235 steel does not require special preheating and post-weld heat treatment during welding. It can form uniform and firm welds during the welding process and is suitable for a variety of welding structures.

    5. Low cost

    Due to the convenience of smelting, Q235 steel is relatively low in price compared to other steels.

    q235 steel sheets
    q235 steel sheets

    Application of Q235 steel

    1. Construction field

    In the construction field, Q235 steel can be used as a load-bearing material for buildings and is often used to make steel structures, beams, columns, supports, stairs, handrails, roofs and other parts.

    2. Manufacturing field

    Q235 steel has the characteristics of high strength and good stability.It is often used in the manufacturing field to manufacture various mechanical equipment, machine parts, molds, bearings, gears, bolts, etc.

    3. Ship field

    Q235 steel is mainly used as the main load-bearing structural material of the hull in the ship field, such as hull, deck, ship accessories, etc.

    4. Bridge field

    In the bridge field, Q235 steel is also used as the main load-bearing material of the bridge, such as piers, bridge decks, main beams, etc. It can improve the bearing capacity and wear resistance of the bridge.

    5. Pipeline field

    In the pipeline field, Q235 steel is mainly used in the manufacture of various pipelines, including oil pipelines, natural gas pipelines, chemical pipelines, etc.

    FAQ abou q235 steel

    What are the equivalent steels of Q235 steel?

    Country China USA European Union U.K. Japan France Italy Norway Spain
    Standard GB ASTM DIN EN 10025-2 BS EN 10025-2 JIS AFNOR UNI NS UNE
    Grade Q235 A36 S235JR S235JR SM400A,
    SS400    		 E24-2 Fe360B NS12123 AE235B-FN

    What is the difference between Q235a and Q235b?

    • The biggest difference between the two is that Q235A steel does not undergo impact testing, while Q235B steel undergoes 20-degree impact testing.
    • In addition, the sulfur content of Q235A steel is higher than that of Q235B, and the toughness of Q235B steel is better than that of Q235A steel.

    Will Q235 steel rust?

    Any steel will rust, some steels are easy to rust, and some steels are not easy to rust.Q235 steel itself is not corrosion-resistant, and it is easy to rust without surface treatment.The surface treatment of wanzhi steel for rust prevention is galvanizing.

    What are the differences between Q235 steel and Q345 steel?

    • One obvious difference between the two is the yield value. The yield value of Q235 steel is about 235MPa, and the yield value of Q345 steel is about 345MPa.
    • In addition, Q235 is ordinary carbon steel, and Q345 is low alloy steel.It should also be noted that the chemical composition of Q235 steel and Q345 steel is different.
    • The above differences determine the different prices of the two steels. The price of Q235 steel is lower than that of Q345 steel.
