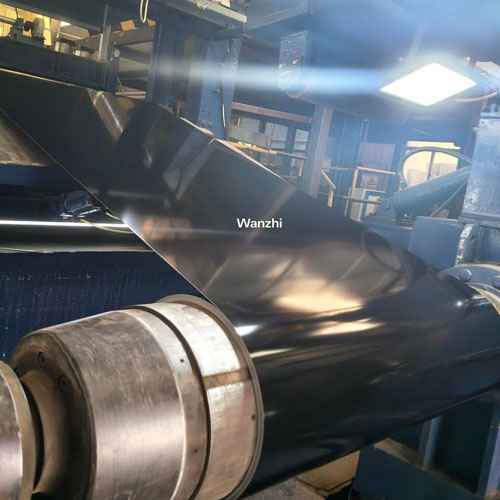

High Gloss PrePainted Steel Coil

High-gloss pre-painted steel coils are color-coated steel coils with a high-gloss finish. They are manufactured using GI or GL as the substrate to produce high-gloss PPGI or PPGL steel coils.

Compared to surface finishes such as matte or wrinkle, high-gloss pre-painted steel coils have a smoother surface and a more pronounced gloss, capable of presenting clear, uniform colors and a striking visual effect.

Specification

Product Name	High Glossy PrePainted Steel Coil
Substrate Thickness	0.13–1.20mm
Width	600–1250mm
Steel Grade	DX51D, DX52D, SGCC, S250GD, S280GD, S350GD
Metal Coating	Z30–Z275 g/m², AZ30 – AZ150 g/m²
Topcoat Thickness	10–30μm
Backcoat Thickness	5–20μm
Gloss	≥70%
Paint Type	PE, SMP, HDP, PVDF
Color	RAL / Custom Color
Pencil Hardness	≥2H
T-bend Performance	≤3T
Roll Weight	3–8 tons, commonly 4–6 tons, can be customized according to customer requirements.
Coil Inner Diameter	508 / 610 mm
MOQ	10 tons

High Gloss PPGI and PPGL Coils

Both PPGI and PPGL steel coils can have a high-gloss surface, but there are differences between them, mainly as follows:

Item	High Gloss PPGI Coil	High Gloss PPGL Coil
Substrate	Galvanized steel coil	Aluminized zinc-coated steel coil
Metallic coating	Zinc-based	Based on elements such as aluminum and zinc
Surface	High Gloss	High Gloss
Anti-corrosion system	Zinc layer + organic coating	Aluminum-zinc layer + organic coating
Appearance	High gloss, vibrant color	High gloss, vibrant colors
Outdoor application	Suitable for	Especially suitable for scenarios with high durability requirements
Cost	Generally more economical	Typically slightly higher
Key selection factors	Considerations regarding cost, processing performance, and operating environment	Durability requirements, usage environment, cost

When choosing between PPGI and PPGL, the appropriate substrate should be selected based on the end application, corrosion resistance requirements, and processing method. A more reasonable selection approach is: Application → Environment → Required Durability → Substrate → Coating System → Gloss Level

For projects requiring a high-gloss finish, it is recommended to confirm the following during procurement:

• Gloss test angle and target value
• Topcoat type
• Topcoat thickness
• Color and color difference requirements
• Surface protective film requirements
• Subsequent molding method

Determining these parameters can help avoid purchasing products that do not meet project requirements.

High Gloss PrePainted Steel Coil Advantages

• High Decorative Appeal: The high-gloss surface enhances light reflection, making the steel sheet’s color appear more vivid. With its strong decorative appeal, it is suitable for products with high aesthetic requirements.
• Strong Corrosion Resistance: Whether it is high-gloss PPGI or high-gloss PPGL, their base materials possess strong corrosion resistance. Combined with the surface paint coating, their corrosion resistance is further enhanced.
• Suitable for Further Processing: Carefully selected base materials and coating systems can meet the requirements for further processing, such as shearing, bending, and roll forming.
• Wide Range of Colors Available: High-gloss color-coated steel coils can be provided in various colors according to project requirements, including common RAL colors and custom colors provided by customers.

High Glossy vs. Matte PrePainted Steel Coil

The main difference between High Gloss and Matte steel coils is the surface reflectivity.

Comparison Items	High Gloss	Matte
Surface Finish	High gloss, noticeable reflections	Matte, low reflectivity
Color Performance	Brighter	Softer
Visual Effect	Vivid, modern	Sophisticated, understated
Surface Reflection	Higher	Lower
Common Applications	Door panels, roofing, walls, home appliances	Building walls, decorative panels, etc.
Purchasing Focus	Gloss, color, surface quality	Gloss, texture, surface uniformity

Applications

1. Building Exteriors and Roofs: Used in the manufacture of metal curtain walls, corrugated roofing panels, metal sandwich panels, ceiling panels, and more.
2. Home Appliance Manufacturing: Exterior components for high-end appliances, such as refrigerator door panels, washing machine housings, and microwave oven panels.
3. Transportation: Automotive interior components, vehicle body panels, and shipping containers.
4. Interior Decoration: High-end furniture panels, partition walls, and elevator cab trim.
5. Doors: High-gloss color-coated steel coils are suitable for door panels, garage doors, roll-up doors, and other metal door products.

FAQ

Q1: What are the gloss grades for pre-painted steel coils?

Gloss is measured in gloss units (GU) and is classified into high gloss (≥70 GU), medium gloss (50–70 GU), and low gloss (30–50 GU). The gloss range for matte pre-painted steel is <30 GU.

Q2: Can all types of paint (PE/HDP/PVDF) be used to create a high-gloss finish?

Yes, the gloss level of pre-painted steel coil surfaces is controlled by the addition of matting agents and is not necessarily related to the type of paint; all of these paint types can achieve either a high-gloss or matte finish.

Q3: Are high-gloss pre-painted steel coils suitable for home appliances?

These products typically have high requirements for color, surface flatness, gloss consistency, and formability. High-gloss pre-painted steel coils meet these requirements and can therefore be used for home appliance housings and decorative panels. Another product well-suited for home appliances is VCM steel, which can be coated with a high-gloss film to achieve a near-mirror finish.

Q4: Does a high-gloss surface affect the formability of steel coils?

Formability is not affected by whether the surface is high-gloss or not. The formability of steel coils is primarily related to the base steel grade, yield strength, tensile strength, elongation, and coating system. For example, DX51D, DX52D, and structural-grade steels have different mechanical properties.

For more FAQs on pre-painted steel coils, please refer to this page → https://wanzhi-steel.com/faq/faq-about-color-coated-steel/
