0.8 mm Galvanised Steel
Wanzhi Steel’s 0.8 mm thick galvanised steel products include steel coils, steel plates, steel strips, steel pipes, etc. If you have any needs for galvanised steel products, please contact us.
Coil/Sheet Width: 600mm – 1500mm
Strip Width: 20mm – 300mm
Length: Cutting according to customer requirements
Zinc coating: 30-275g/m²
Ensure product quality and transportation

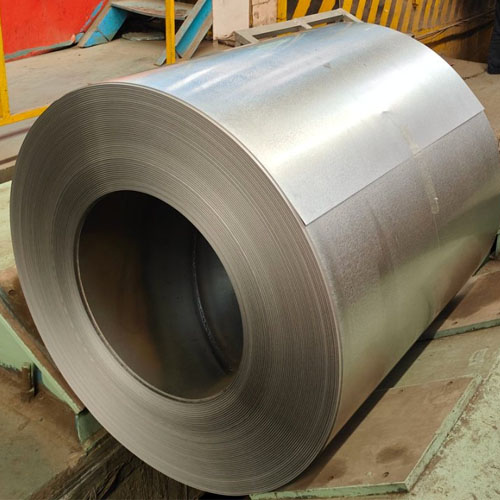

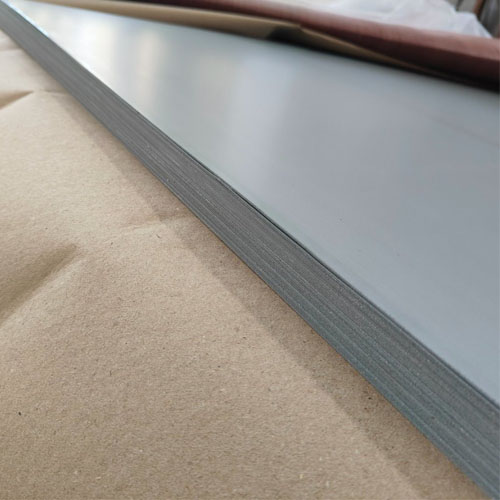

0.8mm galvanized steel coils or sheets are relatively thin metal materials that are easy to process. Their surfaces come in four types: no zinc bloom, small zinc bloom, standard zinc bloom, and large zinc bloom.
Galvanized steel coils of this thickness are widely used in applications such as ventilation ducts, electrical distribution boxes, equipment enclosures, and decorative panels.
0.8mm Galvanised Steel Specifications
| Product name | 0.8 mm Galvanised Steel |
| Width | coil/sheet: 600mm – 1500mm |
| strip: 20mm – 300mm | |
| Length | Cutting according to customer requirements |
| Thickness | 0.8mm |
| Zinc coating | 30-275g/m² |
| Material | DX51D-DX54D+Z, Q235+Z, SPCC/SECC/SGCC+Z, A653/A653M+Z, etc. |
| Standard | EN, GB, JIS, ASTM |
| Spangle type | Zero spangle, small spangle, regular spangle, large spangle |
| Processing service | Cutting, punching, bending, press forming, welding, etc. |
| Surface treatment | Passivation, oiling, pre-painting, etc. |
| MOQ | 10 tons |
| Packaging | Standard export package or as per your requirements |
0.8mm Galvanised Steel Applications

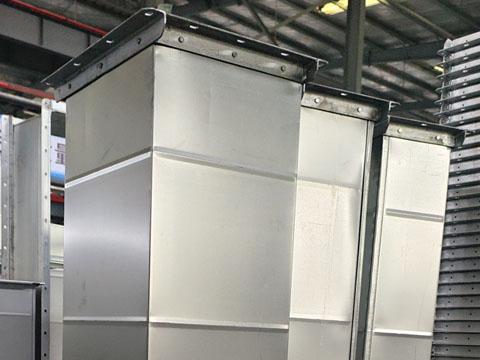

- HVAC Ductwork: HVAC systems typically use 0.8-millimeter galvanized steel sheets to manufacture ducts, duct fittings, and other components. Because 0.8 mm is a moderate thickness, it is easy to bend (DX51D meets these requirements).
- Home Appliances: Galvanized steel sheets of this thickness are commonly used for the back panels of refrigerators or washing machines. The zinc coating is generally greater than 100 g/m², and the base steel grades typically selected include DX52D, DX53D, SECC, and SGCC.
- Roofing or Wall Panels: 0.8 mm galvanized steel coils are formed into corrugated sheets or cut into flat sheets, which are commonly used for building roofs and walls (flat sheets are also used for walls).

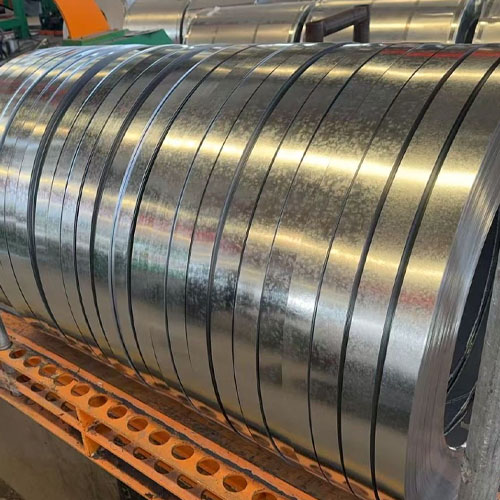

- Structural Steel: Many customers purchase our 0.8 mm galvanized steel strip products (produced by slitting steel coils) to fabricate C-channel and Z-channel sections, which are commonly used in light-gauge steel-frame houses and industrial buildings.

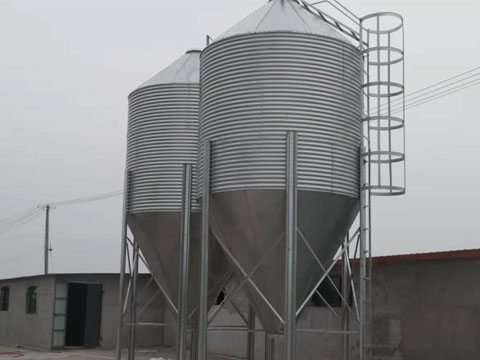

- Other Applications: Grain silos, steel silos, fencing, office cabinets, storage cabinets, and equipment enclosures; additionally, the surface can be coated with paint to produce pre-painted steel coils. For specific applications, please refer to this page.
Product Recommendations for Different Use Cases
| Application Areas | Recommended Substrate Material | Recommended Zinc Coating |
| HVAC Ductwork and Fittings | DX51D+Z | Z100-Z120 |
| Refrigerator Back Panels | DX52D+Z / SECC | Z60-Z100 |
| Deep-Drawn Appliance Liners | DX53D+Z | Z80-Z120 |
| Roofing/Wall Panels | DX51D+Z / SGCC | Z120-Z180 |
| Light Steel Keel | DX51D+Z / Q235+Z | Z100-Z140 |
| Automotive Interior Parts | SECC / SGCC | Z60-Z100 |
How to Improve the Corrosion Resistance of Galvanized Steel
1. Increase the thickness of the zinc layer
The thicker the galvanized layer, the stronger the corrosion resistance. Choose the zinc layer that suits you according to the environment in which you use the galvanized steel. You can contact us to recommend the zinc layer for you.
2. Passivation treatment
After galvanizing, a passivation film is formed on the surface of the zinc layer, which can significantly improve the corrosion resistance of the zinc layer.
3. Applying organic coating
Applying an organic coating on the surface of galvanized steel to make pre-painted galvanized steel can further isolate the zinc layer from the external corrosive medium and improve its corrosion resistance.
Common paints for galvanized steel are PE, HDP, SMP, and PVDF. Among them, PVDF has the strongest weather resistance and the greatest help to corrosion resistance. Of course, the price is also the most expensive.
Price of 0.8mm Galvanized Steel
The price of 0.8-millimeter galvanized steel is influenced by various factors, such as the base material, the galvanizing process (hot-dip galvanizing or electrogalvanizing), coating thickness, purchase volume, exchange rates (USD to RMB), product type, and so on. Let’s focus on the impact of product type.
Products such as galvanized steel flat sheets, galvanized corrugated sheets, and galvanized steel strips are all processed from galvanized steel coils (the raw material). All other factors being equal, galvanized steel coils are less expensive, while the other products incur additional processing costs.
Prices for galvanized steel coils and sheets range from $650 to $900, though prices vary by time period. Please contact us for specific pricing details!
Why Choose Us?
- Wanzhi is a manufacturer with more than 15 years of export experience and has passed ISO 9001, ISO14001 and other certifications.
- Three advanced galvanized steel production lines with large production capacity and high quality ensure fast and thick large-volume orders.
- With a strict testing process, the galvanized steel will be tested for chemical composition, zinc layer, specifications, bending performance and other aspects to ensure that the product meets customer requirements. And support third-party testing.
- Customers are online 24/7, answering customer questions in a timely manner, and the quotation is very timely.
Wanzhi Steel is a professional galvanized steel manufacturer in China with more than 15 years of production experience. In addition to 0.8mm thick galvanized steel, we can produce as long as the thickness is less than 6mm. If you need galvanized steel products, please contact us.
