SGCC Laminated Steel Coil

Specifications

Item	Specification
Product Name	SGCC Laminated Steel Coil
Substrate	SGCC Hot-Dip Galvanized Steel
Standard	JIS G3302
Steel Grade	SGCC
Zinc Coating	Z30–Z275 g/㎡
Thickness	0.25–1.20 mm
Width	600–1,250 mm
Coil Inner Diameter	508 mm / 610 mm
Coil Weight	3–8 Tons (Customized)
Film Type	PET, PVC, Functional Film
Film Thickness	20–150 μm
Surface Finish	High Gloss, Matte, Satin, Embossed,etc
Color	White, Black, Silver, RAL Colors, Customizable
Protective Film	Optional

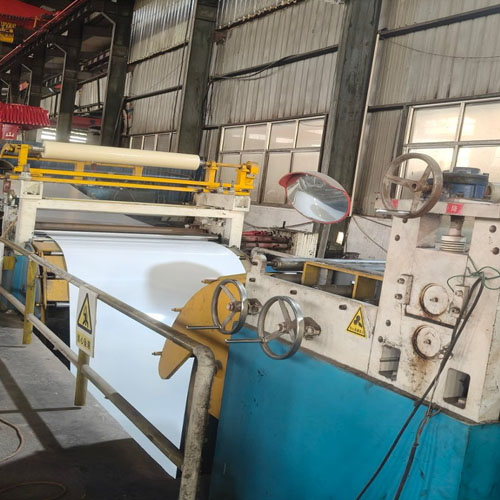

Processing	Slitting, Cut-to-Length, Profile Forming
MOQ	25 tons
Packaging	Standard Export Seaworthy Packing

Comparison of Different Substrates

Substrate	Features	Typical Applications
SGCC	Commercial-grade hot-dip galvanized steel, JIS G3302 standard	Appliance casings (refrigerators, air conditioners), general stamped parts
SGCH	High-strength hot-dip galvanized steel, JIS G3302 standard	Building structures, load-bearing components, pipes and containers
DX51D+Z	European standard EN 10346, low-carbon steel	Construction, general manufacturing, also applicable to the home appliance industry
GL Substrate	Better heat and corrosion resistance	Premium appliances substrate

Production Video

Why Are Home Appliance Manufacturers Increasingly Turning to Laminated Steel?

1. First, it offers a wide variety of surface finishes—not only in color but also in gloss levels. There are numerous patterns available, such as brushed, stone, wood grain, and mirror finishes, all of which are highly realistic.
2. Second, it offers high color consistency; compared to PCM steel, there are no color discrepancies, whether among products from the same batch or different batches.
3. Finally, these products have very low VOC emissions, making them more environmentally friendly; moreover, they can be directly stamped into shape, improving production efficiency at home appliance factories.

Why SGCC Is Often Used as the Base Material for Home Appliance Steel

SGCC stands for Hot-dip Galvanized Steel Sheet as defined in the Japanese JIS G3302 standard. Its advantages as a base material for home appliance steel are as follows:

• Since home appliances are often exposed to humid environments, SGCC offers strong corrosion resistance, whereas cold-rolled steel (SPCC) has relatively weak corrosion resistance.
• The manufacturing process for home appliances involves extensive stamping, bending, and other forming operations, and SGCC base sheets offer good ductility.
• SGCC has high surface quality and strong coating adhesion, ensuring a firm bond with the surface film.
• Compared to stainless steel, aluminum sheet, and aluminum-zinc-coated steel sheet, SGCC offers significant cost advantages while meeting both corrosion resistance and processing requirements.

SGCC Laminated Steel Coil Applications

Home Appliance Industry (Primary Applications)

• Refrigerator door panels, side panels, and interior panels;
• Washing machine lids, outer casings, and control panels;
• Indoor and outdoor units of air conditioners, display refrigerators, dishwashers, wine coolers, freezers, etc.

Decorative and Door Applications

• Interior and exterior decoration: kitchen cabinet doors, elevator cabin interiors, bathroom finishes, etc.
• Security and fire-rated doors: Since the surface can be coated with fire-retardant film, these doors offer both fire resistance and decorative appeal.

Other Applications

• Transportation: Interior trim for automobiles, ships, trains, and other vehicles.
• Electrical cabinets and control equipment: Enclosures for power distribution cabinets, control panel fronts, electrical boxes, and housings for automation equipment, etc.
