PPGI Coil

Our PPGI (Pre-Painted Galvanized Steel) is available in a wide range of specifications.The color of PPGI steel coils is generally based on RAL color cards, and can be customized according to customer samples upon request.

Place of Origin: Shandong, China
Design Style:  Customizable
Thickness: 0.13 – 2.0mm or as required
Width: 600 – 1250mm or as required
Transportation:By sea or Land transportation

tag: PPGI

Ensure product quality and transportation

    ppgi coil introduction

    PPGI, also known as pre-painted steel, coil-coated steel, color coated steel coil, etc., is based on hot-dipped galvanized steel coil, which is first pre-treated on the surface, then coated with one or more layers of liquid coating by roller coating, and finally baked and cooled.

    The paint materials used include polyester-coated PE, silicone-modified polyester-coated SMP, polyvinylidene fluoride-coated PVD, and highly weather-resistant polyester-coated HDP.

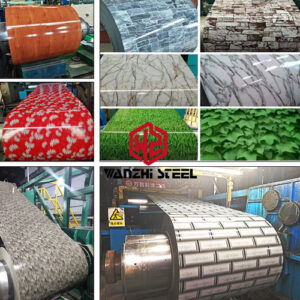

    Pattern PPGI
    View all Pattern PPGI

    PPGI Coil Specifications

    Item PPGI coil
    Thickness(mm) 0.12 – 2.0mm
    Width(mm) 600 – 1500mm
    Coating Zinc 30-275g/m2
    Coating structure 2/1,2/1M,2/2
    Surface Cleaning, sandblasting and painting according to customer requirements, can be customized
    Color Refer to RAL number or customer sample
    Paint Type PVDF, HDP, PE, SMP
    Value-added services Customized samples, slitting, cutting, stamping, bending, profiling etc.
    Material DX51D, DX52D, DX53D, Q235, Q195, SGCC, SGCH, DC01, DC02, etc.
    Technique Hot dip galvanizing, electro galvanizing
    Coil Weight 3-5tons,can be customized
    Packing Standard Export Package
    Delivery Time 15-25 working days
    Standard ASTM, EN, DIN, GB, JIS

    Common colors of PPGI steel coils

    RAL 5002
    RAL 9002
    RAL 9003
    RAL 5005
    RAL 6005
    RAL 3033
    RAL 6016
    RAL 6018
    RAL 6019
    RAL 8004
    RAL 8017
    RAL 7036


    ppgi coil production video

    Product application

    Construction field: In the construction field, PPGI is often used as a roofing material due to its corrosion resistance and decorative properties. In addition, PPGI steel is also often used in the production of exterior wall panels, partitions, fences, rainwater drainage pipes, etc.

    Home appliance field: In the home appliance field, in order to meet its durability and aesthetics, many home appliance shells and internal components are made of PPGI steel, such as washing machines, air conditioners, refrigerators, etc.

    Automobile field: PPGI steel is also widely used in the automotive field, such as automobile shells, interior decoration, internal components, etc. PPGI steel is used.

    Other fields: Some public facilities (billboards, signs, guardrails, etc.) that are in outdoor environments for a long time use PPGI steel; some educational facilities, such as writing boards, are popular as writing boards due to their durability; some daily necessities also use PPGI steel, such as trash cans, lockers, etc.

    ppgi for writing pad
    ppgi for writing pad
    ppgi for fence
    ppgi for fence
    ppgi for home appliances
    PPGI for home appliances

    Advantages of Prepainted Galvanized Steel Coil

    Strong corrosion resistance: The surface of ppgi rolls includes galvanized layer and organic coating. The galvanized layer isolates the steel from the air and prevents the steel from reacting with corrosive substances. The organic coating also has a certain protective effect on the steel.

    Strong decorative effect: ppgi rolls are rich in color; various types, including textured ppgi, matte ppgi, patterned ppgi, bright ppgi, etc.

    Easy processing: ppgi has good formability and is easy to process. You can create any shape, such as curved, rectangular, oval and tubular.

    Easy to maintain and clean: When using ppgi, ppgi is easy to maintain and clean, and you don’t need to spend too much maintenance costs.

    PPGI coil TEST

    Packing Details

    ppgi steel coil packaging is generally standard export packaging or packaged according to your requirements. Standard export packaging details of ppgi steel coils: The first layer is packaged with PVC film or waterproof kraft paper, the second layer is packaged with iron sheet, and then the product is wrapped with a metal pallet or steel strip square tube.

    Wanzhi steel coil packaging
    Wanzhi steel coil transport packaging

    PPGI Steel Coil FAQ

    What is the total thickness of a PPGI coil?

    The total thickness of a PPGI coil is the thickness of the base steel, the coating, the primer, the topcoat and the protective coating, usually expressed in microns (μm).

    What factors affect the price of PPGI coils?

    The price of PPGI coils is affected by the thickness of the zinc layer, the thickness of the substrate (the thinner the substrate thickness, the higher the price of PPGI coils as the processing costs will be higher), the brand of the coating, the type/thickness of the paint, and the packaging method.

    How long does a PPGI coil last?

    The service life of PPGI coils is affected by a number of factors, including the environment in which they are used, the quality of the coating, and the thickness of the sheet. With proper installation and maintenance, as well as a variety of sheet thicknesses and coating materials, wanzhi’s PPGI coils have a service life of 15-30 years.

    wanzhi ppgi case

    conclusion

    Our factory is located in Boxing, Shandong, China, and we are a PPGI manufacturer from China, wanzhi produces PPGI with various specifications for customers to choose, we can also customize the products according to customers’ requirements, contact us for customized products.

    Applications

    Construction external use / Construction internal usee / Household appliancee / Furnituree / Othens

    Surface finish

    Normal coated / Embossed / Printed / Checker / Suede / Pearly-lustre

    Types of top coatings

    PE / Silicon modified polyesters / High-durability polyester / Polyvinylidene fluoride

    Base metal

    Regular / Self dleaning / Antistatic / Antisepite / Adiabatic
