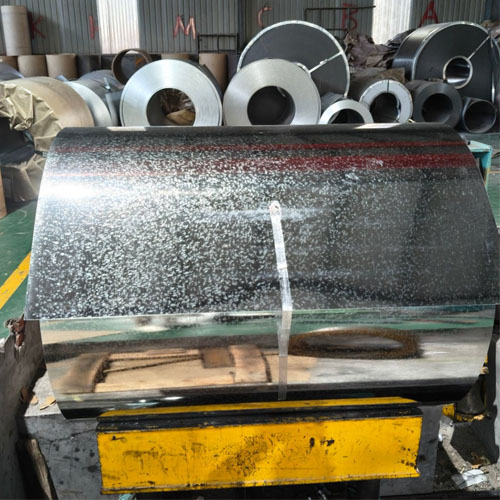

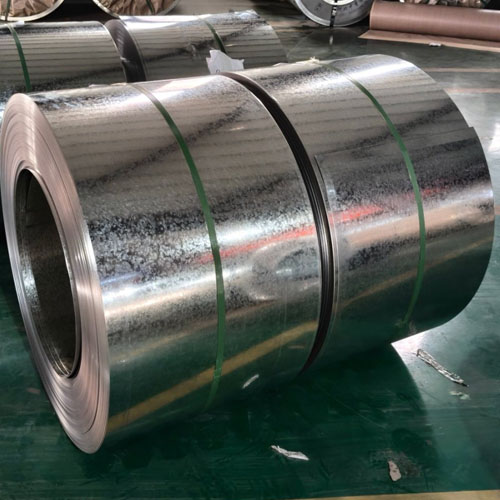

SGCC GI Steel

Wanzhi Steel is a professional supplier of galvanized steel in China. The SGCC galvanized steel we provide has stable performance, high surface quality, excellent corrosion resistance, and a complete range of specifications. Please feel free to contact us if you have any needs.

Thickness: 0.12mm – 6mm
Width: 300mm – 1500mm
Grade: SGCC+Z, SGCC+AZ
Galvanizing: Z30g/m² – Z275g/m²

Ensure product quality and transportation

    SGCC is hot-dip galvanized steel compliant with Japanese standards (JIS G 3302), offering excellent corrosion resistance, ease of processing, and cost-effectiveness. It is widely used in various industries such as construction, home appliances, and automobiles.

    SGCC Galvanized Steel Specifications

    Product Name SGCC Galvanized Steel
    Thickness 0.12mm – 6mm
    Width 300mm – 1500mm
    Grade SGCC+Z, SGCC+AZ
    Galvanizing Z30g/m² – Z275g/m²
    Spangle Type Zero Spangle, Small Spangle, Regular Spangle, Big Spangle
    Standard JIS G 3302
    Surface Treatment Anti-fingerprint, smooth finish, oiled, oil-free (drying), embossing, lamination, pre-painted, etc.
    Port Qingdao Port or as per your requirements.
    MOQ 10 tons
    Packaging Standard export package or as per your requirements

    Chemical Composition

    Elements C Mn P S Si
    Content Range ≤0.15% ≤0.80% ≤0.05% ≤0.05% ≤0.03

    Mechanical Properties

    Performance Tensile Strength Yield Strength Elongation Hardness Bending performance
    Typical Value Range 270-410 MPa 140-300 MPa ≥ 22% 60-90 HB 180° bending without cracking

    Equivalent Materials

    Equivalent Standard JIS G 3302 EN 10346 ASTM A653 GB/T 2518
    Equivalent Grade SGCC + Z DX51D + Z CS Type B + Z DX51D + Z

    SGCC GI Steel Features

    In addition to the common corrosion resistance and processability of galvanized steel, SGCC galvanized steel offers unique advantages due to its standardized specifications, production processes, and performance details, as follows:

    1. Strict standardized performance indicators ensure higher quality stability.
    2. Superior adhesion between the zinc coating and the substrate, minimizing peeling during processing.
    3. Specialized surface treatment processes to accommodate a wider range of application requirements.
    4. More stable mechanical properties in low-temperature environments.
    5. Better compatibility with coatings, resulting in superior performance in secondary processing (pre-painting, coating, composite materials).

    Applications of SGCC Galvanized Steel

    • Construction industry: Outdoor steel structures (such as supports and guardrails), roof and wall materials, ventilation ducts, etc.
    • Automotive industry: Body components (such as chassis parts and door frames), interior support structures.
    • Home appliance manufacturing: Refrigerator and washing machine shells and liners, air conditioner outdoor unit components.
    • Industrial equipment: distribution box and control cabinet housings, mechanical protective covers, pipes and brackets in humid environments.
    • Outdoor facilities: billboard frames, traffic signs, streetlight poles, etc.
    Galvanized Steel Roof
    Galvanized Steel Roof
    Galvanized ventilation equipment
    Galvanized ventilation equipment

    FAQ about SGCC

    Q1: What is the difference between SGCC and SGCH?

    A: SGCC has relatively lower hardness, better formability, and corrosion resistance; SGCH has higher hardness and strength than SGCC, but relatively poorer plasticity and formability.

    Q2: Can SGCC replace stainless steel?

    A: SGCC galvanized steel can be used in general corrosive environments, but stainless steel is still required in strong acid/alkali environments.

    Q3: How is the zinc coating thickness of SGCC tested?

    A: Using an X-ray fluorescence analyzer (XRF) or laboratory weighing method (in accordance with ISO 1460 standards).

    Q4: Can the bright-finished surface (F) be used outdoors?

    A: Yes, but it must be combined with sufficient zinc coating (e.g., Z120+) or a protective coating; otherwise, its weather resistance is inferior to that of the zinc flower surface.

    Q5: Do you supply other galvanized steel products besides coils, sheets, and strips?

    Yes, we also supply galvanized corrugated steel sheets,  galvanized structural steel,  galvanized wiregalvanized pipes, etc.

    Galvanized C Section Steel
    Galvanized C Section Steel
    Q235 galvanized rectangular tube
    Q235 galvanized rectangular tube

    Why Choose Us?

    • Reliable product quality: Utilizing advanced production processes and strictly controlling production procedures, our products feature stable mechanical properties, uniform zinc coating thickness that meets standards, and strong corrosion resistance.
    • Excellent surface quality: Smooth surfaces with no defects (pores, wrinkles, oxide scale); Multiple surface finishes available: standard zinc flowers, small zinc flowers, and smooth surfaces to meet various requirements.
    • Professional processing services: We have professional processing capabilities, supporting slitting, leveling, stamping, bending, and other processes, and can process products into various shapes and sizes according to customer needs.
    • Fast delivery: Quick delivery for standard specifications, and flexible scheduling for special requirements.
    • Comprehensive after-sales service: Professional technical support team provides material selection advice and after-sales guarantees.

    Wanzhi Steel is a professional galvanized steel supplier with over 17 years of production experience and over 14 years of export experience, certified with ISO 9001, ISO 14001, and Trusted Supplier certifications. In addition to SGCC galvanized steel, we also offer other standard galvanized steel products. If you have any requirements for galvanized steel, please feel free to contact us.
