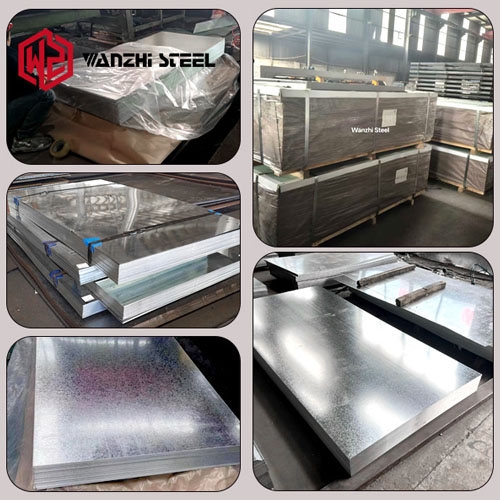

Gi Plain Sheet

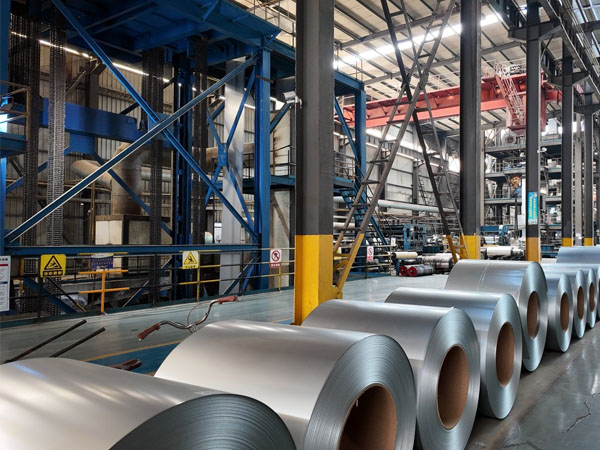

Wanzhi Steel operates two hot-dip galvanized coil production lines. Equipped with precision cutting machinery, we produce galvanized flat sheets in various dimensions, including the commonly used 4 ft × 8 ft specification.
Thickness: 0.12-4.0mm
Width: 600-1500mm
Standard: GB, JIS, EN, ASTM
Factory Address: Binzhou, Shandong, China
tag: Galvanized steel
Ensure product quality and transportation
We specialize in supplying premium GI Plain Sheets, offering galvanized steel plates in multiple standards such as DX51D, SPCC, and S280GD. Custom shearing services are available. Our products hold certifications including ISO 9001 and CE. For any galvanized steel requirements, please contact us anytime.
Gi Plain Sheet Specifications
| Product Name | Gi Plain Sheet |
| Thickness(mm) | 0.12 – 6.0mm |
| Width(mm) | 600 – 1500mm |
| Length(mm) | According to your requirements |
| Material | DX51D-DX54D+Z, Q235+Z, SPCC/SGCC+Z, A653/A653M+Z, S280GD/ S350GD/S550GD+Z etc. |
| Standard | GB, JIS, EN, ASTM |
| Zinc Coating Thickness | 30-275g/m² |
| Spangle Type | Zero spangle, Small spangle, Regular spangle, Large spangle |
| Surface Treatment | Oiling, passivation, pre-painting, etc. |
| MOQ | 25 Tons |
| Packaging | Standard export package or as per your requirements |
| Quotation Method | EXW, FOB, CIF, etc. |
Gi Plain Sheet Dimensions
- The commonly used thickness of Gi plain sheet is 0.2mm, 0.4mm, 0.45mm, 0.5mm, 0.6mm, 1.5mm, etc.
- The common width is 600mm, 1000mm, 1219mm (4 feet), 1250mm, 1500mm, etc.
- The length of Gi plain sheet can be extended according to your requirements.
What does 4×8 Gi Plain Sheet mean?
4×8 stands for 4 feet * 8 feet, which is converted to mm and refers to a gi plain sheet with a width of 1219.2mm and a length of 2438.4mm.Galvanized steel sheets of this specification of 1219mm×2438mm are easier to arrange during production and transportation, so they are more common.
Gi Plain Sheet Weight Calculator
Weight per square meter (kg) = thickness (mm) × length (m) × width (m) × 7.85 (Gi sheet density)
For example, the weight (kg) of a galvanized steel sheet with a thickness of 0.5mm, a width of 1000mm, and a length of 2100mm = 0.5×1×2.1×7.85=8.2425kg; For quick calculations, utilize our metal sheet calculator to obtain results rapidly.
Wanzhi Gi Plain Sheet Production Video
Advantages of GI Plain Sheet
- Ready-to-Use: Supplied as pre-processed flat sheets, eliminating the need for pre-treatment steps like coil unwinding, slitting, and cross-cutting.
- Superior Surface Quality: As a flat sheet, it offers high flatness, consistent surface finish, and is free from roller marks or zinc particles.
- Enhanced Processing Stability: The galvanized flat sheet exhibits a more stable internal stress state, resulting in minimal deformation during subsequent processing and high precision in finished products.
Gi Plain Sheet Applications
- Electrical Enclosures: Used for manufacturing high/low-voltage switchgear, distribution boxes, server cabinets, and network cabinet housings, door panels, and mounting plates.
- Building Structures: Serves as backing panels for metal curtain walls, ceiling base panels, interior partition wall panels, and industrial stair treads (embossed).
- Transportation Facilities: Interior trim panels for subways/high-speed rail/buses, highway sound barrier panels, and traffic sign backing panels.
- Industrial Equipment: Agricultural machinery housings, agricultural buildings, ventilation ducts, fan enclosures, environmental protection equipment casings, etc.
Why Choose Us?
Our Advantages
- Precision Cutting Capability: Equipped with 4 high-precision leveling lines to ensure dimensional accuracy and diagonal tolerance of galvanized flat sheets.
- High Product Quality: Manufactured using premium raw materials and advanced equipment. Features uniform, smooth, absolutely flat zinc coatings with high dimensional precision.
- Quality Inspection Center: Our 500-square-meter quality control facility conducts rigorous pre-shipment inspections to ensure products meet customer specifications.
Our Case
- Thickness: 1.45mm
- Width: 1500mm
- Length: 2400mm
- Zinc Coating: Z180g/㎡
- Packaging Requirement: Single-piece packaging weight not exceeding 3 tons.
Our Certifications
We hold multiple certifications including ISO 9001, ISO 14001, CE, and Integrity Supplier.
Our Packaging
Flat plates are packaged with wooden pallets for rust prevention, ensuring no deformation or corrosion during transportation.

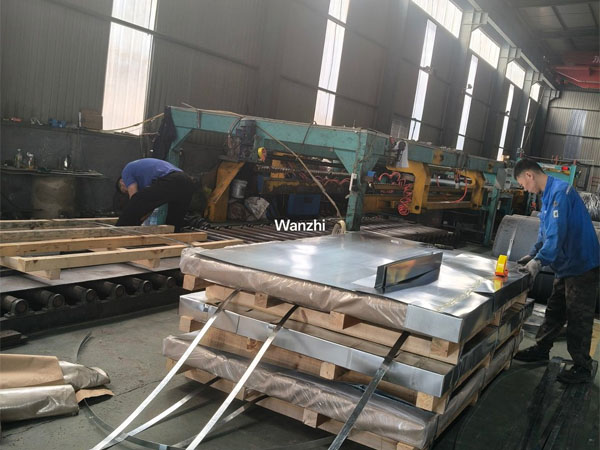

Wanzhi Steel has 2 hot-dip galvanizing and 1 electro-galvanizing production lines, 4 leveling and shearing equipment, which can accurately cut to the size required by customers. In addition, it can also provide profiling (corrugated sheet), punching, and pre-painting processing services to produce different types of galvanized products to meet the various needs of different customers.If you have any questions about the product, you can contact us for details.
