Galvanized Diamond Plate
Our galvanized diamond plates are available in a variety of materials, with complete specifications, high strength, and stable performance. They can be customized and cut according to customer requirements. Please contact us if needed.
Thickness: 2.00 – 8.00mm
Width: 600 – 1500mm
Checkered Height: 0.5 – 2.00mm
Ensure product quality and transportation
Galvanized diamond plate is highly functional, combining corrosion resistance with excellent anti-slip properties. It is a metal material that balances safety, durability, and cost-effectiveness, making it suitable for use in various industries.
Specifications
| Product Name | Galvanized Diamond Plate |
| Thickness | 2.00 – 8.00mm |
| Width | 600 – 1500mm |

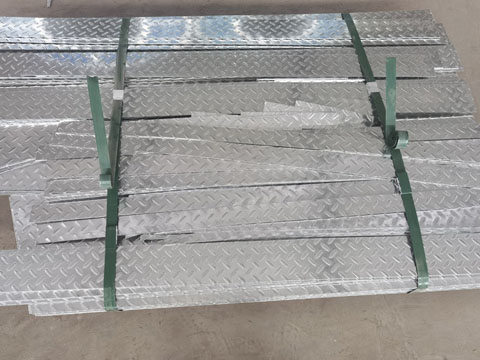

| Length | Cutting Available According to Customer’s Requirements |
| Checkered Height | 0.5 – 2.00mm |
| Checkered Spacing | 10 – 50mm |
| Coating Weight | Z30 – Z275g/㎡ |
| Substrate Materials | Q235, Q345, DX51D, DX52D, S350GD, SGCC, SS400, A36, etc. |
| Surface Options | Glossy, Matte, No Spangle, Small Spangle |
| MOQ | 10 tons |
| Package | Standard Export Package or According to your requirements |
Advantages of Galvanized Diamond Plate
- Anti-slip properties: This is the core feature of galvanized diamond plate. The raised diamond patterns on the surface increase the friction coefficient of the plate.
- High corrosion resistance: The galvanized layer on the surface effectively blocks corrosive media, extending the service life.
- High strength: The base material has a certain load-bearing capacity, can withstand heavy loads, and is resistant to deformation.
- Processability: Can be cut, welded, bent, and otherwise processed according to requirements to meet installation needs in various scenarios.
Galvanized Diamond Plate Applications
Utilizing the anti-slip properties of galvanized diamond plate, it is commonly used in the following scenarios:

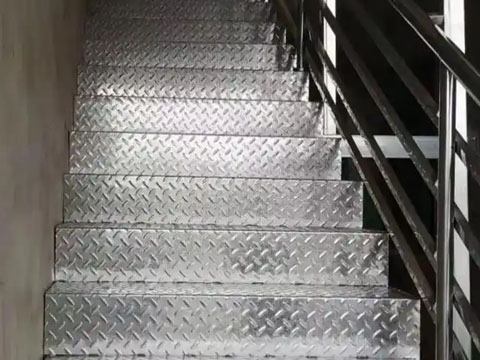

- Construction Industry: Stair treads, corridor walkways, parking lot ramps, building exterior wall decoration, various anti-slip flooring, etc.
- Industrial field: Machine operation platforms, equipment maintenance platforms, shelf partitions, forklift ramps, factory workshop floors, etc.

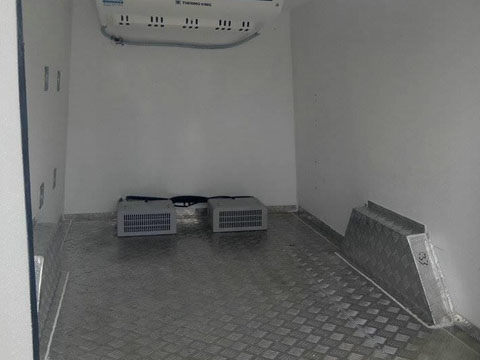

- Transportation facilities: Vehicle steps/cargo compartment floors (e.g., trucks, construction vehicles), ship decks, train carriages, etc.
- Agriculture and livestock farming: Agricultural machinery steps, grain silo anti-slip layers, livestock and poultry farm floors, etc.
Weight per Square Meter of Galvanized Diamond Plate
The weight per square meter of galvanized diamond plate of varying thicknesses is affected by the thickness of the base material, the thickness of the pattern, and the galvanized layer. The weight range is as follows:
| Total Thickness (mm) | Weight per Square Meter (kg/㎡) |
| 2 | 16.5 – 17.5 |
| 2.5 | 20.5 – 21.5 |
| 3 | 24.5 – 25.5 |
| 3.5 | 28.5 – 29.5 |
| 4 | 33.0 – 34.0 |
| 4.5 | 37.0 – 38.0 |
| 5 | 41.0 – 42.0 |
| 6 | 50.0 – 51.5 |
| 8 | 66.0 – 68.0 |
FAQ
Q1: Is the diamond pattern more anti-slip than other patterns (such as lentil or round)?
A: Diamond patterned plate is more anti-slip than round patterned plate because the contact points of round patterned plate are dispersed. Lentil patterned plate has similar anti-slip properties to diamond patterned plate, but diamond patterned plate has a better appearance.
Q2: Which is better, galvanized diamond plate or aluminum diamond plate?
A: Galvanized diamond plate offers high strength and low cost, making it suitable for heavy-duty and budget-constrained projects. Aluminum diamond plate is lighter and more corrosion-resistant, but has lower load-bearing capacity and a higher price.
Q3: Can you customize special sizes or patterns?
A: We offer custom designs, including diamond patterns, round bean patterns, lentil patterns, and more. Besides galvanizing, our base materials include stainless steel, aluminum, galvanized steel, and mild steel.
Why Choose Us?
- Our metal checkered plates include galvanized checkered plate, stainless steel checkered plate, and aluminum checkered plate, with a full range of specifications.
- We undergo rigorous inspections before and after production, including both raw materials and finished products, to ensure product quality.
- With over 17 years of production experience and 14 years of export experience, we have successfully exported to over 120 countries.
As a professional galvanized steel supplier in China, Wanzhi Steel offers a wide range of high-quality galvanized steel products, earning them a high reputation among our customers. If you have any needs for galvanized products, please contact us.
