Home » Products » Aluminum » 3mm Aluminum Sheet

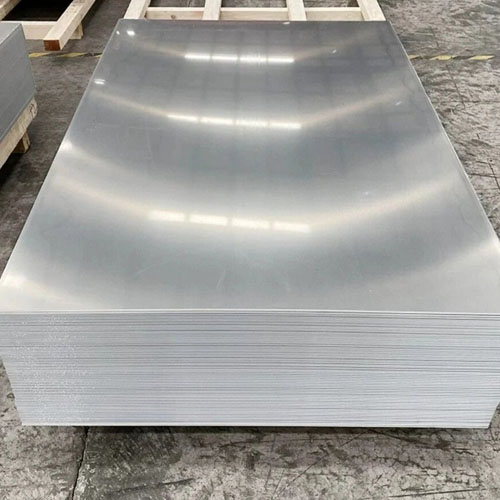

3mm Aluminum Sheet

3mm is the commonly used thickness of aluminum sheet. In addition to 3mm aluminum sheet, we can supply aluminum sheets of various thicknesses. If you have any aluminum sheet needs, please contact us.

Width: 1000mm, 1220mm, 1250mm, 1500mm, etc.
Length: 2000mm, 2500mm, 3000mm, etc., or customized
Common sizes: 1000mm × 2000mm, 1220mm × 2440mm (4×8 ft), 1500mm × 3000mm, etc
Material: 1050, 1060, 1070, 1100, 2024, 3003, 3004, 3105, 5052, 5083, 5754, 6061, 6063, 6082, 7075, etc.

Ensure product quality and transportation

    Aluminum sheet is processed from aluminum ingots. 3mm is the typical thickness of aluminum sheet. This thickness has unique advantages in aluminum sheet processing performance and mechanical properties. 3mm aluminum sheet with suitable alloy grade and surface treatment method can play the greatest functionality.

    3mm Aluminum Sheet Specifications

    Product name 3mm Aluminum Sheet
    Width 1000mm, 1220mm, 1250mm, 1500mm, etc.
    Length 2000mm, 2500mm, 3000mm, etc., or customized according to customer needs
    Thickness 3mm
    Common sizes 1000mm × 2000mm,1220mm × 2440mm(4×8 ft),1500mm × 3000mm, etc
    Material 1050, 1060, 1070, 1100, 2024, 3003, 3004, 3105, 5052, 5083, 5754, 6061, 6063, 6082, 7075, etc.
    Temper All
    Tensile strength 90 – 310MPa
    Yield strength 30 – 260MPa
    Surface treatment Anodizing, spraying (PVDF), brushing, sandblasting, engraving, etc.
    Processing services Embossing, cutting, bending, pressing, punching, processing into composite panels, etc.
    Color Silver, black, gold, etc.
    MOQ 5 tons
    Delivery time 10-20 working days
    Packing Standard Export Package or According to your requirements

    3mm Aluminum Sheet Features

    • Excellent corrosion resistance.
    • Light weight and high strength.
    • Good thermal conductivity and electrical conductivity.
    • Excellent processability.
    • Environmentally friendly material, 100% recyclable.
    • The surface is more decorative and functional after processing.

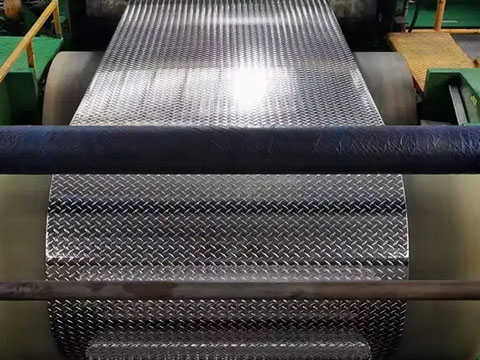

    Aluminum embossed sheet
    Aluminum embossed sheet

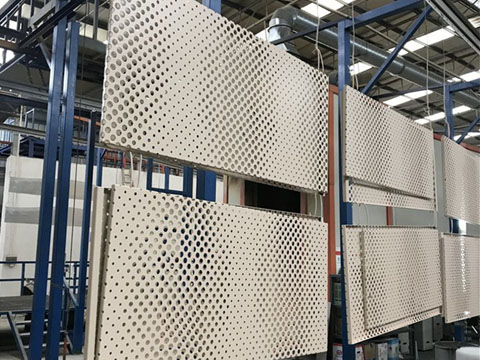

    Perforated aluminum sheet
    Perforated aluminum sheet

    Application of 3mm Aluminum Sheet

    Architectural field

    • Spraying PVDF paint, used for building wall.
    • Pressing into corrugated aluminum sheet, used for roof covering.
    • Used for interior decoration such as wall, ceiling, ceiling, etc.

    Transportation

    • 5 series alloy aluminum sheet is used for automobile, train, ship body, mailbox and other parts.
    • 3mm aluminum sheet is often used for subway car interior panels, high-speed rail luggage racks, etc.

    Industrial field

    • Shells of mechanical equipment such as electrical equipment and communication equipment.
    • Used for industrial pipelines such as chemical pipelines and ventilation pipelines.
    • Electronic radiator, LED lamp heat dissipation substrate, etc.

    Advertisement and home

    • 3mm aluminum sheet is used for billboards and signboards through spraying treatment.
    • Surface brushing/sandblasting treatment is used for the manufacture of furniture such as cabinets, wardrobes, bookcases, etc.
    • 3mm aluminum sheet can also be used to make display racks, display cabinets, exhibition boards, etc.

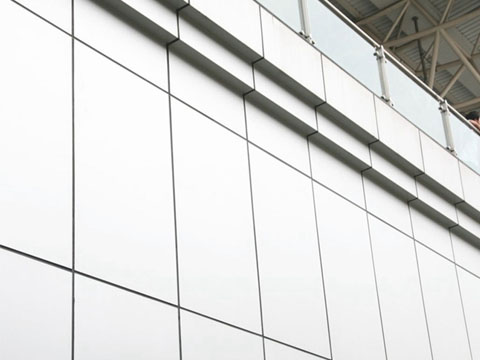

    Curtain Wall
    Curtain Wall
    Perforated aluminum sheet
    Perforated aluminum sheet

    Weight of 3mm Aluminum Sheet

    Calculation formula = length (m) × width (m) × thickness (mm) × density (g/cm³)

    Taking the density of 1060 aluminum sheet of 2.71g/cm³ as an example, the weight of 3mm thick aluminum sheet per square meter = 1×1×3×2.71=8.13kg

    Density of different alloy aluminum sheets

    Alloy series Typical grades Density (g/cm³) Main alloy elements
    1xxx 1050、1060、1100 2.70-2.71 Pure aluminum (Al≥99%)
    2xxx 2024、2017 2.78-2.80 Copper (Cu: 3-5%)
    3xxx 3003、3004 2.73-2.74 Manganese (Mn: 1-1.5%)
    5xxx 5052、5083、5754 2.66-2.68 Magnesium(Mg: 2-5%)
    6xxx 6061、6063、6082 2.70-2.72 Magnesium + Silicon (Mg: 0.8-1.2%, Si: 0.4-0.8%)
    7xxx 7075、7050 2.80-2.83 Zinc (Zn: 5-7%) + Magnesium + Copper

    Price of 1 ton of 3mm Aluminum Sheet

    The price of aluminum sheet is affected by factors such as raw material aluminum ingot, alloy composition, state, surface treatment method, specifications, quantity, etc., and the price varies. The reference price is as follows:

    The price of 1 ton of 3mm aluminum sheet is between US$1,500 and US$4,300. To obtain accurate price information, you can leave a message to contact us.

    Why Choose Us?

    Wanzhi Steel is a well-known aluminum sheet supplier in China and an enterprise that has passed ISO 9001 and ISO14001 quality system certification.In addition to 3mm thick aluminum sheets, we provide various thicknesses, with a wide range of thicknesses, rich product types, and high customization. If you have any demand for aluminum related products, please contact us for quotation.
