24 Gauge Gi Sheet
Our 24 gauge gi sheet includes gi flat sheet and corrugated sheet, with precise size, sufficient zinc layer weight, stable performance and high quality. If you have any needs, please feel free to contact us.

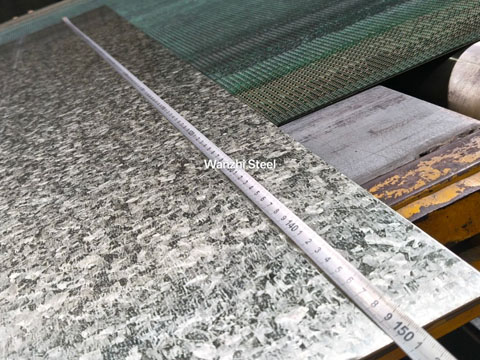

Width: 24 inches (≈609.6 mm), 42.75 inches (≈1085.9 mm), 48 inches (≈1219.2 mm), etc.

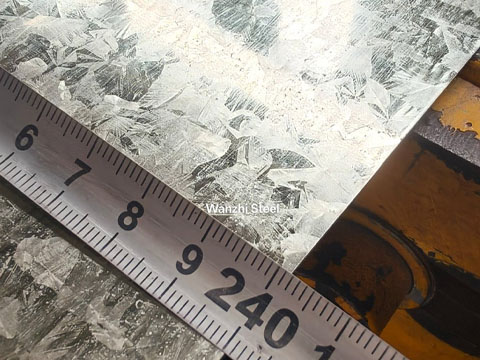

Length: 48 inches (≈1219.2 mm), 120 inches (≈3048 mm), etc.
Zinc Layer Weight: Z30 – Z275g/㎡

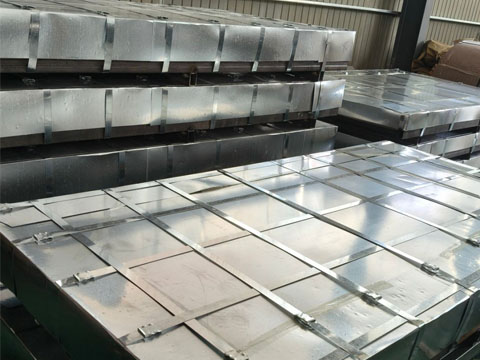

Ensure product quality and transportation
24 gauge gi sheet, where 24 gauge represents the thickness of the galvanized sheet, which is approximately 0.0276 inches (inch), which is approximately 0.7004mm when converted to metric units. For details, please refer to the galvanized steel specification conversion table.
Specification
| Product Name | 24 Gauge Gi Sheet |
| Thickness | 0.7004mm (0.0276 inches) |
| Width | 24 inches (≈609.6 mm), 42.75 inches (≈1085.9 mm), 48 inches (≈1219.2 mm), etc. |
| Length | 48 inches (≈1219.2 mm), 120 inches (≈3048 mm), etc. |
| Zinc Layer Weight | Z30 – Z275g/㎡ |
| Material | DX51D, DX52D, DX53D, SGCC, CGCC, SECC, S250GD, S350GD, S550GD, CS Type A, CS Type B |
| Standard | EN, GB, JIS, ASTM |
| Surface Treatment | Chromated, chromium-free, fingerprint-resistant, oiled, oil-free, pre-painted |
| Processing Services | Cutting, stamping, bending, welding, press forming, etc. |
| MOQ | 10 tons |
| Packaging | Standard export package or as per your requirements |
24-gauge Galvanized Sheet Advantages
- Excellent Rust Resistance: The zinc layer effectively isolates the steel from air and moisture corrosion, extending its service life in outdoor, humid environments.
- Strong Processability: The material combines both toughness and rigidity, making it easy to cut, bend, and stamp.
- Balanced Cost-Effectiveness: The thickness balances lightweight construction with structural strength, maintaining material weight while meeting the needs of most non-load-bearing applications.
24-gauge Galvanized Sheet Applications
24-gauge galvanized sheet can be manufactured into a variety of products and components through a variety of processing methods. Key applications include:
| Processing Methods | Processed products/components | Application Examples |
| Stamping | Air conditioner housings, equipment panels, electrical parts, decorative components | Air conditioner outdoor unit housings, control cabinet panels, server chassis, signage |
| Bending/Forming | Ventilation ducts, brackets, troughs, cabinets, roof panels | Building ventilation systems, equipment racks, electrical switch boxes, roof tiles |
| Roll Forming | Roof panels, wall panels, corrugated sheeting | Industrial plant roofs and walls, warehouses, agricultural warehouses |
| Rolling/Bending | Rainwater pipes, ventilation ducts, guardrails | Building drainage gutters, livestock pen fences, simple silos |
| Welding/Assembly | Storage racks, shelves, display stands, fences | Warehouse shelves, supermarket display racks, home storage racks, workbenches |
24 Gauge Galvanized Sheet Price
The price of 24 gauge galvanized steel varies greatly, depending on factors such as the raw material used for galvanizing, the base material, the zinc coating weight (30g/㎡ vs. 275g/㎡ can make a significant difference), the purchase quantity, and the specifications (length/width). Prices generally range from around $550 to $800. For prices of other galvanized steel specifications, please refer to the Galvanized Steel Coil Price Page.
Why Choose Us?
- We operate three production lines (two hot-dip galvanizing lines and one electrogalvanizing line), equipped with advanced equipment and professional personnel to ensure the consistent quality and performance of our galvanized steel products.
- Our in-house testing center can verify product specifications, bending performance, impact resistance, zinc coating weight, and more. We also fully support third-party testing.
- We are ISO 9001, ISO 14001, ISO 45001, and are a trusted supplier, earning us a strong customer base.
As a professional galvanized steel manufacturer, Wanzhi Steel is capable of producing a wide range of steel products in a comprehensive range of specifications, including but not limited to:
If you have any inquiries regarding galvanized steel products, please contact us for details.
