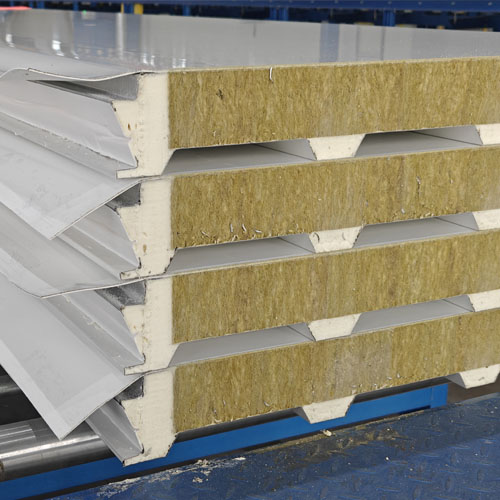

TPO metal composite panels are a type of metal sandwich panel, representing a new generation of composite metal sheets. They consist of a TPO layer, a metal substrate, and high-strength hydrophobic rock wool, delivering ready-to-install, waterproof, and thermal insulation performance.
Width: 1000mm or 1200mm
Length: 6m or customized
Metal Plate Thickness: 0.3mm – 1.2mm
TPO Layer Thickness: 1.2mm, 1.5mm, 1.8mm, or Customized
Our TPO metal composite panels innovatively bond high-strength steel sheets with high-performance TPO waterproofing layers permanently, providing a ready-to-install, lifetime waterproof integrated solution that significantly shortens construction time and reduces long-term maintenance costs. They serve as the ideal material for roofing and walling in large industrial plants, commercial centers, and similar structures.
Specification
Product Name
TPO Metal Composite Panels
Width
1000mm or 1200mm
Length
6m or customized
Metal Plate Thickness
0.3mm – 1.2mm
Metal Base
Galvanized Steel Sheet, Galvalume Steel Sheet
Compressive Strength
100MPa
Color
White, Gray, or Customized
TPO Layer Thickness
1.2mm, 1.5mm, 1.8mm, or Customized
Adhesive Film Layer
0.1mm-0.3mm
Fire Rating
Class A
MOQ
Full Container
Packaging
The inner film and moisture-proof paper and the outer part are firmly tied with steel tape.
TPO Metal Composite Panel Production Process
Rigorous Material Selection: Both the metal substrate (produced on our own production line) and TPO raw materials are sourced from premium suppliers and undergo stringent performance testing.
Precision Laminating: Utilizing high-precision hot-press equipment, layers are firmly bonded into a single unit under precisely controlled temperature, pressure, and time parameters.
Comprehensive Quality Control: End-to-end quality inspections from raw material intake through production to finished goods ensure every panel meets stringent standards.

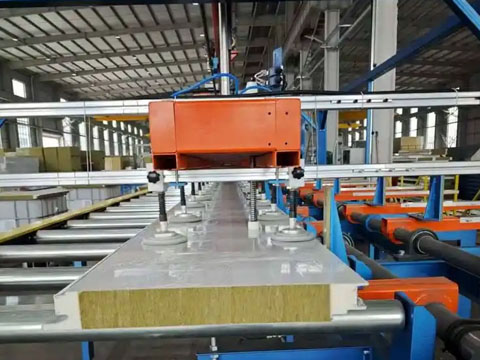

Panel composite completed

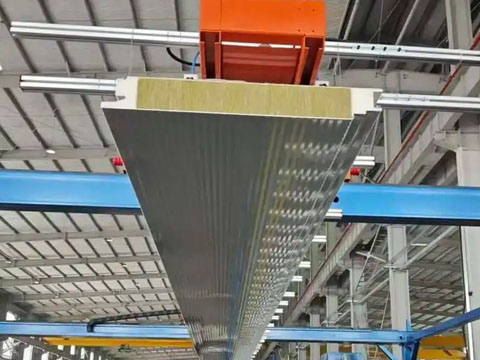

Prepare to stack

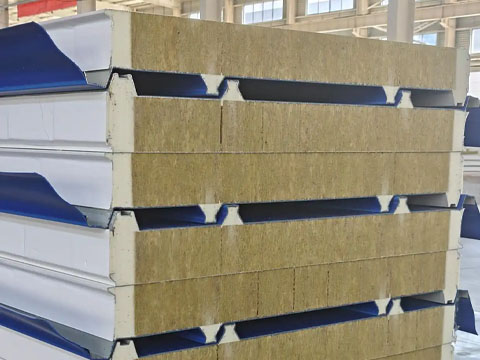

Structure
Surface Layer: 1.2-2.4mm TPO membrane
High-Strength Bonding Layer: Polymer co-extruded adhesive film
Core Material: Grade A rock wool (density 120-150kg/㎡)
Superior Waterproofing: The tightly structured molecular composition of the TPO layer creates a seamless waterproof barrier, providing long-term protection against rain and moisture.
Outstanding Weather Resistance: The surface TPO material exhibits exceptional resistance to aging, UV radiation, and both acids and alkalis.
Energy Efficiency: Light-colored surfaces reflect heat, significantly reducing roof temperatures. The rock wool core provides thermal insulation, delivering substantial energy savings.
Lightweight & Easy Installation: Lighter than traditional building materials. Modular design ensures precise dimensions and a quick, straightforward installation process.
Why Choose Us
Consistent Quality: Advanced manufacturing processes and rigorous quality control systems ensure outstanding product performance and consistent quality.
Extensive Experience: Over 14 years of production and export expertise, successfully serving customers in more than 100 countries.
Trusted Supplier: Certified under ISO 9001, ISO 14001, and recognized as a Trustworthy Enterprise.
Our Certificates
As a specialized Chinese supplier of metal sheets with over 14 years of deep industry expertise, we possess unmatched supply chain integration capabilities. We deliver rapid production while guaranteeing products meet customer requirements. You can trust us—time will prove it all.
