SGCC Color Coated Steel (PPGI/PPGL)

SGCC Color Coated Steel

Our SGCC color-coated steel has complete specifications, rich product types, rich colors and long service life. If you have any needs, please feel free to contact us.

Thickness: 0.12mm – 1.2mm
Width: 650mm, 750mm, 800mm, 914mm, 1000mm, 1219mm, 1250mm or slitting width
Paint Thickness: Top: 10-25μm, Back: 5-15μm

Ensure product quality and transportation

SGCC is the base material of color-coated steel. SGCC is a hot-dip galvanized steel sheet. Its full English name is “Steel Galvanized Cold Commercial” and its implementation standard is JIS G3302.

Specification

Product Name	SGCC Color Coated Steel
Thickness	0.12mm – 1.2mm
Width	650mm, 750mm, 800mm, 914mm, 1000mm, 1219mm, 1250mm or slitting width
Paint Type	PE, HDP, SMP, PVDF
Paint Thickness	Top: 10-25μm, Back: 5-15μm
Coating Structure	Two coats and two bakes (2/2), three coats and two bakes (2/1), three coats and three bakes (3/3)
Substrate	GI Steel, GL Steel
Coating Thickness	Z30 – Z275g/㎡(gi steel), AZ30 – AZ150g/㎡(gl steel)
Surface Type	Surface type: Smooth, Wrinkled, Matt, Textured, Embossed
Coil inner diameter	508mm (20 inches) or 610mm (24 inches)
Production Standards	JIS G 3312
Equivalent Materials	DX52D+Z/DX53D+Z(EN 10346), CS Type A/B/C(ASTM A653/A653M)
MOQ	5 tons
Packaging	Standard export package or as per your requirements

Advantages of SGCC Color-Coated Steel

Corrosion Resistance: The base material is made of GI or GL steel, offering excellent corrosion resistance. The paint coating further enhances this resistance.
Decorative Appearance: A wide variety of surface colors, textures (such as glossy, matte, and embossed), and gloss levels are available to meet diverse needs.
Easy Processing: The base material’s excellent flexibility and ductility make it ideal for shearing, bending, roll forming, and deep drawing.

SGCC Color-Coated Steel Applications

Construction

Roofing and Exterior Walls: Widely used in roof and wall panels for industrial plants, logistics warehouses, commercial centers, stadiums, and more.
Interior and Ceiling: Used for interior partitions, ceilings, doors, and more.

Industrial and Home Furnishings

Home Appliance Manufacturing: Commonly used in the exterior and interior components of appliances such as refrigerators, washing machines, air conditioners, and microwave ovens.
Furniture and Office Furniture: Used in the production of filing cabinets, lockers, office partitions, and lockers.

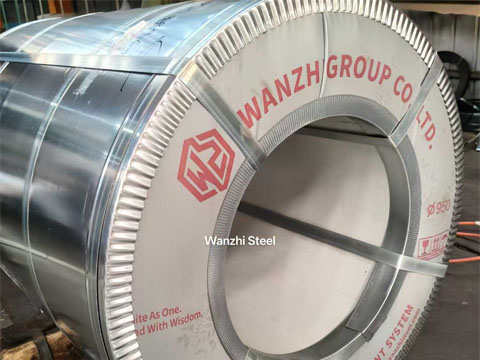

Packing

Why Choose Us?

We have three advanced color-coated steel production lines, capable of producing a full range of specifications and colors (RAL color chart).
Our professional testing center conducts comprehensive tests on our color-coated steel products, including corrosion resistance, weathering resistance, specifications, and mechanical properties.
We not only offer coils, but also utilize processing equipment such as slitting, cutting, and punching to provide a variety of products, including sheet, corrugated sheet, and perforated sheet.
We are ISO 9001 and ISO 14001 certified, with over 14 years of production and export experience, successfully exporting to over 100 countries.

Wanzhi Steel is a professional PPGI manufacturer in China, with extensive experience and professional production equipment. We export our products to over 100 countries and regions, achieving high customer satisfaction. If you are interested in our SGCC color-coated steel (PPGI/PPGL) products, please feel free to contact us for details.

Our minimum order quantity is 5 tons. You can use our tools: Metal Coil Weight Calculator and Metal Sheet Weight Calculator to calculate your purchase quantity.
