Self-cleaning Color Coated Steel

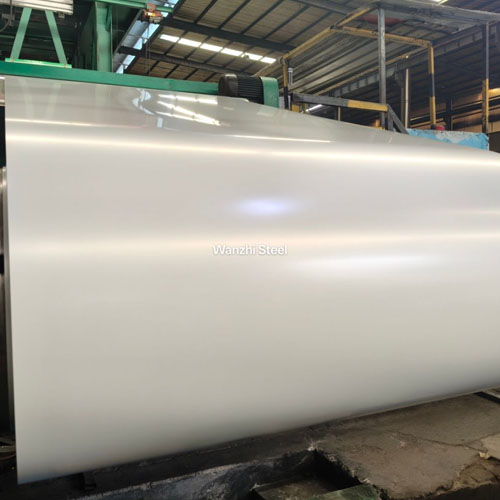

Wanzhi Steel’s self-cleaning color-coated steel is a new type of outdoor color-coated steel sheet. Its key feature is its self-cleaning properties. It can be cleaned outdoors directly with rainwater, requiring no maintenance. It is commonly used in industrial and urban areas with poor air quality.

Thickness: 0.2mm – 1.2mm
Width: 600mm – 1250mm
Surface Contact Angle: ≤60°
Stain Resistance: ≤1.0

Ensure product quality and transportation

    Specification

    Product Name Self-cleaning color-coated steel sheet
    Thickness 0.2mm – 1.2mm
    Width 600mm – 1250mm
    Dimensional Tolerance ±0.02mm
    Coating Weight Z30-Z275g/㎡, AZ30 – AZ150g/㎡
    Paint Thickness 20-35μm
    Substrate Material GI, GL
    Color According to Ral color chart
    Surface Texture High gloss, matte, orange peel, etc.
    Paint Coating Type PE, SMP, HDP, PVDF
    Surface Contact Angle ≤60°
    Stain Resistance ≤1.0
    Processing Services Slitting, cutting, punching, bending, rolling, etc.
    MOQ 5 tons
    Packaging Vertical/horizontal packaging for steel coils, conventional export packaging for steel sheets

    Structural Mechanism

    Hydrophilic Mechanism

    The coating surface has extremely high surface energy, creating a strong affinity for water. When rainwater contacts the sheet, it doesn’t condense into droplets and roll off, but instead quickly spreads out as a uniform, ultra-thin film.

    This film fully soaks and envelops dust and pollutant particles adhering to the surface, effectively reducing their adhesion to the coating. Subsequently, moderate rainfall washes away these pollutants along with the film, achieving highly effective surface cleaning.

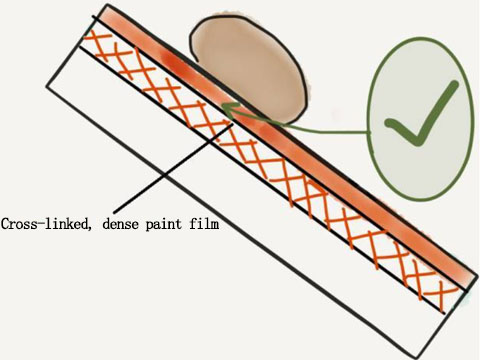

    Cross-linked, dense paint film
    Cross-linked, dense paint film

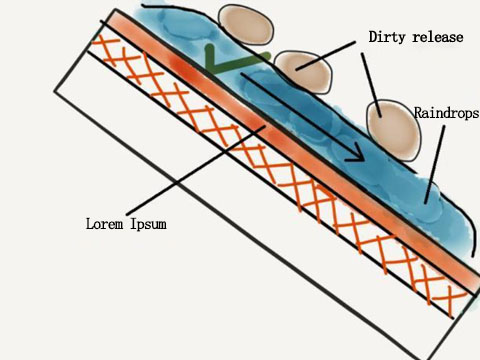

    Hydrophilic surface
    Hydrophilic surface

    Anti-fouling Mechanism

    Highly Dense Topcoat Structure: The topcoat of self-cleaning color-coated steel sheet is specially formulated and processed to create an extremely dense, smooth microstructure. This structure significantly reduces surface porosity and irregularities, making it difficult for contaminants like oil and dust to penetrate and adhere firmly.

    Self-Cleaning Color-Coated Steel Advantages

    Outstanding Performance

    Not only does it inherit the high decorative, corrosion-resistant, and weather-resistant qualities of ordinary color-coated steel, but it also features rainwater self-cleaning. Leveraging its dual “hydrophilic + anti-fouling” properties, rainwater washes away dirt, while the dense paint film blocks contaminants from penetrating.

    Guaranteed Cost and Safety

    No manual cleaning required, minimizing expensive manual cleaning and maintenance costs and eliminating the risks of working at height.

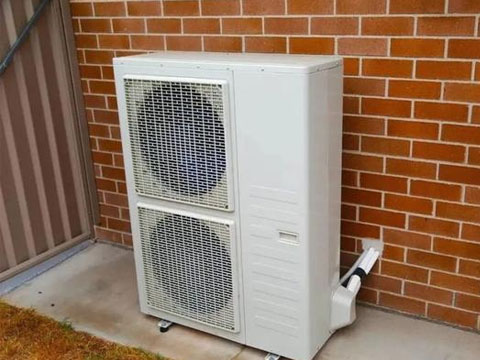

    Air conditioning outdoor unit
    Air conditioning outdoor unit

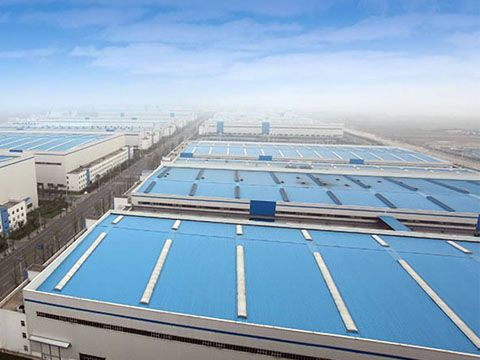

    Factory construction
    Factory construction

    Applications of Self-Cleaning Color-Coated Steel

    • Home Appliances: Widely used in air conditioner outdoor unit tops/covers, front covers/panels.
    • Architectural: Suitable for building exteriors, industrial plant roofs, and large public facilities, where aesthetics and low maintenance are paramount.

    Packaging

    steel coil packaging
    Steel Coil Packaging
    Steel Sheet Packaging
    Steel Sheet Packaging

    Why Choose Us?

    • We are a professional color-coated steel coil manufacturer with over 14 years of production experience and successful exporting to over 100 countries.
    • We are a trustworthy enterprise, certified with multiple certifications, including ISO 9001, ISO 14001, and Supplier of Reliability.
    • We have three color-coated steel production lines, providing ample production capacity and fast delivery for large orders.
    • We utilize a comprehensive testing center to thoroughly inspect our color-coated steel products for dimensions, performance, and chemical composition, and we also support third-party testing.
    Our Certificates
    Our Certificates

    If you are interested in our color-coated steel products, please feel free to contact us.
