RAL3020 PPGI Coil
Our RAL3020 PPGI color steel coils feature vibrant colors and stable performance. Available in multiple thicknesses and coating options, they support slitting and cutting. Contact us immediately for samples or quotes.
- Thickness: 0.12mm – 2.00mm
- Width: 600mm – 1250mm
- Material: DX51D, DX52D, DX53D, DX54D, S350GD, S550GD, A653, etc.
- Compliance Standards: ASTM, JIS, EN, GB

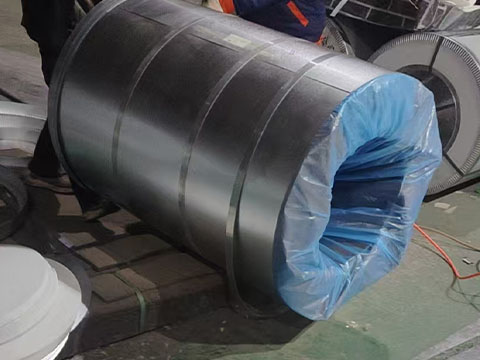

Ensure product quality and transportation
RAL3020 PPGI Coil Specification
| Product Name | RAL3020 PPGI Color Steel Coil |
| Thickness | 0.12mm – 2.00mm |
| Width | 600mm – 1250mm |
| Substrate | Galvanized steel coil |
| Material | DX51D, DX52D, DX53D, DX54D, S350GD, S550GD, A653, etc. |
| Standards | ASTM, EN, GB |
| Zinc Coating | Z30 – Z275g/㎡ |
| Paint Thickness | Top: 10-35 μm, Back: 5-14 μm |
| Paint Type | PE, SMP, HDP, PVDF |
| Coating Structure | 2/1, 2/2, 3/2, 3/3 |
| Color | RAL 3020 (Traffic Red) |
| Coil Weight | 3 – 8 tons |
| Coil Diameter | Φ508mm/Φ610mm |
| Processing Services | Slitting, Cutting, Forming, Punching, Stamping, Lamination, etc. |

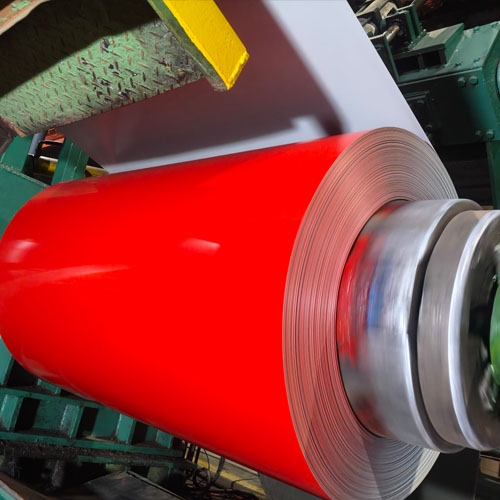

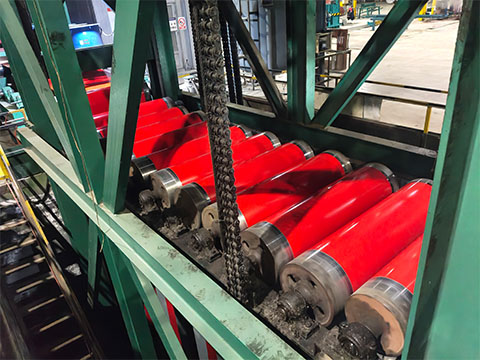

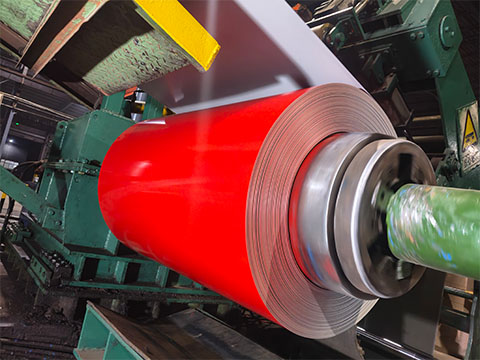

Production Video

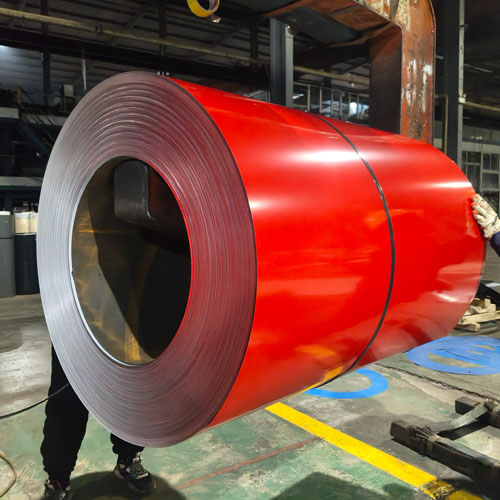

This is RAL3020 PPGI color steel coil produced for our Colombian client, with a thickness of 0.41mm and width of 1220mm.
RAL3020 PPGI Color Steel Coil Applications
- Commercial & Architectural Facades: Roofing and wall cladding for industrial plants/warehouses; signage for shopping malls, brand store decorations, etc.
- Electrical Appliances: Outer casings for microwaves, electric ovens, audio systems, etc.; decorative panels for charging stations.
- Machinery & Equipment: Exterior cladding and decorative panels for excavators, loaders, tractors, harvesters, seeders.
- Other Applications: Surface metal sheets for metal sandwich panels, container truck shells, shelving systems, etc.
Advantages of Our RAL3020 PPGI Coil
- High Color Consistency: Our fully automated paint-mixing and precision coating systems ensure near-zero color deviation, maintaining consistent hues across every batch of color-coated steel coils.
- Strict Standard Compliance: We rigorously adhere to ASTM, EN, GB, and other international standards during production. Premium substrate materials are selected, and every stage undergoes stringent quality control to guarantee full compliance with customer specifications. Third-party inspections are supported.
- Value-Added Services: We offer processing services including slitting, cutting, and profiling. We supply PPGI flat sheets, PPGI steel strips, PPGI perforated sheets, PPGI roofing sheets, and more.
FAQ About RAL3020 PPGI Color Steel Coil
Q1: Can your RAL3020 color guarantee exact matching with standard color charts? Do you support custom colors?
A: Yes, RAL3020 is a standard color code, and we can precisely match original color charts; Custom colors are supported,please send us a sample, and we will formulate the color based on your sample.
Q2: How long will this color-coated steel sheet take to fade when used outdoors?
A: Fading speed depends on local climate conditions (e.g., air humidity, sunlight intensity, rainfall acidity). Our paint coatings include PE/SMP/HDP/PVDF, with PVDF offering the highest weather resistance.
- For heavy outdoor corrosion protection (e.g., coastal factory roofs), we recommend PVDF coating + 275g/㎡ galvanized layer;
- For standard outdoor applications (e.g., inland warehouse walls), HDP coating + 80g/㎡ galvanized layer is suitable;
- For indoor applications (e.g., furniture, appliances), PE coating + 30-60g/㎡ galvanized layer meets requirements.
Q3: Can you produce non-standard widths or small-batch orders?
A: Absolutely. We have slitting equipment to precisely cut to your required width. For small batch orders, the minimum order quantity is 5 tons for standard specifications.
Customer Reviews
Why Choose Us?
We are a professional PPGI coil manufacturer in China with over 14 years of production experience, having successfully exported to over 100 countries. Our color-coated steel products have received high praise from customers worldwide. If you have any questions about color-coated steel coils, feel free to contact us anytime.
