Ral 9003 PPGI/PPGL

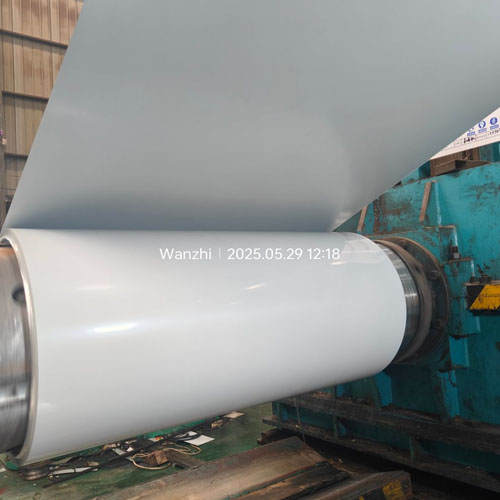

Ral9003, also known as signal white, is a common color for color-coated steel coils. Our color-coated steel coils include PPGI and PPGL, both of which can be coated with Ral9003. The finished products have rich color, high gloss, and are durable and beautiful.

Thickness: 0.12mm – 2.0mm
Width: 600mm – 1250mm
Coating thickness: Z30g/m² – Z275g/m², AZ30g/m² – AZ150g/m²
Coil weight: 3 tons – 6 tons or customized

Ensure product quality and transportation

    PPGI (pre-painted galvanized steel coil) and PPGL (pre-painted galvalume steel coil) are two common color-coated steel coils. After the surface is coated with RAL 9003 paint, it has both corrosion resistance and aesthetics.

    Specification

    Product name Ral9003 PPGI/PPGL Steel Coil
    Thickness 0.12mm – 2.0mm
    Width 600mm – 1250mm
    Coating thickness Z30g/m² – Z275g/m², AZ30g/m² – AZ150g/m²
    Coil weight 3 tons – 6 tons or customized
    Inner diameter 508mm or 610mm
    Substrate Material hot dip galvanized steelelectro galvanized steelgalvalume steel
    Surface treatment Fingerprint resistance, antibacterial, embossing, wrinkle, matte, high gloss, frosted, etc.
    Standard ASTM, EN, DIN, GB, JIS, etc.
    Paint Type PE, SMP, HDP, PVDF
    Protective film PVC
    MOQ 10 tons
    Packaging Standard export package or as per your requirements

    Ral 9003 PPGI vs Ral 9003 PPGL

    Features RAL9003 PPGI RAL9003 PPGL
    Substrate Galvanized steel(Zinc) Galvalume steel(55% aluminum + 43.4% zinc + 1.6% silicon)
    Corrosion resistance Good (suitable for general environment) Stronger (resistant to high temperature, moisture and chemical corrosion)
    Processing performance Good Good
    Welding performance Better Poor
    Cost Low (low zinc cost) Higher (high cost of aluminum-zinc alloy)
    Service life 15-25 years (general environment) 15-25 years (harsh environment)

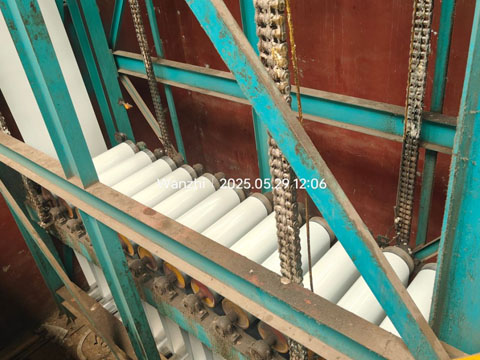

    Coating Coated Steel Coil
    Coating Coated Steel Coil

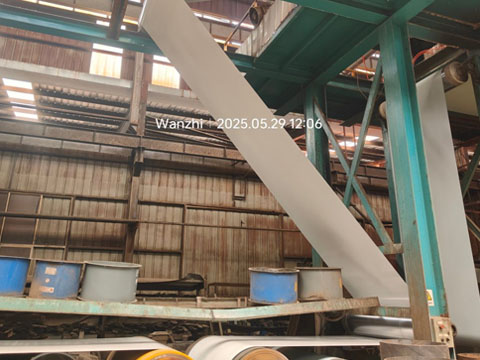

    Multiple coating
    Multiple coating

    Ral9003 (Signal White) PPGI/PPGL Application

    RAL 9003 PPGI (galvanized) is more suitable for dry or mild climate areas, such as:

    • the roof and wall of factory/warehouse of ordinary buildings, garage doors/awnings, made into color steel sandwich panels.
    • Home appliance panels such as refrigerators, washing machines, air conditioners.
    • Ordinary cabinets, distribution boxes, metal furniture/shelves, ordinary road sound insulation boards, etc.

    RAL 9003 PPGL (galvanized) is more suitable for coastal and high humidity areas, such as:

    • the roofs and walls of pollution-resistant buildings in coastal buildings and industrial areas.
    • Industrial chimneys, boiler outer walls and other high temperature environments.
    • Airports, gymnasiums and other high-end buildings with long-term weathering requirements.

     Wanzhi Ral 9003 PPGI/PPGL Advantages

    1. Ral9003 is a standard color value, with strict color difference control, no fluorescent brightener, and no yellowing after long-term use.
    2. Gloss can be selected, including high gloss, semi-matte, and matte to meet your different needs.
    3. In addition to the above advantages, it also has the characteristics of strong corrosion resistance, high strength, and high temperature resistance.

    PPGI/PPGL Pattern

    In addition to coating a variety of colors (Ral color card), we can also produce a variety of patterns.

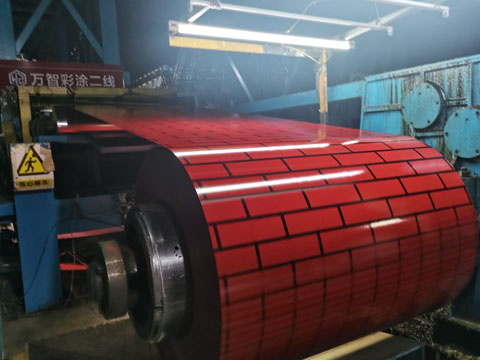

    Brick pattern PPGI PPGL
    Brick pattern PPGI PPGL

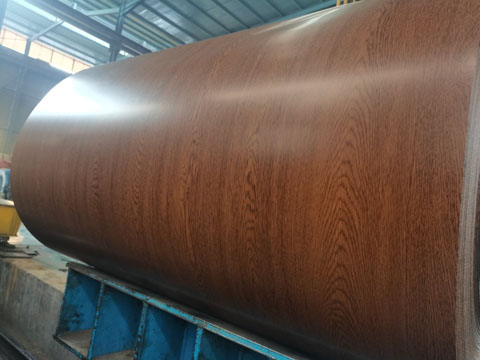

    Wood grain color steel coil
    Wood grain color steel coil
    • Wood grain: The texture of a variety of woods, such as oak grain, walnut grain, etc., is often used in wall panels, partitions, furniture panels, etc.
    • Stone grain/brick pattern: It has the shape and texture of bricks and is often used for building exterior wall decoration, interior partitions, etc.
    • Camouflage pattern: The color steel coil with camouflage pattern has certain concealment and decorativeness, and can be used in military or special industrial fields, such as equipment housing, protective panels, etc.
    • Flower pattern: Various flower patterns, beautiful and realistic, are often used for background walls, cabinets, decorative floors, etc.
    Camouflage pattern PPGI PPGL
    Camouflage pattern PPGI PPGL

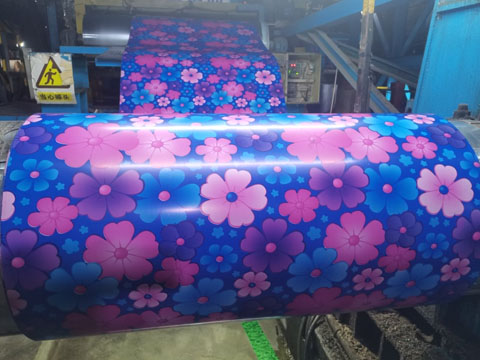

    Flower pattern PPGI PPGL
    Flower pattern PPGI PPGL

    Why Choose Us?

    Wanzhi Steel is a manufacturer specializing in the production of coated steel. It has multiple color-coated steel production lines with sufficient production capacity and high production efficiency. It can deliver large orders quickly and can provide the most competitive prices.
