RAL 7024 PPGI/PPGL

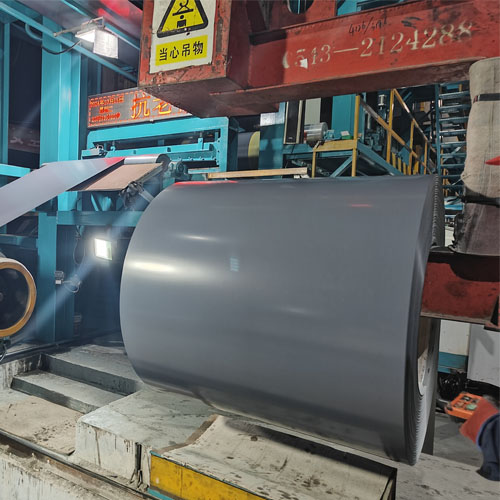

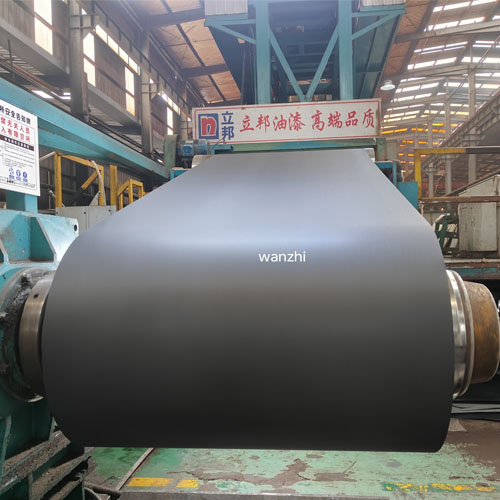

The RAL 7024 (graphite gray) color-coated steel coils we supply have matte and glossy surfaces, including PPGI coil and PPGL coil, with small color difference, stable performance and wide application.

Thickness: 0.12mm – 1.5mm
Width: 600mm – 1250mm
Coating thickness: Z30-Z275g/m², AZ30-AZ150g/m²
Coil weight: 2 – 8 tons (customizable)

Ensure product quality and transportation

    RAL 7024 color-coated steel coil is a metal material with galvanized steel (PPGI) or galvalume steel (PPGL) as the base material, and coated with RAL 7024 standard color organic coating after surface pretreatment. It has the characteristics of strong corrosion resistance and strong decorative effect, and is widely used in many fields such as construction, home appliances, transportation, etc.

    Specification

    Product name RAL 7024 Color Coated Steel Coil (PPGI/PPGL)
    Thickness 0.12mm – 1.5mm
    Width 600mm – 1250mm
    Coating thickness Z30-Z275g/m², AZ30-AZ150g/m²
    Inner diameter 508mm or 610mm
    Coil weight 2 – 8 tons (customizable)
    Gloss High gloss, matte
    Surface texture Smooth, orange peel, embossed, etc.
    Paint Type PE, SMP, HDP, PVDF
    Material SPCC,SGCC,DX51D,DX52D,DX53D,G350,G450,G550,Q195, Q235, etc
    Standard ASTM, EN, DIN, GB, JIS, etc.
    Processing Services Bending, slitting, cutting, punching, profiling, etc.
    MOQ 5 tons
    Packaging Standard export package or as per your requirements

    Production Video

    RAL 7024 Color Coated Steel Coil Application

    1. Architectural field: Made into color-coated profile sheets and metal sandwich panels for building roofs, walls, guardrails, rolling doors, blinds, etc.
    2. Home appliance industry: Cut into sheets and used as shell materials for refrigerators, washing machines, air conditioners and other home appliances.
    3. Industrial equipment: Used for shelves, logistics boxes, control cabinets, electrical cabinets, etc.
    4. Transportation: Suitable for container side panels, subway/high-speed rail inner wall panels, carriage parts, sound insulation barriers, traffic signs, etc.
    5. Other applications: Such as furniture panels, office partitions, advertising panels, etc.

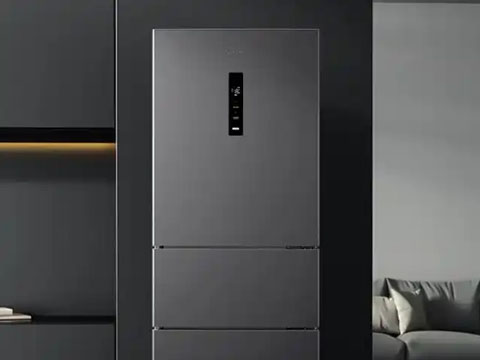

    Gray appliances
    Gray appliances

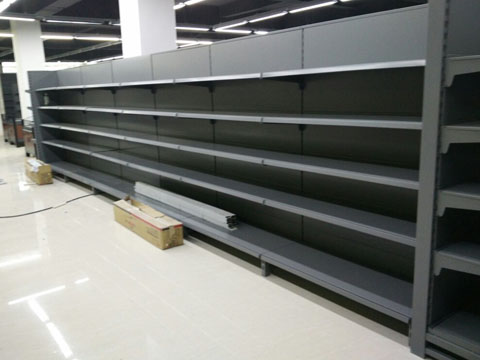

    Gray shelves
    Gray shelves

    Packaging

    steel coil packaging
    Steel Coil Packaging

    Why Choose Us?

    • The company has passed ISO 9001, ISO14001 and other certifications and is a trustworthy enterprise in China.
    • In addition to the color-coated steel coil production line, it also includes cutting, slitting, profiling and other equipment.
    • With a variety of processing equipment, we can provide coils, plates, strips, corrugated plates, punched plates and other products.

    Wanzhi Steel is a professional color-coated steel coil manufacturer in China. The factory is located in Binzhou, Shandong. With multiple color-coated steel production lines, it has sufficient production capacity and can support large-volume orders. If you are interested in RAL 7024 or other color-coated coils, please feel free to contact us.
