DX53D Galvanized Steel
DX53D galvanized steel coil/sheet is a metal material with specific properties and applications. It has excellent mechanical properties and deep drawing characteristics and is easy to perform operations such as stamping and cutting.
Thickness: 0.2mm – 5mm

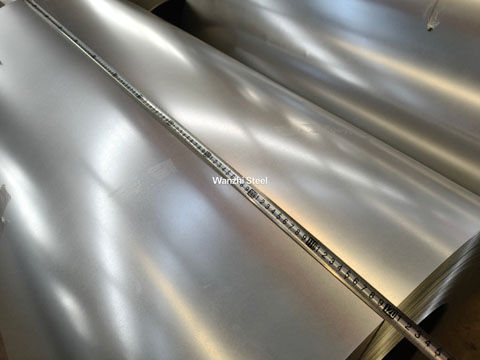

Width: 600mm – 1500mm
Surface Treatment: Chromic acid passivation, chromium-free passivation, oiled, oil-free, fingerprint-resistant treatment, etc.
Ensure product quality and transportation
DX53D is a hot dip galvanized steel sheet grade with excellent ductility and deep drawing properties, based on European standard EN 10346, often used as the substrate for gi coil or gl coil.
Specification
| Product Name | DX53D Galvanized Steel Coil/Sheet |
| Thickness | 0.2mm – 5mm |
| Width | 600mm – 1500mm |
| Length | Steel Coil: Inner diameter 610mm (24″) or 508mm (20″), outer diameter is not limited. Steel Sheet: Typically delivered in fixed lengths, such as 2m, 2.5m, and 3m. |
| Material Grade | DX53D |
| Standard | EN 10346 |
| Coating weight | Z30g/㎡ – Z275g/㎡ |
| Technology | Hot-dip galvanized, electro-galvanized |
| Yield Strength | 140 – 240 MPa |
| Tensile Strength | 270 – 350 MPa |
| Elongation (A80mm) | ≥ 24% |
| Surface Treatment | Chromic acid passivation, chromium-free passivation, oiled, oil-free, fingerprint-resistant treatment, etc. |
| Spangle Types | Large Spangle, Regular Spangle, Small Spangle, Zero Spangle |
| MOQ | 10 tons |
| Packaging | Standard export package or as per your requirements |
DX53D Galvanized Steel Advantages
- Strong Deep Drawability: DX53D boasts high elongation (≥24%), high r-value (≥1.7), and high n-value, allowing it to withstand intense deep drawing processes such as stretching and bulging without cracking or surface defects.
- Consistent Forming: Strict production process requirements ensure uniform and stable mechanical properties, making it particularly suitable for large-scale, high-quality continuous production.
- Corrosion Protection: As a galvanized sheet, it inherits the sacrificial anodic protection of the zinc layer, providing long-lasting corrosion protection to the substrate and extending its service life.
DX53D Galvanized Steel Applications
- Home Appliance Industry: Washing machine inner and outer drums, covers; Refrigerators: Door panels and inner tanks; Air conditioner outdoor unit housings and internal structural components.
- Automotive Industry: Fuel tanks, oil pans, seat frames, and other housings requiring deep drawing.
- Construction Industry: Can be used on roofs, walls, floors, and other areas.
- Machinery Manufacturing Industry: Housings, brackets, and bases of machinery and equipment.
DX51D vs DX52D vs DX53D
| Item | DX51D | DX52D | DX53D |
| Main Application | General use, simple molding | Mechanical bite, bending | Deep drawing, complex stretching |
| Moldability | General | Good | Excellent |
| Key Features | Relatively low elongation | Improved bending and fatigue resistance | High elongation, high r-value, high n-value |
| Cost | Minimum | Medium | Highest |
Why Choose Us?
Wanzhi Steel is a professional manufacturer of galvanized steel products with more than 14 years of production and export experience. With advanced equipment and professional technicians, we can provide you with high-quality galvanized steel products.
