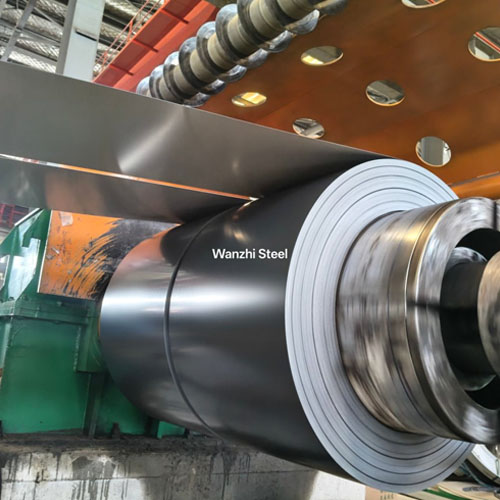

DX51D PPGI

Our DX51D PPGI coils offer strong corrosion resistance, a wide range of colors, and a variety of surface textures. Custom colors and patterns are also available.

Thickness: 0.12mm – 2.0mm
Width: 600mm – 1250mm
Paint Type: PE, HDP, SMP, PVDF
Factory Address: Binzhou City, Shandong Province

Ensure product quality and transportation

    DX51D PPGI is a galvanized steel coil made from DX51D (EN 10346 standard) steel. The surface is then coated with various paint coatings to create a PPGI coil. It combines the strength of steel with strong corrosion resistance and decorative properties.

    Specification

    Product Name DX51D PPGI
    Thickness 0.12mm – 2.0mm
    Width 600mm – 1250mm
    Paint Type PE, HDP, SMP, PVDF
    Galvanized coating weight Z30-Z275g/㎡
    Coating system 2/1 (single coating on front + single coating on back), 2/2 (double coating on both sides)
    Mechanical properties Tensile strength 315-670 MPa
    Typical coil weight 3-8 tons
    Inner hole diameter 508mm/610mm
    Surface texture High gloss, matte, wrinkled, orange peel texture, wood grain, brick texture, stone texture, etc.
    Surface treatment Oil-free, passivated, oil-based, fingerprint-resistant, antibacterial, laminating, etc.
    Processing services Slitting, cutting, punching, profiling, etc.
    MOQ 5 tons
    Packaging Standard export package or as per your requirements

    Note

    • High dimensional accuracy: Tolerance ±0.03mm
    • Coating Customization: Select from renowned paint brands, supporting full RAL color customization, offering matte, gloss, and wood-grain finishes.
    • Paint Coating: PE is the most commonly used and cost-effective; HDP offers improved weather resistance; PVDF offers top-tier weather resistance and is used in high-end buildings.

    DX51D PPGI Applications

    1. Construction and Infrastructure: Industrial plant roofs, warehouse and logistics center exterior wall cladding, airport/subway station awnings, highway guardrails and signage, office partitions, shopping mall ceilings, and cleanroom wall panels, combining decorative and cleanliness.
    2. Home Furnishings and Appliances: Core materials for refrigerator housings, washing machine cabinets, oven doors, microwave oven panels, and other appliance components.
    3. Commercial and Manufacturing: Supermarket shelves, advertising light boxes, cold chain cold storage panels, steel furniture, and electrical control cabinets.
    For roof
    For roof
    ppgi for home appliances
    ppgi for home appliances

    Advantages of Our DX51D PPGI Coil

    • We have our own galvanized steel coil production line, enabling us to produce DX51D galvanized steel coils, ensuring corrosion and weather resistance.
    • In addition to coils, we have processing equipment for slitting, cutting, punching, and profiling, allowing us to provide PPGI strip, flat sheets, perforated sheets, and corrugated sheets.
    • We offer a variety of colors (Ral color palette), gloss levels (high gloss, matte), and surface textures (orange peel, wood grain, stone grain, etc.) to meet diverse decorative needs.
    Green wrinkle pre-painted steel coil
    Green wrinkle pre-painted steel coil
    Wood-grain-ppgi
    Wood grain ppgi

    About Purchasing

    • Minimum Order Quantity: 5 tons for standard specifications. Larger quantities offer more favorable pricing. If you don’t know the weight, you can use our weight calculator.
    • Leadtime: 5-15 business days for small orders, 15-30 business days for large orders (over 100 tons).
    • Packaging and Shipping: We use export-standard moisture-proof packaging, support both sea and land transportation, and provide full logistics tracking.
    • Testing Center: We have our own testing center, where we conduct rigorous testing on our products for corrosion resistance, mechanical properties, dimensions, and more.
    quality inspection
    PPGI TEST

    Packaging

    steel coil packaging
    Steel Coil Packaging
    Steel Sheet Packaging
    Steel Sheet Packaging

    Why Choose Us?

    Our Certificates
    Our Certificates

    As a professional PPGI coil manufacturer in China, we hold multiple certifications, including ISO 9001 and ISO 14001. Whether you’re a construction contractor, home appliance manufacturer, or furniture manufacturer, we can provide the DX51D PPGI product that meets your specific needs. Feel free to contact us for more information.
