Brick Pattern Printed Steel Coil

Brick-printed steel coils feature a simulated brick pattern, combining decorative elements with the functionality of steel. We offer a variety of brick patterns, customizable designs and sizes, and a variety of processing services. Please feel free to contact us if you require any.

Thickness: 0.12mm – 1.5mm
Width: 600mm – 1250mm
Substrate: Galvanized steel (GI), galvalume steel (GL), cold-rolled steel (CR)

Ensure product quality and transportation

    Specifications

    Product Name Brick Pattern Printed Steel Coil
    Thickness 0.12mm – 1.5mm
    Width 600mm – 1250mm
    Substrate Galvanized steel (GI), galvalume steel (GL), cold-rolled steel (CR)
    Coil weight 3tons – 8tons/coil
    Coil inner diameter 508mm (20 inches) or 610mm (24 inches)
    Paint Type PE, SMP, HDP, PVDF
    Material DX51D, DX52D, DX53D, A653, SGCC, S280GD, S350GD, S550GD
    Standards GB, ASTM, JIS, EN
    Coating thickness 15-25μm on the front, 5-10μm on the back
    Corrosion resistance Salt spray test ≥ 500 hours
    Flexibility No cracks after 180° bending (T-bend test)
    Hardness Pencil hardness ≥ HB
    Adhesion Cross-hatch test, grade 0-1
    MOQ 5 tons
    Packaging Standard export package or as per your requirements

    Brick-Pattern Printed Steel Coil Applications

    • Architectural Decoration: Exterior walls, roofs, fences, interior background walls, etc.
    • Interior Decoration: Walls, ceilings, partitions, etc.
    • Commercial Displays: Shop fronts, exhibition stands, backdrops, billboards, etc.
    • Temporary Construction: Wall paneling for expandable container homes, modular buildings, guard booths, etc.

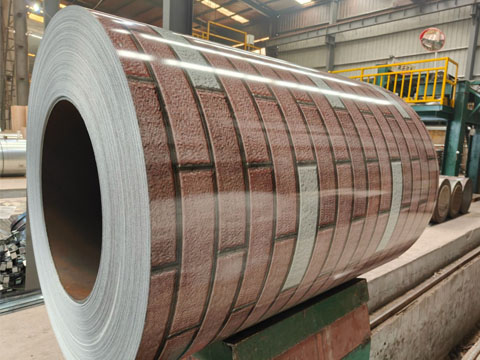

    Brick pattern ppgi steel coil completed
    Brick pattern ppgi steel coil completed

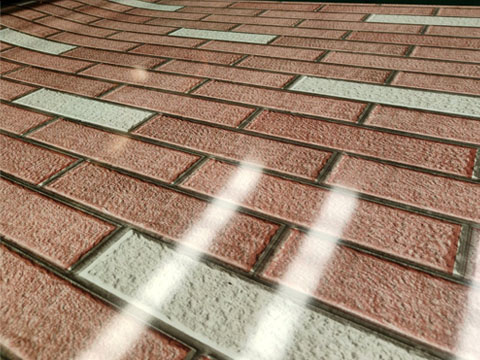

    Brick pattern color steel coil details
    Brick pattern color steel coil details

    Advantages of Brick-Pattern Printed Steel Coil

    1. High Decorative Value: A variety of simulated brick patterns are available to suit different architectural styles, combining the texture of steel with the aesthetic of ceramic tiles.
    2. Lightweight: Much lighter than traditional ceramic tiles, significantly reducing building loads and suitable for a variety of structural scenarios.
    3. Extremely Durable: Resists chipping and cracking, and offers superior weather resistance (such as UV resistance, acid and alkali resistance) than traditional ceramic tiles, with low maintenance costs.
    4. Highly Cost-Effective: Material, construction, and maintenance costs are significantly lower than those of real brick walls, resulting in a low overall cost.

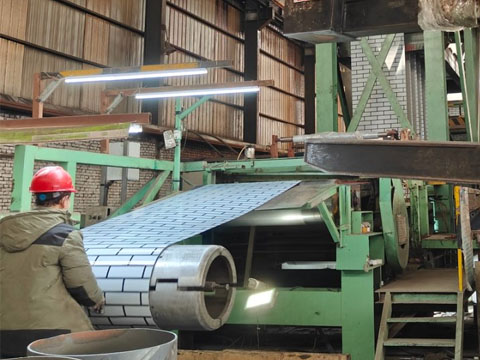

    Brick-patterned steel coil is being coiled
    Brick-patterned steel coil is being coiled

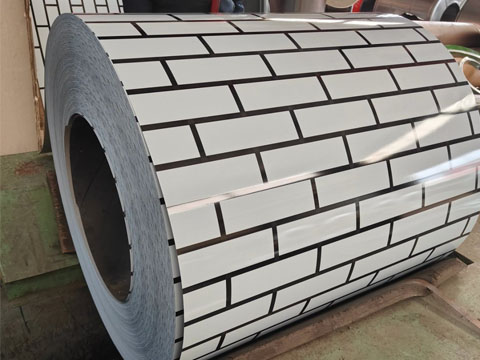

    Brick pattern steel coil production completed
    Brick pattern steel coil production completed

    FAQ About Brick Pattern Color Coil

    Q1: Can brick pattern color steel coils be customized?

    A: We support customization, but you will need to provide a sample of the brick pattern. Generally, our stock of brick patterns will meet your needs.

    Q2: What brick patterns do you offer?

    A: We offer red brick, blue brick, white brick, antique brick, geometric color-blocking brick, 3D brick, and more.

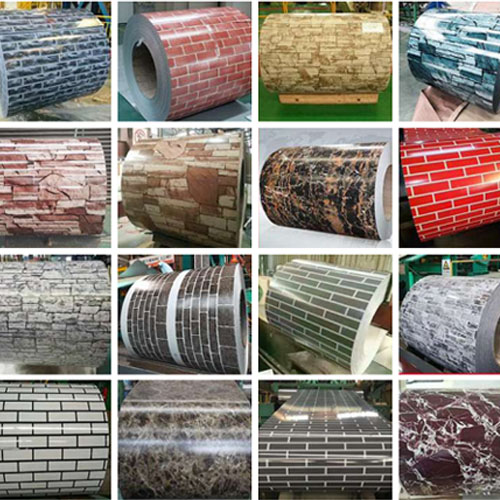

    Different patterns of brick color steel coils

    Q3: How can you determine the quality of brick pattern color steel coils?

    A: Check the coating adhesion (no peeling in the cross-cut test) and hardness (pencil hardness ≥ 2H); The surface pattern should be clear and the color should be consistent (you can compare samples with batch production).

    Q4: What factors influence the price of brick pattern color steel coils?

    A: It is affected by factors such as the substrate material (galvanized steel vs. cold-rolled steel), zinc coating thickness (Z30 vs. Z275), coating type (PE vs. PVDF), and specifications.

    Why Choose Us?

    • We use high-quality substrates, ensuring high paint adhesion, clear patterns, and virtually no color variation.
    • To ensure product quality, we maintain a state-of-the-art testing center that inspects key indicators including appearance, mechanical properties, corrosion resistance, and adhesion. We also support third-party testing.
    • With over 17 years of production experience and 14 years of international export experience, we have successfully served over 120 countries.

    Wanzhi Steel is a professional printed steel coil manufacturer with two printed steel coil production lines. Our advanced production technology ensures clear, three-dimensional patterns. If you require printed steel coils, please contact us.
