3mm Galvanised Sheet
Wanzhi Steel is a professional manufacturer of galvanized steel sheets in China. Among our offerings, 3mm galvanized steel sheets represent a common specification and one of our most popular products, combining strength, corrosion resistance, cost-effectiveness, and workability.
- Width: ≤1500mm
- Length: ≤6m or cut according to customer requirements
- Substrate material: DX5ID+Z, DX52D+Z, DX53D+Z, S250GD+Z, S350GD+Z, S550GD+Z, SPCC+Z, SGCC+Z, A653+Z, etc.
Ensure product quality and transportation
3mm galvanized steel sheets are medium-thick plates characterized by high strength, excellent corrosion resistance, and lightweight properties. They find extensive applications in construction, industrial, and transportation sectors.
Specifications
| Product Name | 3mm Galvanised Sheet |
| Thickness | 3mm |
| Width | ≤1500mm |
| Length | ≤6m or cut according to customer requirements |
| Zinc Coating | Z30g/m² – Z275g/m² |
| Surface type | Large Spangle, Normal Spangle, Small Spangle, Zero Spangle-Free |
| Substrate material | DX5ID+Z, DX52D+Z, DX53D+Z, S250GD+Z, S350GD+Z, S550GD+Z, SPCC+Z, SGCC+Z, A653+Z, etc. |
| Standard | GB, EN, JIS, ASTM |
| Surface treatment | Passivation, oiling, fingerprint resistance, pre-coating, etc. |
| Available product types | Flat sheets, embossed sheets, galvanized floor decking, galvanized highway guardrail |
| Yield strength | 220-340MPa |
| Tensile strength | 370-520MPa |
| Elongation | ≥20% |
| MOQ | 10 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |
Weight of 3mm Galvanized Steel Plate
To calculate the weight of a 3mm galvanized steel plate, you need its length (m) and width (m). The formula is as follows:
- Single-piece weight (kg) = Thickness (m) × Width (m) × Length (m) × 7850 kg/m³
- Example: 3mm × 1m × 2m × 7.85 = 47.1 kg.
- This formula excludes the weight of the galvanized coating.
Theoretical Weight per Sheet for Common Specifications
| Width (m) | Length (m) | Area of a single sheet (㎡) | Estimated weight (kg) after galvanizing |
| 0.914 | 2 | 1.828 | 43.91 |
| 0.914 | 3 | 2.742 | 65.87 |
| 0.914 | 6 | 5.484 | 131.73 |
| 1 | 2 | 2 | 48.04 |
| 1 | 3 | 3 | 72.06 |
| 1 | 6 | 6 | 144.12 |
| 1.219 | 2 | 2.438 | 58.56 |
| 1.219 | 3 | 3.657 | 87.84 |
| 1.219 | 6 | 7.314 | 175.68 |
| 1.25 | 2 | 2.5 | 60.05 |
| 1.25 | 3 | 3.75 | 90.08 |
| 1.25 | 6 | 7.5 | 180.15 |
| 1.5 | 2 | 3 | 72.06 |
| 1.5 | 3 | 4.5 | 108.09 |
| 1.5 | 6 | 9 | 216.18 |
For other specifications, use our metal sheet calculator for quick weight calculations.
Features of 3mm Galvanized Steel Sheet
- High Corrosion Resistance: Zinc coating ranges from Z30 to Z275 g/m², suitable for diverse environments including harsh conditions.
- High Load-Bearing Capacity: The 3mm thickness provides sufficient strength for use as load-bearing components.
- Excellent Workability: Suitable for conventional processing such as cutting, punching, bending, and roll forming.
- Cost-Effective: 3mm is a common thickness, offering high production efficiency with minimal subsequent maintenance costs.
Applications of 3mm Galvanized Steel Sheets
Construction Engineering
- Roofing Systems: Roof panels, skylight support structures, gutters.
- Wall Construction: Exterior wall cladding, light steel framing, partition frameworks.
- Steel Structures: Purlins, support beams, steel platforms, stair treads, cable trays, warehouse shelving frameworks.
Industrial Manufacturing
- Equipment Enclosures: Electrical distribution boxes, control cabinets, dust collection equipment.
- Mechanical Components: Support brackets, bases, protective covers, conveyor system components.
Transportation
- Road Facilities: Highway guardrails, median barriers, signpost bases.
- Rail Transit: Subway ventilation ducts, platform screen door components.
- Vehicle Manufacturing: Truck bodies, protective panels for specialty vehicles.
Agriculture & New Energy
- Agricultural Facilities: Greenhouse frameworks, livestock/poultry farming equipment, irrigation system piping.
- New Energy: Photovoltaic mounting structures, wind turbine foundation components, energy storage enclosures.
We Supply 3mm Galvanized Steel Plate Types
Utilizing our profiling, cutting, and other processing equipment, we offer 3mm galvanized steel plates including:
- Galvanized Flat Plate: Directly cut from galvanized steel coils, this is the base-grade galvanized steel plate that remains unprofiled and flat.

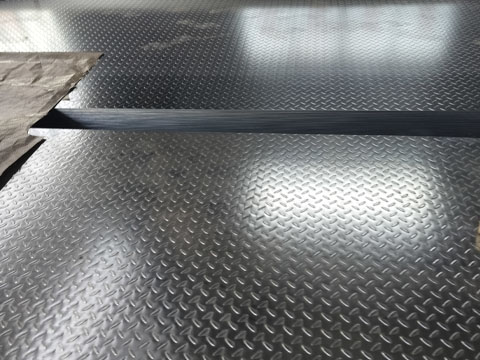

- Galvanized embossed steel sheets: Directly embossed on galvanized flat sheets to form raised, regularly patterned designs (diamond, round dot, strip, etc.).
- Galvanized floor decking: Formed through precision roll forming into specific closed or open rib profiles, a specialized profiled steel sheet.

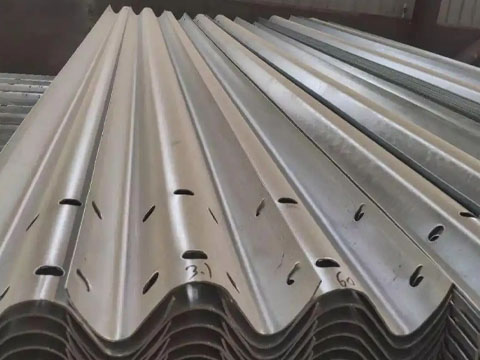

- Galvanized highway guardrail panels: Available in W-type (double wave) or triple wave configurations, these panels are secured to highway sides via posts and blocking blocks.
Note: We also supply galvanized corrugated steel sheets, though their maximum thickness is limited to 2.5mm.
Why Choose Us?
- We operate three in-house galvanized steel coil production lines equipped with shearing, slitting, and forming machinery, enabling us to offer a diverse range of product types.
- Our dedicated testing center conducts inspections on galvanized steel products, including zinc coating thickness, corrosion resistance, dimensional accuracy, and mechanical properties, ensuring compliance with customer specifications.
- With over 14 years of production experience, we consistently uphold integrity in business operations and have obtained multiple certifications including ISO 9001, ISO 14001, and CE.
As a leading galvanized steel manufacturer in China, we have partnered with over 120 countries, including Russia, Brazil, Iran, Madagascar, Turkmenistan, Lebanon, Morocco, Colombia, Guatemala, South Africa, Nigeria, and more. Our high-quality products and exceptional service have earned us a large base of loyal customers. If you require galvanized steel products, please feel free to contact us.
