Galvanized Steel Coils for HVAC
One of the main industries we serve is the HVAC system, producing galvanized steel coils of different grades/standards and with various zinc coatings, as well as galvanized steel sheets of various specifications.
- Thickness: 0.4mm – 2.0mm
- Standard Width: 600mm – 1250mm
- Material：DX51D+Z / SGCC+Z、S220GD+Z、S250GD+Z、S280GD+Z
Ensure product quality and transportation
Galvanized steel coils, with their corrosion resistance, strength, and ease of processing, are used in almost every aspect of HVAC systems. We not only produce galvanized steel coils, but also have cutting equipment to precisely cut them into galvanized steel sheets.
Specifications of Galvanized Steel Coils For HVAC
| Product Name | Galvanized Steel Coils for HVAC |
| Thickness | 0.4mm – 2.0mm |
| Standard Width | 1000mm, 1219mm (4 feet), 1250mm, or custom slit widths required |
| Zinc Coating | Z60g/m² – Z275g/m² |

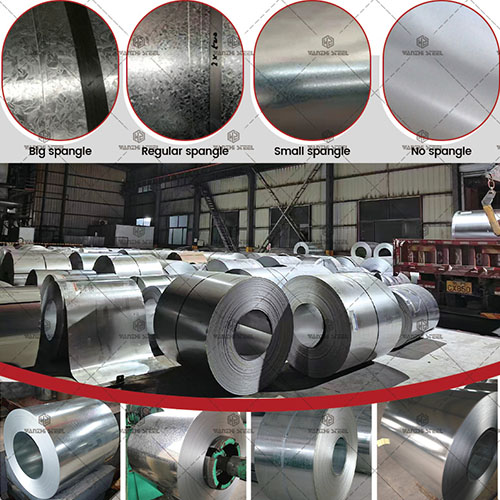

| Surface Structure | Large Spangle, Normal Spangle (N), Small Spangle (M), Spangle-Free (F) |
| Coil Weight | 3 Tons – 8 Tons (Customizable) |
| Inner diameter | 508mm (20 inches) or 610mm (24 inches) |
| MOQ | 10 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |

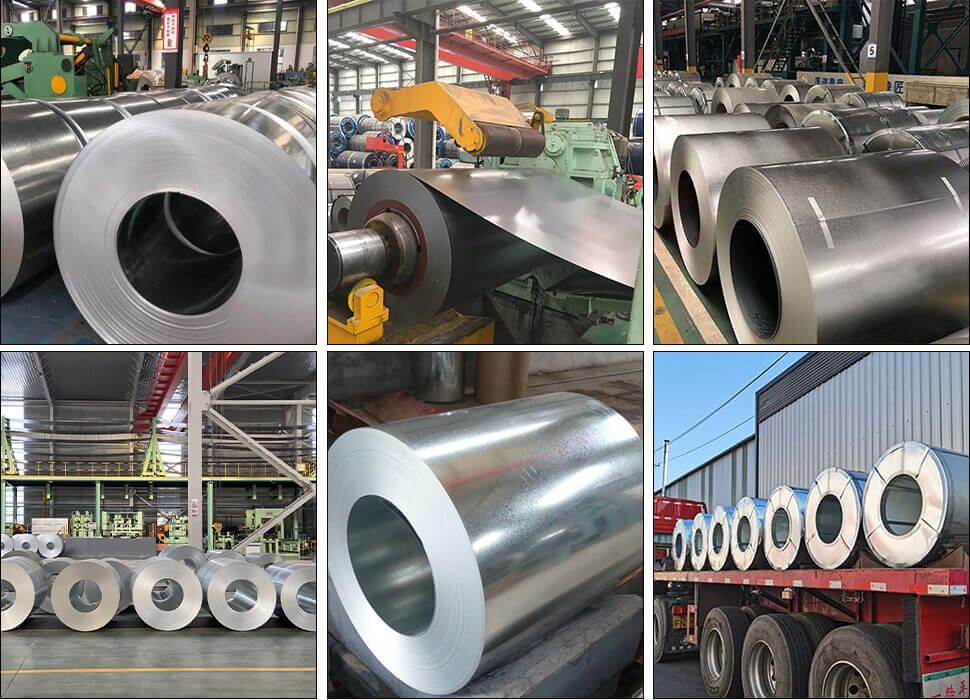

Our GI coil production line
Applications of Galvanized Steel Coil in HVAC Systems

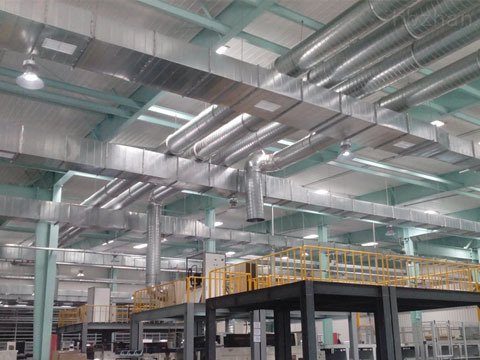

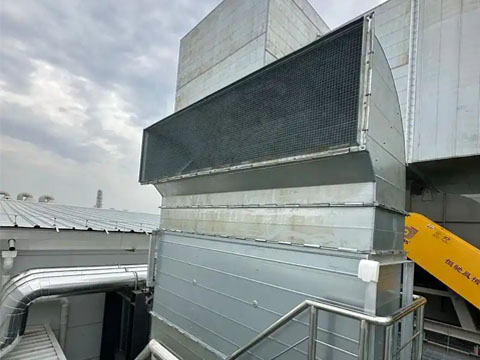

- Ventilation Duct Systems: This is the primary application scenario for galvanized steel coils, including supply air ducts, return air ducts, fresh air ducts, exhaust air ducts/smoke exhaust ducts, and ductwork fittings such as elbows, tees, and reducers.
- Structural Support Components: Components such as duct hangers, brackets, and fixing clamps, as well as the base frame of air conditioning units, require a certain degree of rigidity and corrosion resistance, which galvanized steel coils can meet.
- Air Conditioning Unit and Equipment Housings: The housings of modular air conditioning units/fresh air handling units, fan boxes/fan coil units, and fan coil units/indoor units are often made of galvanized steel coils, balancing strength and corrosion resistance.
Recommended Galvanized Steel Coil Materials and Zinc Coating
| Application Areas | Typical Applications | Recommended Materials | Recommended zinc coating weight (double-sided) |
| Air Ducts and Fittings | Rectangular/circular ducts, elbows, tees | DX51D+Z / SGCC | Indoor dry: ≥80g/m² (Z80) Indoor humid: ≥120g/m² (Z120) Outdoor / Slight corrosion: ≥180g/m² (Z180) High humidity / High salinity: Z275 or aluminum zinc plated |
| Air Duct Hangers/Brackets | Duct and equipment support | S220GD+Z / S250GD+Z | Indoor: ≥80g/m² (Z80) Outdoor / Damp: ≥120g/m² (Z120) |
| Air Conditioning Units/Fan Coil Unit Housings | Equipment protection | DX51D+Z / SGCC | Indoor dry: ≥80g/m² (Z80) Indoor humid: ≥120g/m² (Z120) Outdoor: ≥180g/m² (Z180) |
| Condensate Drainage Channels/Troughs | Condensate collection | DX51D+Z / SGCC | Indoor humidity: ≥120g/m² (Z120) Outdoor / High humidity: ≥180g/m² (Z180) |
| Fire Damper/Smoke Exhaust Damper Housings | Fire protection system components | DX51D+Z、SGCC | Indoor: ≥80g/m² (Z80) Outdoor / Damp: ≥120g/m² (Z120) |
Our Packaging
Why Choose Us?
As a professional galvanized steel coil manufacturer in China, we supply galvanized steel coils of various materials and standards, especially those for HVAC projects. We are highly specialized in this area.
If you have an HVAC installation project and need to purchase galvanized steel coils, please contact us. We will provide you with superior, high-quality galvanized steel coil products.
