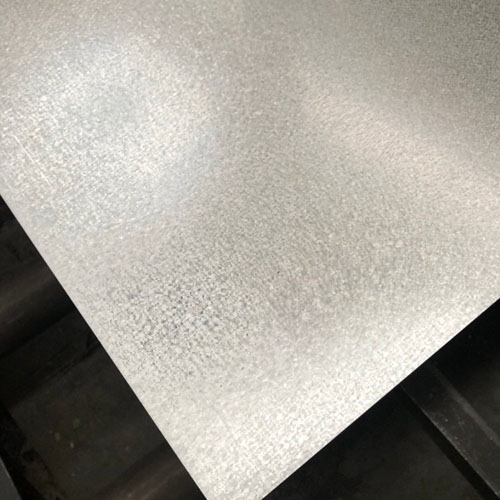

5mm Galvanised Steel
5mm galvanized steel is a thick plate with a bright galvanized luster. At Wanzhi Steel, we not only supply galvanized steel products with stable performance and uniform zinc layer, but also provide you with slitting, cutting, punching and other processing services.
Width: 50mm – 2000mm
Length: Determined according to customer needs and weight restrictions
Galvanized coating: Z30-300g/㎡
Ensure product quality and transportation
In addition to strong corrosion resistance, 5mm galvanized steel also has high strength and structural stability, and its cost is much lower than stainless steel. It is a low-cost alternative to stainless steel products. 5mm galvanized steel is a combination of “steel strength + galvanized protection” with a service life of more than 25 years.
Specification

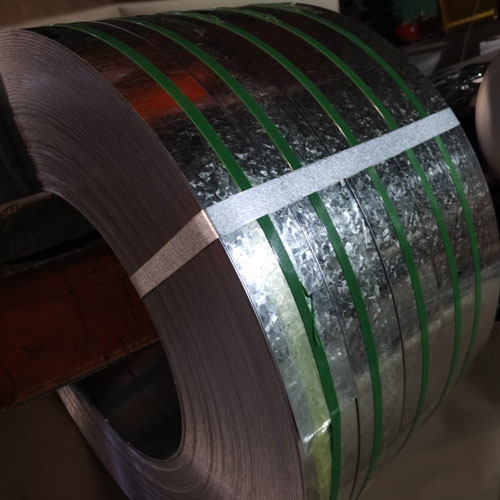

| Product Name | 5mm Galvanised Steel Coil/Sheet/Strip |
| Width | 50mm – 2000mm |
| Length | Determined according to customer needs and weight restrictions |
| Thickness | 5mm |
| Galvanized coating | Z30 – 275g/㎡ |
| Spangle Type | Zero spangle, small spangle, regular spangle, large spangle |
| Material | SPCC/SGCC/SGCH/DX51D/DX52D/DX53D/G350/G450/G550/Q195/Q235/A653 |
| Standard | JIS,EN,GB,ASTM |
| Surface treatment | Oiling, passivation, lamination, embossing, etc. |
| Processing service | Slitting, cutting, bending, punching, roll forming, welding, etc. |
| MOQ | 10 tons |
| Packaging | Standard export package or as per your requirements |
Applications of 5mm Galvanized Steel
- Construction field: used for weighing structures (beams, columns, etc.) in factories, warehouses, stadiums, etc.
- Transportation field: 5mm thick plates are used for beam reinforcement plates, bumper brackets, and bottom guard plates of subway/train carriages of trucks/buses.
- Agriculture field: 5mm galvanized steel is commonly used in greenhouse frames (galvanized steel pipes or profiles), granaries and feed troughs, agricultural machinery, and animal fences.

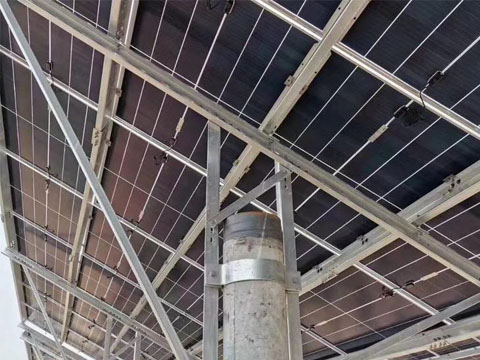

- Energy field: transmission towers, substation brackets, cable bridges, photovoltaic brackets, solar brackets, substation boxes, distribution cabinets, etc.

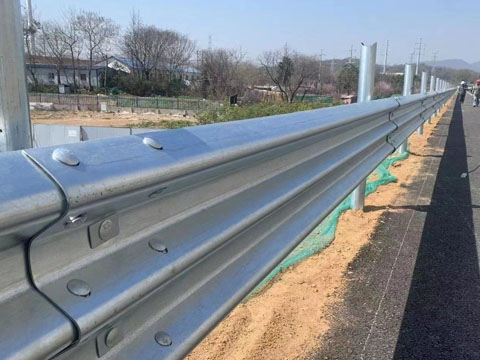

- Other applications: Highway guardrails, sidewalk brackets, street lamp posts, fences, gates, furniture, etc.
How many sheets of 5mm galvanized steel are in 1 ton?
Weight per square meter of 5mm galvanized steel = 5 x 7.85 x 1 x 1 = 39.25kg
Common Sizes How many sheets are there in 1 ton?
- The weight of 5mm galvanized steel per square meter is 39.25kg, there are 25 sheets of 1000mm x 1000mm in 1 ton.
- The weight of 1219mm×2438mm (4ft×8ft) is about 116.6kg, and there are 9 sheets in 1 ton
- The weight of 1000mm×2000mm is about 78.5kg, and there are 13 sheets in 1 ton
- The weight of 1500mm×3000mm is about 176.625kg, and there are 6 sheets in 1 ton
5mm Galvanized Steel Price
The cost of galvanized steel, such as the cost of raw materials, substrate, surface type, thickness of zinc layer, specifications, packaging, market supply and demand, etc., will vary. The price of 1 ton is about US$600-900. For accurate price information, you can contact us to confirm.
Why Choose Us?
With more than 17 years of manufacturing experience and 14 years of exporting experience in the field of metal coated steel, our group enjoys worldwide reputation and is one of the most reliable metal coated steel suppliers in China for the following reasons:
- High product quality: high quality raw materials are used, and advanced production process results in high product quality.
- Wide range of products: the products include galvanized steel coils, plates, strips, tubes, profiles, corrugated steel sheets and so on.
- Strict inspection process: the inspection includes various aspects such as zinc layer, specification, corrosion resistance, etc., and supports third-party inspection.
- Experienced in the industry: more than ten years of deep plowing in the industry, rich knowledge of the steel industry, can provide customers with professional advice to help customers in the choice of products and various needs to provide valuable help.
