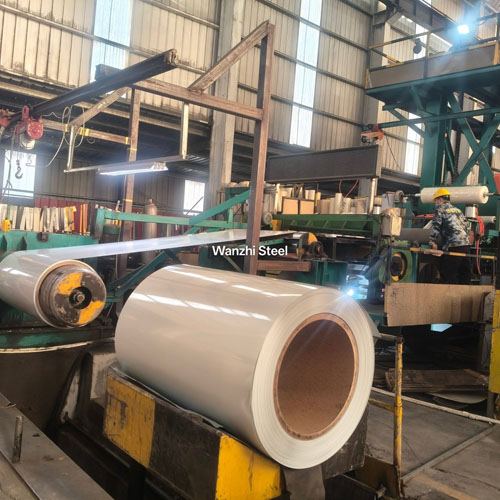

0.3mm Pre-painted Steel Coil
We are a manufacturer specializing in pre-painted steel coils, with our own production lines. Our 0.3mm-thick pre-painted steel coils are highly popular in the international market, offering four key advantages: lightweight and easy to process, high corrosion resistance, strong decorative appeal, and cost-effectiveness.
Ensure product quality and transportation
0.3mm pre-painted steel coils are highly popular in Myanmar, the Philippines, Africa, and many other countries, as they are an economical, lightweight, and versatile pre-painted metal material.
In addition to the 0.3mm option, the pre-painted steel coils we supply range from a minimum thickness of 0.12mm to a maximum of 1.2mm. Colors are based on the RAL color chart, but we can also customize them according to your samples. If you have any requirements regarding pre-painted steel coils, please feel free to contact us at any time.
Specifications
| Product Name | 0.3mm Pre-painted Steel Coil |
| Thickness | 0.3mm |
| Width | 914, 1000mm, 1200mm, 1219, 1250mm, etc. (widths can be customized) |
| Substrate Type | Galvanized steel coil / Aluminized zinc steel coil / Aluminum coil |
| Substrate Material | DX51D, DX52D, DX53D, S250GD, S350GD, S550GD, SPCC, SGCC, A653, etc |
| Standard | GB, EN, JIS, ASTM, DIN |
| Coating Weight | Z30-Z275g/m², AZ30-AZ150g/m² |
| Paint Coating Type | PE, SMP, HDP, PVDF |
| Paint Coating Structure | 2/1 or 2/2 |
| Color | RAL color chart or customized according to samples |
| Paint Film Thickness | Common: 13/7, 15μm/5μm, 18μm/7μm, 20μm/8μm, 20/10, 25μm/10μm |
| Surface Type | Matte, glossy, frosted, wrinkled, orange peel texture, etc. |
| Inner Diameter | 508mm (20 inches) or 610mm (24 inches) |
| Coil Weight | 3 – 8 tons/coil |
| MOQ | 5 tons |
| Packaging | Standard export packaging (plastic film, moisture-proof paper, and galvanized iron sheet) |

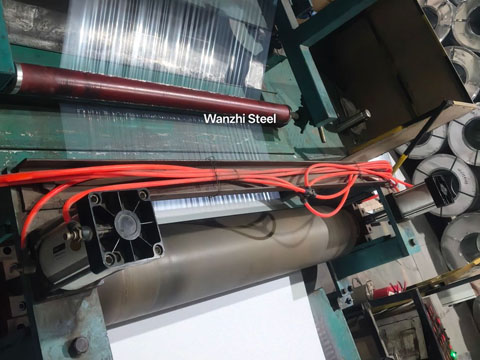

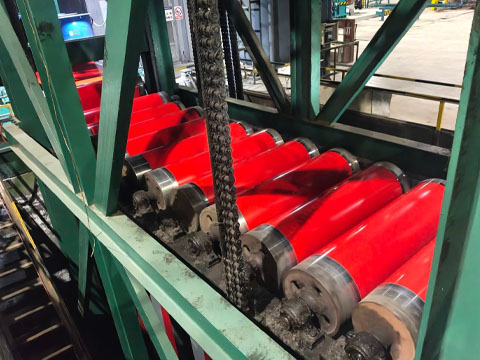

Pre-painted Steel Coil Production Video
Advantages of 0.3mm Pre-painted Steel Coils
- Lightweight and Easy to Process: With a thickness of 0.3mm, the material is lightweight (approximately 2.37 kg/m²), making it easy to bend, punch, cut, and roll-form. It is compatible with automated production lines, offering low energy consumption and high processing efficiency.
- High Corrosion Resistance: Dual protection provided by a galvanized/galvanized-aluminum substrate combined with an organic coating. GI substrates withstand salt spray testing for ≥500 hours, while GL substrates withstand ≥800 hours, ensuring a long outdoor service life (particularly with HDP and PVDF paint coatings).
- Highly decorative: Available in a wide range of colors (full RAL color spectrum) and gloss levels; surfaces can be finished with special treatments such as matte, wood grain, or stone texture. Replaces traditional spray painting, eliminating the need for secondary coating and shortening construction timelines.
0.3mm Pre-painted Steel Coils Applications
Construction Industry (Core Applications)

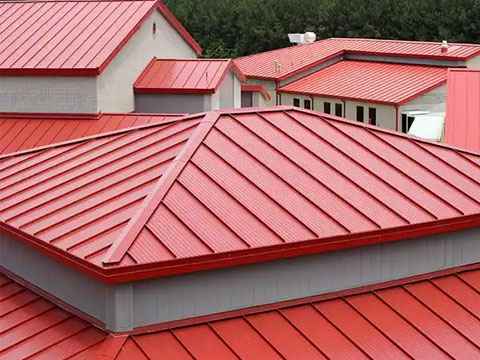

- Roofing / Wall Cladding: Color-coated steel roofing sheets and sandwich panel facings for light industrial buildings, warehouses, prefabricated structures, and residential buildings. The 0.3mm thickness is suitable for light roof loads and offers easy installation.
- Decorative Components: Ceilings, canopies, sunshades, door and window trim, and advertising hoardings. The material is thin and easy to shape, offering excellent decorative results.
- Cleanroom Engineering: Color-coated steel partitions for cleanrooms and operating rooms. The material is resistant to cleaning and corrosion and meets hygiene standards.
Home Appliance Industry

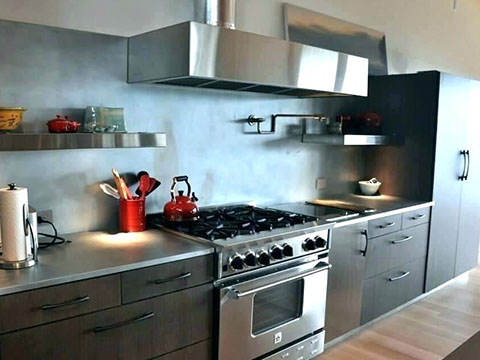

- White Goods Casing: Panels, side panels, and back panels for refrigerators, washing machines, air conditioners, and microwaves. The 0.3mm thickness supports lightweight appliance design, with customizable colors (primarily white, gray, and silver).
- Small Appliance Casing: Casing for rice cookers, ovens, and water dispensers. Easy to stamp and form, with strong decorative appeal.
Other Applications
- Transportation: Interior and exterior panels for RVs, shipping containers, and refrigerated trucks—lightweight and space-saving, enhancing transport efficiency.
- Electrical Equipment: Enclosures for control cabinets, distribution boxes, and instrument panels—corrosion-resistant, easy to process, and meeting protection rating standards.
- Furniture / Decoration: Lightweight metal furniture, cabinet panels, and interior decorative panels—replacing wooden materials with moisture-resistant, termite-resistant, and easy-to-clean properties.
What to Consider When Purchasing
- Limited Strength: The tensile strength of 0.3mm substrates ranges from 300 to 450 MPa. They are not suitable for load-bearing, high-pressure, or heavy-load applications with large spans, and are only suitable for lightweight cladding, decorative, and non-load-bearing structures.
- Low Impact Resistance: The impact resistance of thin substrates with coatings is lower than that of thicker specifications. They are prone to dents and paint chipping from impacts with hard objects, so rough handling during transportation and installation must be avoided.
- Purchasing Tips: Clearly define the application environment, pay attention to coating weight, check coating adhesion, and verify color consistency across batches.
Why Choose Us?
We are a professional manufacturer of pre-painted steel coils, offering a comprehensive range of products including PPGI, PPGL, and PPAL. Our products come in a wide variety of specifications and comply with international standards. With over 15 years of experience in production and export, we have successfully exported our products to more than 120 countries. If you have any needs for pre-painted steel coils, please feel free to contact us.
