Wood Grain Steel

Our wood grain steel patterns are rich, with clear textures, strong three-dimensional effects, and excellent simulation effects. They also have excellent corrosion resistance, weather resistance, and a long service life. If you have a project that requires wood grain steel, please feel free to contact us.

Thickness: 0.12mm -1.5 mm
Width: 20mm – 1500 mm
Substrate: CRC, GI, GL

Ensure product quality and transportation

    Our wood grain steel coils are printed steel coils made from cold-rolled steel, galvanized steel, or galvanized aluminum-zinc steel as the base material. They combine the strength of metal with the aesthetic appeal of wood, making them highly durable and widely used across various industries.

    Specifications

    Product Name Wood Grain Steel Coil/Strip
    Thickness 0.12mm – 1.5mm
    Width 20mm – 1500mm
    Inner Diameter 508mm or 610mm
    Coil Weight 1 ton – 10 tons
    Substrates CRC,  GI,  GL
    Material SGCC, DX51D-DX53D, G350-G550, etc.
    Standards EN, ASTM, JIS, GB
    Coating Z30 – Z275g/㎡, AZ30 – AZ150g/㎡
    Paint Type PE, SMP, HDP, PVDF
    MOQ 5 tons
    Packaging Vertical or horizontal packaging, custom logos available.

    Wood Grain Steel Coil Production Process

    1. The substrate (cold-rolled steel/GI steel/GL steel) undergoes pretreatment processes such as cleaning, degreasing, and phosphating.
    2. One or multiple layers of organic coatings (PE/HDP/PVDF) are applied to the pretreated substrate.
    3. Using advanced printing technology, wood grain patterns are printed onto the colored coating, followed by high-temperature curing and cooling.
    4. Final inspection is conducted, including surface flatness, color difference, texture clarity, and adhesion, to ensure product quality.
    5. If strip or sheet materials are required, processing services such as slitting, cutting, and forming can be provided to obtain the desired product.

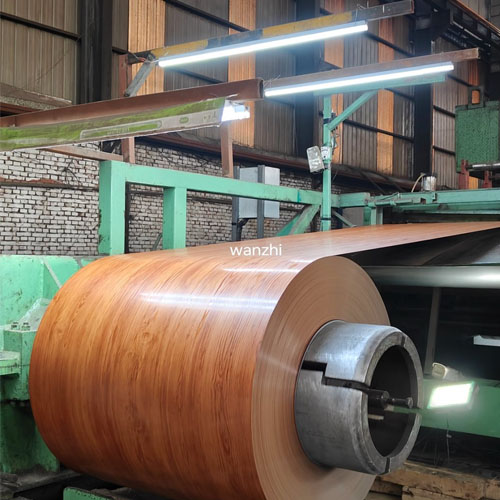

    Wood grain steel coil is being rolled
    Wood grain steel coil is being rolled

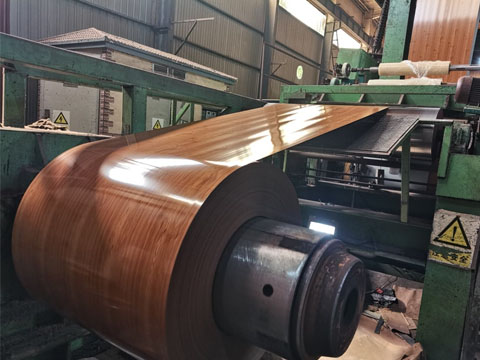

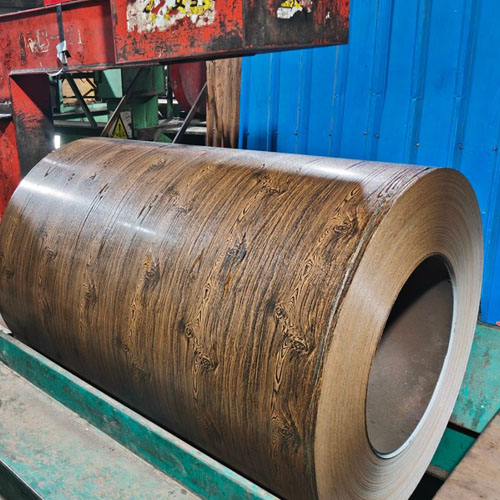

    Wood grain steel coils completed
    Wood grain steel coils completed

    What Wood Grain Steel Patterns Are Available?

    Our wood grain steel patterns include flat wood grain, 3D wood grain, oak, walnut, cherry, maple, and rosewood, with over 300 different color depths and textures. There’s sure to be one that suits you. Contact us to request a wood grain pattern. If you require customization, please send us a sample and we’ll create a custom wood grain pattern.

    Different wood grain patterns
    Different wood grain patterns`

    Advantages of Wood Grain Steel

    1. Aesthetics: The wood grain pattern is highly realistic, capable of mimicking various wood textures, combining metallic texture with natural beauty, and offering strong decorative appeal.
    2. Durability: It possesses the high strength and toughness of steel, resisting deformation and fracture; it is corrosion-resistant, termite-resistant, and has superior fire-resistant properties compared to traditional wood.
    3. Processability: It can be processed through flattening, slitting, stamping, and bending, adapting to different shape requirements, and is easy to install and construct.
    4. Cost-effectiveness: Lower cost than solid wood materials, with a longer overall service life and lower maintenance costs.
    Wood grain steel coil product details
    Wood grain steel coil product details

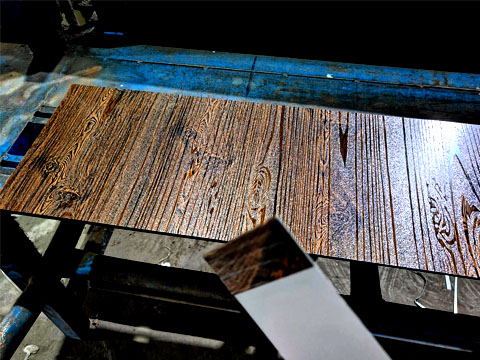

    Wood grain steel coil bending test
    Wood grain steel coil bending test

    Applications of Wood Grain Steel Coils

    • Architectural decoration: Exterior walls, grilles, interior walls, ceilings, partitions, door and window trim, railings, stair handrails, etc.
    • Furniture Manufacturing: Wardrobes, cabinets, tables and chairs, office furniture, etc.
    • Transportation: Subway/high-speed rail interiors, ship decorations, car interiors, etc.
    • Appliance Manufacturing: Outer shell decorations for refrigerators, washing machines, air conditioners, etc.
    • Other Applications: Wood-grain metal signs for stores, wall panels for expandable container houses, high-end gift boxes, electronic product packaging, etc.
    Wood grain wall cladding
    Wood grain wall cladding
    Wood grain steel application
    Wood grain steel application

    Why Choose Us?

    • The use of advanced production technology and high-quality raw materials ensures the product’s corrosion resistance, wear resistance, clear and durable wood grain patterns.
    • We offer over 300 wood grain patterns, with customizable colors and textures to meet diverse design needs.
    • We have our own testing center, rigorously inspecting appearance, performance (mechanical properties, corrosion resistance), adhesion, and more. We also support third-party testing.
    • With over 17 years of production experience and over 14 years of export experience, we have provided steel solutions to customers in over 120 countries.

    Wanzhi Steel is a professional manufacturer of color-coated steel coils. We hold multiple certifications, including ISO 9001, ISO 14001, and Trusted Supplier. Our two printed steel coil production lines offer high production capacity and fast delivery. We look forward to working with you!
