Galvalume Steel Strip
Wanzhi Steel has 1 galvalume steel production line and 2 coil slitting equipment, which can produce galvalume steel of different thicknesses and slitting galvalume steel strips of different widths, with precise size and sufficient inventory.
Thickness: 0.2mm – 3.0mm
Width: 10mm – 600mm
Alu-zinc coating: AZ30 – AZ150g/m²
Material: DX51D, DX52D, DX53D, DX54D, S250GD, S280GD, S320GD, S350GD, S550GD, etc.
tag: Steel Strip
Ensure product quality and transportation

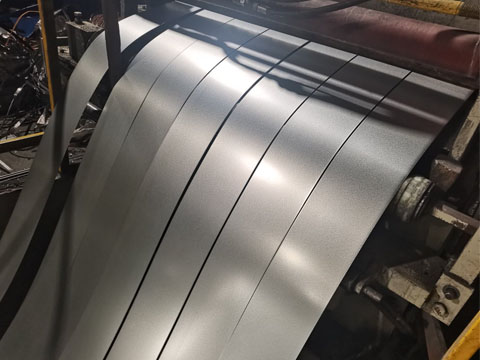

Galvalume Steel Strip is made by cutting galvalume steel coils through slitting equipment. It is a kind of coated steel with strong corrosion resistance and is widely used in many industries. As a professional GL steel supplier, we offer you high-quality galvalume steel strips in all specifications.
Production Video

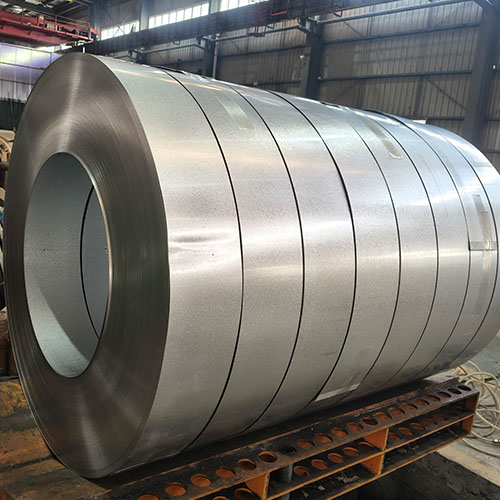

This is our recent purchase order for GL Steel Strip. The customer needs a width of 152mm and a roll diameter of 508mm.
Specification
| Product name | Galvalume Steel Strip |
| Thickness | 0.2mm – 3.0mm |
| Width | ＜600mm |
| Length | Cutting according to customer requirements |
| Aluminum zinc coating | AZ30 – AZ150g/m² |
| Material | DX51D, DX52D, DX53D, DX54D, S250GD, S280GD, S320GD, S350GD, S550GD, etc. |
| Standard | GB, JIS, EN, ASTM |
| Surface treatment | Oiling, passivation, fingerprint resistance, etc. |
| Processing service | Profiling, bending, punching, embossing, pre-painting, etc. |
| Organic coating | PE, SMP, HDP, PVDF |
| Loading Port | Tianjing, Qingdao, Shanghai or as required |
| Delivery Time | 10-20 working days after payment. |
| MOQ | 10 tons |
| Packaging | Standard export package or as per your requirements |
Advantages of Galvalume Steel Strip
- Excellent Corrosion Resistance: The aluminum (55%) and zinc (43.5%) in GL steel strip provide excellent corrosion protection, several times stronger than ordinary GI steel strip.
- Good High-Temperature Resistance: It has good heat resistance and oxidation resistance, maintaining structural stability even after long-term use in high-temperature environments.
- Good Processability: It has good ductility and a smooth surface, facilitating subsequent bending, stamping, forming, pre-painting, and other processing operations.
- High Surface Quality: The bright silver surface has a unique flaky crystalline texture, making it aesthetically pleasing and suitable for direct application to some product surfaces.
Galvalume Steel Strip Applications
- Used to manufacture various profiles.
- Ventilation ducts, drainage ducts, etc.
- As metal sheet for metal sandwich panels.
- Used for oven liner, air conditioner outdoor unit housing, refrigerator back panel, etc.
- Used as exhaust pipe guard, fuel tank, fender, exhaust pipe and other parts of automobiles.

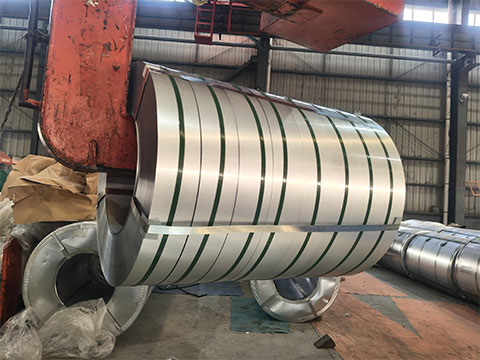

Packaging
Why Choose Us?
- We have passed ISO 9001, ISO 14001 and other certifications and are an honest supplier with more than 14 years of export experience.
- Both raw materials and finished products are strictly tested to ensure that the product quality meets the requirements.
- The product range is rich and the specifications are complete. The products meet ASTM, EN, DIN, JIS, GB and other standards.
Wanzhi Steel is a leading manufacturer of galvalume steel products in China. It has 1 galvalume steel production line, 2 coil slitting equipment, 4 leveling shearing equipment, and hundreds of metal profiling equipment. It can provide slitting, cutting, profiling and other services. Galvalume steel products include:
In addition to galvalume steel products, we also produce other types of metal coated steel. If you have any demand for metal coated steel products, please contact us for quotation.
You may be interested: GL Coil | Galvalume Roofing Sheet | Galvalume Steel Sheet
