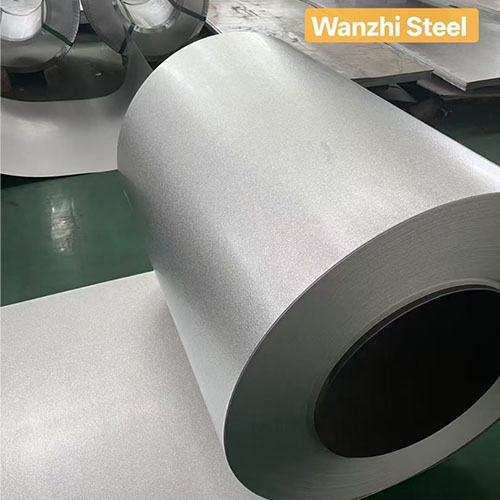

DX51d Z150 Galvanized Steel Coil/Sheet/Strip

DX51d Z150

DX51D Z150 is a commonly used galvanized steel. With its excellent corrosion resistance, appearance quality and good processing performance, it is used in many industries such as construction, home appliances, and automobiles.

Thickness: 0.12 – 5mm
Width: 600 – 1500mm
Product Type: Coil / Sheet / Strip / Corrugated Sheet / Pipe

Ensure product quality and transportation

DX51D Z150 Meaning

DX51D

DX51D complies with EN 10346, the European standard for continuous hot-dip galvanized steel products.

“D” indicates the drawing grade (suitable for deep drawing).
“X” indicates that the base steel is non-alloy steel.
“51” indicates the typical yield strength range (the specific value depends on the thickness).

Z150

“Z” stands for the zinc coating (hot-dip galvanizing).
“150” indicates that the total weight of the double-sided zinc coating per square meter is 150g, in g/m².

Specifications

Product name	DX51d Z150 Gi Steel
Thickness	0.12 – 5mm
Width	600 – 1500mm
Length	Customized (coil or sheet)
Zinc coating	150g/m²
Material	DX51D
Standard	EN 10346
Product Type	Coil / Sheet / Strip / Corrugated Sheet / Pipe
Surface type	Zero spangle, small spangle, regular spangle, large spangle
Surface treatment	Anti-fingerprint treatment, passivation, oiling, pre-painting, etc.
Processing service	Shearing, stamping, bending, welding, etc.
Delivery Time	10-30 working days after payment.
MOQ	10 tons
Packaging	Standard export package or as per your requirements

DX51D Z150 Main Features

The zinc layer thickness of 150g/m2 is moderate, balancing corrosion resistance and cost.
DX51D material has good cold molding performance, can be cut, stamping, bending, welding and other processing operations.
There are large spangle, regular spangle and zero spangle surfaces with smooth surface and good quality.

DX51D Z150 Galvanized Steel Application

Construction industry: light steel structure roof, wall, ventilation duct (air conditioning/exhaust), building bracket, purlin, etc.
Home appliance manufacturing: refrigerator/washing machine shell (subsequent spraying required), appliance internal bracket, chassis, etc.
Auto parts: car door inner panel, fuel tank guard plate, truck cargo box baffle, etc.
Other fields: electric control cabinet, server chassis, storage shelves, supermarket display racks, agricultural greenhouse skeleton, etc.

Our Certificates

Why Choose Us?

We have passed many certifications, including ISO 9001, ISO14001, honest supplier certification, etc.
With rich industry experience (17+ production experience and 14+ export experience), we can provide the best solution for your project.
In addition to DX51D+Z150, we have other standards and zinc layer thickness galvanized steel, with complete product specifications.

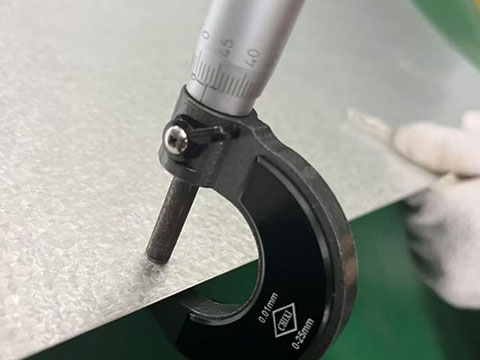

We have a strict testing process to test the performance, size and other aspects of the product.

Wanzhi Steel has two hot-dip galvanized steel production lines and one electro-galvanizing production line, with advanced production equipment and high product quality. In addition, we have a variety of processing equipment that can process a variety of galvanized steel products. Including:
