Section Steel Weight Calculation
H-Beam
- Parameters: Height, Width, Web Thickness, Flange Thickness
- Formula: Weight = [Web Thickness × (Height – 2 × Flange Thickness) + 2 × Width × Flange Thickness] × Density / 1000
I-Beam
- Parameters: Height, Width, Web Thickness, Flange Thickness
- Formula: Weight = [Web Thickness × (Height – 2 × Flange Thickness) + 2 × Width × Flange Thickness] × Density / 1000

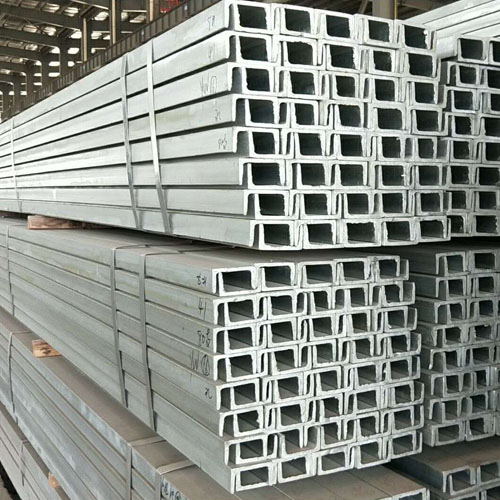

Channel Steel
Parameters: Height, Leg Width, Web Thickness, Flange Thickness
Formula: Weight = [Height × Web Thickness + 2 × Flange Thickness × (Leg Width – Flange Thickness)] × Density / 1000
Angle Steel
- Formula for equal-leg angles: Weight = (2 × Side Length × Thickness – Thickness²) × Density / 1000
- Formula for unequal-leg angles: Weight = (Long Side + Short Side – Thickness) × Thickness × Density / 1000
Notes:
- All dimensions are in millimeters (mm);
- Length is in meters (m);
- Density is in grams per cubic centimeter (g/cm³); the default value for steel is 7.85; stainless steelis 7.93;
- Thickness values must be less than the corresponding width/height values;
- All values must be positive;
- Results are rounded to two decimal places;
- Actual weight may vary by ±5%.
Section Steel Weight Calculator
Weight Per Meter:
0.00 kg/m
Total Weight:
0.00 kg
