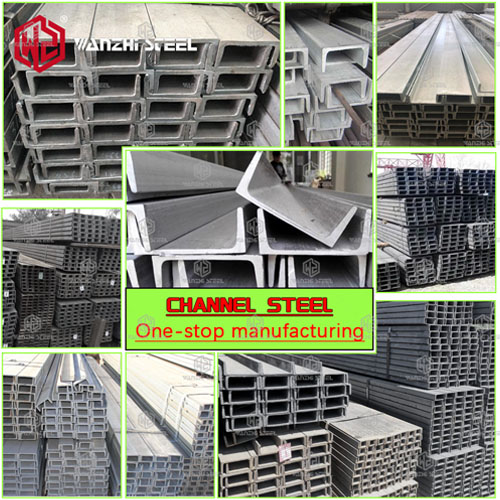

Channel Steel

Channel Steel Sizes

Model	Size				Theoretical Weight
	h	b	d	t
5	50	37	4.5	7	5.438
6.3	63	40	4.8	7.5	6.634
8	80	43	5	8	8.045
10	100	48	5.3	8.5	10.007
12.6	126	53	5.5	9	12.37
14a	140	58	6	9.5	14.535
14b	140	60	8	9.5	16.733
16a	160	63	6.5	10	17.24
16b	160	65	8.5	10	19.752
18a	180	68	7	10.5	20.174
18b	180	70	9	10.5	23
20a	200	73	7	11	22.637
20b	200	75	9	11	25.777
22a	220	77	7	11.5	24.999
22b	220	79	9	11.5	28.453
25a	250	78	7	12	27.41
25b	250	80	9	12	31.335
25c	250	82	11	12	35.26
28a	280	82	7.5	12.5	31.427
28b	280	84	9.9	12.5	35.823
28c	280	86	11.5	12.5	40.219
30a	300	85	7.5	13.5	34.463
30b	300	87	9.5	13.5	39.173
30c	300	89	11.5	13.5	43.883
32a	320	88	8	14	38.083
32b	320	90	10	14	43.107
32c	320	92	12	14	48.131
36a	360	96	9	16	47.814
36b	360	98	11	16	53.466
36c	360	100	13	16	59.118
40a	400	100	10.5	18	58.928
40b	400	102	12.5	18	65.204
40c	400	104	14.5	18	71.488

Channel Steel Features

Channel Steel Application

Construction Field

• Channel steel is often used to make building structure supports, such as brackets, beams, columns, etc.
• Channel steel is combined with other steel sections such as I-beams and angle steels to build a stable steel structure frame.
• Channel steel can also be used to make stair handrails, balcony railings, door and window frames, display racks, etc.

Machinery Manufacturing Field

• Channel steel can be used to manufacture machine tool beds, crane bridges, bases and other frame structures for various mechanical equipment.
• In conveying equipment such as belt conveyors and chain conveyors, channel steel is often used as a supporting structure for the conveyor frame.
• Some small channel steels can also be processed into mechanical parts such as mechanical guide rails and sliders.

Vehicle Manufacturing Field

• Channel steel can be used as longitudinal beams and cross beams for vehicle frames such as trucks and trailers.
• Channel steel is used to strengthen the frame and support structure of train and truck carriages.

Railway and Bridge Field

• In railway construction, channel steel can be used to make the sleeper support structure of the track.
• Channel steel can be used as the main structure and support structure of bridges such as longitudinal beams, cross beams, and railings.

Other applications

• Channel steel is used for the support structure of transmission towers; channel steel can also be used for equipment brackets and structural frames of substations.
• Channel steel can be used as the skeleton of greenhouses; channel steel can also be used to manufacture frames and support components of agricultural equipment.
• In the construction of ships, channel steel can be used to make ship deck skeletons, bulkhead structures, etc.
• Channel steel is often used in road engineering to make facilities such as guardrails, road signs, and traffic signal brackets.

Channel Steel Weight Calculation

Calculation formula

1. Simplified formula: W = 0.00785 x h x d + 0.00785 x 2t (b-d)

• W is the weight of the channel steel per meter (kg/m);
• h is the height of the channel steel (mm);
• b is the leg width of the channel steel (mm);
• d is the waist thickness of the channel steel (mm);
• t is the average leg thickness of the channel steel (mm).

2. Detailed formula: W=0.00785 × [hd+2t(b–d) + 0.349(R²–r²)]

The detailed formula has two more values ​​R and r than the simplified formula, where R represents the inner arc radius (mm); r represents the end arc radius (mm).

Theoretical weight table

Model	Theoretical weight	Model	Theoretical weight
5	5.438	25b	31.335
6.3	6.634	25c	35.26
6.5	6.709	28a	31.427
8	8.045	28b	35.823
10	10.007	28c	40.219
12	12.319	30a	34.463
14a	14.535	30b	39.173
14b	16.733	30c	43.883
16a	17.24	32a	38.083
16b	19.752	32b	43.107
18a	20.174	32c	48.131
18b	23	36a	47.814
20a	22.637	36b	53.466
20b	25.777	36c	59.118
22a	24.999	40a	58.928
22b	28.453	40b	65.204
25a	27.41	40c	71.488

Channel Steel Price

Prices vary depending on factors such as material, specification, production process, market supply and demand, regional differences, and surface treatment.

The current market prices of different types of channel steel are as follows:

Ordinary carbon structural steel channel steel price (Q235):

• Small channel steel (height <80mm): about 550-684 US dollars/ton.
• Medium channel steel (height 80-180mm): about 615-752 US dollars/ton.
• Large channel steel (height>180mm): about 684-821 US dollars/ton.

Low alloy high strength structural steel channel steel price (Q345):

• Small channel steel: about 684-821 US dollars/ton.
• Medium channel steel: about 752-889 US dollars/ton.
• Large channel steel: about 821-960 US dollars/ton.

Stainless steel channel steel price:

• 304 stainless steel channel steel: about 2736 – 3420 US dollars / ton.
• 316 stainless steel channel steel: about 4105 – 4790 USD/ton.

Hot-dip galvanized channel steel price:

• Ordinary carbon structural steel hot-dip galvanized channel steel: about 684 – 960 USD/ton
• Low alloy high strength structural steel hot dip galvanized channel steel: about 821 – 1095 USD/ton
