Galvanized Square Tube

Galvanized square Tube specifications

Product Name	Galvanized Square Tube
Material	Q195, Q215, Q235, etc
Shape	Round, Square, Rectangular.
Surface	Hot-dip galvanizing
Size	1/2–12 inch
Wall Thickness	0.5–10 mm
Length	6m / 12m or as required
Zinc Coating	30 – 275g/㎡
Processing Service	Welding, punching, cutting, bending, etc.
Packing	Standard export packing or as required

Application of Galvanized square Tube

In addition to the above applications, galvanized steel tubes can also be used in furniture manufacturing, such as metal table and chair frames, storage racks; in the field of power communications, they are used for telegraph tower support structures and communication base station brackets.

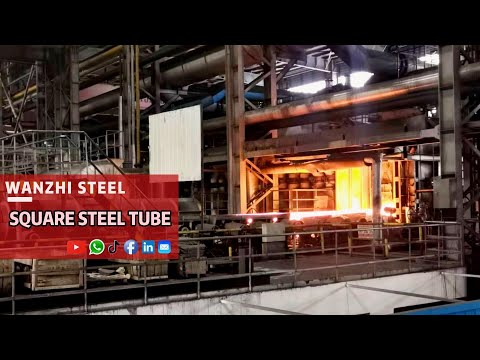

Galvanized square Tube Manufacturing Process

1. Selection and processing of raw materials

• Raw material selection: Select high-quality low-carbon steel or alloy steel as raw materials.
• Pretreatment: Cut, grind, clean and other pretreatments of raw materials to ensure a smooth and clean surface.

2. Forming process

• Cutting: Cut the steel into the required size.
• Rolling: Roll the cut steel into a square tube shape through a rolling machine.
• Welding: Use resistance welding, submerged arc welding and other welding technologies to weld the formed square tube.

3. Galvanizing treatment

• Cleaning: In order to improve the adhesion of the zinc layer, remove impurities such as oil and welding slag on the surface of the square tube before galvanizing.
• Galvanizing: Use hot-dip galvanizing or cold-dip galvanizing process to immerse the square tube in molten zinc liquid or a solution containing zinc for galvanizing.
• Cooling and passivation: After galvanizing, the square tube is cooled and passivated to improve the stability and corrosion resistance of the galvanized layer.

4. Surface treatment and inspection

• Surface treatment: straighten, cut, and polish the cooled square tube to ensure dimensional accuracy and surface quality.
• Inspection: perform the final inspection on the square tube, including appearance quality, size, mechanical properties, chemical composition, etc.

Galvanized Square Tube Weight Calculation Formula

W = 4 x (A – T) x T x L x 0.00785

• W represents the weight of the galvanized square tube, usually in kilograms (kg);
• A represents the outer length of the galvanized square tube, in millimeters (mm);
• T represents the wall thickness of the galvanized square tube, in millimeters (mm);
• L represents the lenL represents the length of the galvanized square tube, in meters (m).

For example, the outer length of the galvanized square tube is A=40mm, the wall thickness is T=2.5mm, the length is L=4m, and the weight (kg) = 4 x (40-2.5)x2.5x4x0.00785=11.775kg

Theoretical weight table

Product Model（mm）	Wall Thickness(mm)	Length(m)	Theoretical Weight（kg)
20×20	1.2	1	0.75
25×25	1.2	1	0.94
40×40	2	1	2.29
40×40	2.5	1	3.02
40×40	4	1	4.68
50×50	2.5	1	3.81
50×50	3	1	4.44
50×50	4	1	5.74
60×60	2.5	1	4.52
60×60	3	1	5.38
60×60	4	1	7.02
70×70	4	1	8.22
70×70	5	1	10.29
80×80	4	1	9.96
80×80	6	1	13.85
100×100	4	1	11.65
100×100	8	1	23
120×120	4	1	14.16
160×160	4.5	1	19.2

Quality identification of galvanized square Tube

1. Appearance inspection

• Whether the surface galvanized layer is uniform and continuous.
• Whether the surface is smooth and flat.
• The color is uniform and silvery white.

2. Size and specification measurement

• Wall thickness measurement
• Outer diameter and ovality measurement
• Length measurement

3. Performance testing

• Professional testing equipment analyzes the chemical composition of galvanized square tubes.
• Mechanical performance tests such as bending, impact and tensile tests are performed on galvanized square tTubeubes.
• The adhesion of the zinc layer is tested by bending test, scratch test and other methods.
• The corrosion resistance of galvanized square tubes is tested by salt spray test.

Wanzhi Steel will conduct a comprehensive inspection of the products before they leave the factory to ensure product quality. If you need third-party inspection, we also fully support it.

GI square Tube price

Affected by factors such as raw materials, galvanizing process, specifications, and quality grades, the price of galvanized square tubes in China is approximately between US$450-900 per ton.

We provide you with the best price while ensuring quality; for large-volume orders, the discount is even greater. Leave a message to purchase.

Why Choose Us

• Experienced: Our company has passed ISO 9001:2015 certification, more than 13 years of export experience, and serves more than 120 countries.
• High product quality: We have professional testing equipment and testing personnel, and our products are strictly tested before leaving the factory.
• Complete specifications: We have galvanized square tubes of various specifications, and can provide cutting, bending, welding and other processing services.
• Competitive price: Under the premise of ensuring quality, we provide you with the best price, and for large-volume orders, the price discount is greater.
• Perfect service: With English, Russian and Spanish customer service, we provide you with high-quality services and perfectly solve your pre-sales and after-sales problems.

Wanzhi Steel is a leading galvanized tube manufacturer and wholesale supplier in China, can provide you with various specifications of galvanized square tubes, and provide free samples, the products can meet your various needs, please contact us for details.
