Galvanized Oval Pipe

Galvanized Oval Pipe Specifications

Product Name	Galvanized Oval Pipe
Major axis	20mm – 200mm
Minor axis	10mm-150mm
Wall thickness	0.8 – 10mm
Length	6m
Material	Q195, Q235, Q345B, etc
Surface Treatment	Hot-dip galvanizing, Electrogalvanizing
MOQ	10 tons

Common Sizes

Major axis*minor axis	Common thickness
20×10	0.8, 1.0, 1.2
25×13	0.9, 1.0, 1.2
30×15	1.0, 1.2, 1.5
40×20	1.0, 1.2, 1.5, 1.8
50×25	1.2, 1.5, 2.0
60×30	1.5, 1.8, 2.0, 2.5
70×35	1.5, 2.0, 2.5
80×40	1.8, 2.0, 2.5, 3.0
100×50	2.0, 2.5, 3.0
120×60	2.5, 3.0, 4.0

Weight Calculation Formula

Weight per meter (kg/m) = [ (major axis + minor axis) × 2 ÷ 3.14 – wall thickness] × wall thickness × 0.02466

Common Specifications Weight Table

Specifications	Theoretical Weight per Meter (kg/m)	Weight per 6 Meters (kg)	Approximate Number of Counts per Ton (Counts/Ton)
30×15×1.0	0.669	4.014	Approximately 249
30×15×1.2	0.794	4.764	Approximately 210
40×20×1.2	1.086	6.516	Approximately 153
40×20×1.5	1.358	8.148	Approximately 123
50×25×1.5	1.722	10.332	Approximately 97
50×25×2.0	2.243	13.458	Approximately 74
60×30×1.5	2.086	12.516	Approximately 80
60×30×2.0	2.743	16.458	Approximately 61
80×40×2.0	3.743	22.458	Approximately 45
80×40×2.5	4.609	27.654	Approximately 36

Galvanized Oval Pipe Advantages

1. It offers a strong structural design and high load-bearing capacity; it also exhibits excellent toughness, is more impact-resistant, and is less prone to cracking.
2. The zinc coating provides excellent corrosion resistance and durability.
3. Compared to stainless steel, it is relatively low-cost, more corrosion-resistant than ordinary steel pipe, and easier to install.

Galvanized Oval Pipe Core Applications

• Outdoor Protection and Fencing: Balcony guardrails, stair railings, garden fencing, and playground and sports field isolation frames.

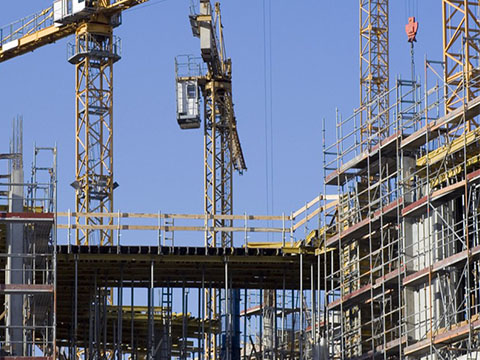

• Architectural and Municipal: Road barriers, sidewalk guardrails, lightweight steel villa roof supports, and decorative structures in shopping malls and exhibition halls.
• Furniture: Outdoor tables and chairs, tables, sofa frames, bed frames, and display shelves.

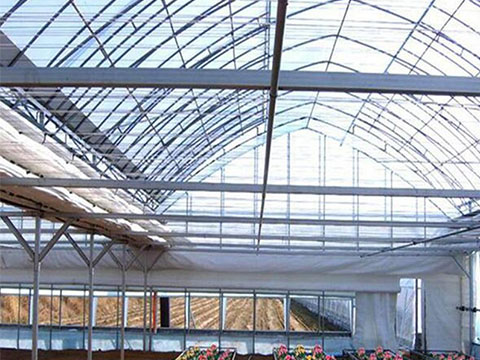

• Agriculture and Vehicle Structures: Arched frames for agricultural greenhouses, luggage racks and handrails in automobiles, and support structures for small equipment.

Galvanized Oval Pipe Price

The price of galvanized oval pipe varies depending on factors such as raw material cost, production process, specifications, and market supply and demand. The price per ton ranges from approximately US$600 to US$850. Please contact us for exact pricing.
