Black Annealed Wire

Black Annealed Wire Specifications

Product Name	Black Annealed Wire
Wire Diameter	0.8mm – 6mm
Length	50m/roll, 100m/roll, 200m/roll, 2000m-5000m/roll, or Customized
Material	Q195、Q215、Q235、SPHC、SAE 1008/1010
Standard	GB, JIS, ASTM
Tensile Strength	350-550MPa
MOQ	5 tons
Packing	Standard export packing or as required

Chemical Composition

C	Mn	Si	S	P
0.06% – 0.22%	0.25% – 0.70%	≤ 0.30%	≤0.045%	≤0.045%

Wire Gauge

Wire Gauge	SWG in mm	BWG in mm	Metric mm
8#	4.06	4.19	4
9#	3.66	3.76
10#	3.25	3.4	3.5
11#	2.95	3.05	3
12#	2.64	2.77	2.8
13#	2.34	2.41	2.5
14#	2.03	2.11
15#	1.83	1.83	1.8
16#	1.63	1.65	1.65
17#	1.42	1.47	1.4
18#	1.22	1.25	1.2
19#	1.02	1.07	1
20#	0.91	0.89	0.9
21#	0.81	0.813	0.8
22#	0.71	0.711	0.7

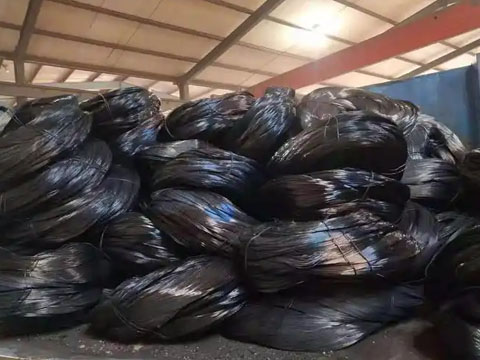

Black Annealed Wire Production Process

The production process for black annealed wire uses low-carbon steel wire as the core raw material. The main steps are as follows:

1. First, high-quality low-carbon steel wire with a carbon content of 0.06%-0.22% is selected as the base material, and surface impurities and oxide scale are removed.
2. The treated wire is then placed in an annealing furnace, where it is held at 600-900°C in a protective atmosphere or air for a period of time. Internal stresses are then eliminated through slow cooling;
3. Finally, light drawing or direct coiling results in a black annealed wire with a uniform black oxide film on the surface, which is both flexible and malleable. No complex plating or coating is required, simplifying the process and controlling costs.

Black Annealed Wire Advantages

Black Annealed Wire Applications

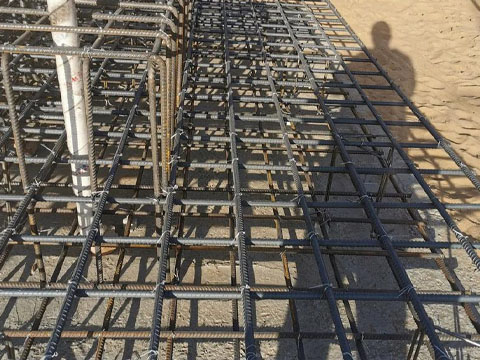

• Construction: Rebar bundling, scaffolding protection, and wall reinforcement.
• Agriculture and Horticulture: Crop support, garden fencing, and post-sowing mulch film.

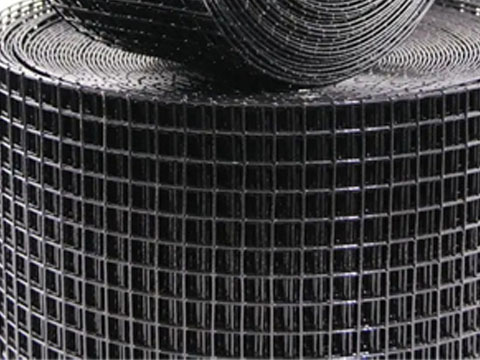

• Industrial Manufacturing: Welded and crimped wire mesh production; clothes hanger welding; mine support systems.
• Other Applications: Crafts, temporary anchoring, pet fencing, and product bundling.

Related Products

Why Choose Us

• High Product Quality: Using high-quality low-carbon steel and advanced production processes, each coil of wire meets specified flexibility and strength standards, and features a uniform oxide film.
• Complete Range of Specifications: We offer a full range of wire diameters from 0.8mm to 6mm, with custom lengths available to meet diverse customer needs.
• Professional Service: Our dedicated customer service staff is available 24/7 to provide expert selection advice and answer any questions.
• Experience: We are an ISO 9001 and ISO 14001 certified company with over 14 years of manufacturing and exporting experience.
